Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the endgate strikers and shims to the locations marks.
  2. Install the screws to the endgate strikers.

    Tighten the endgate strikers to 25 N.m (18 lb ft).

  3. Close the endgate and inspect for proper fit and operation.
  4. Adjust the endgate, if required. Refer to HINGE REPLACEMENT - END GATE  .

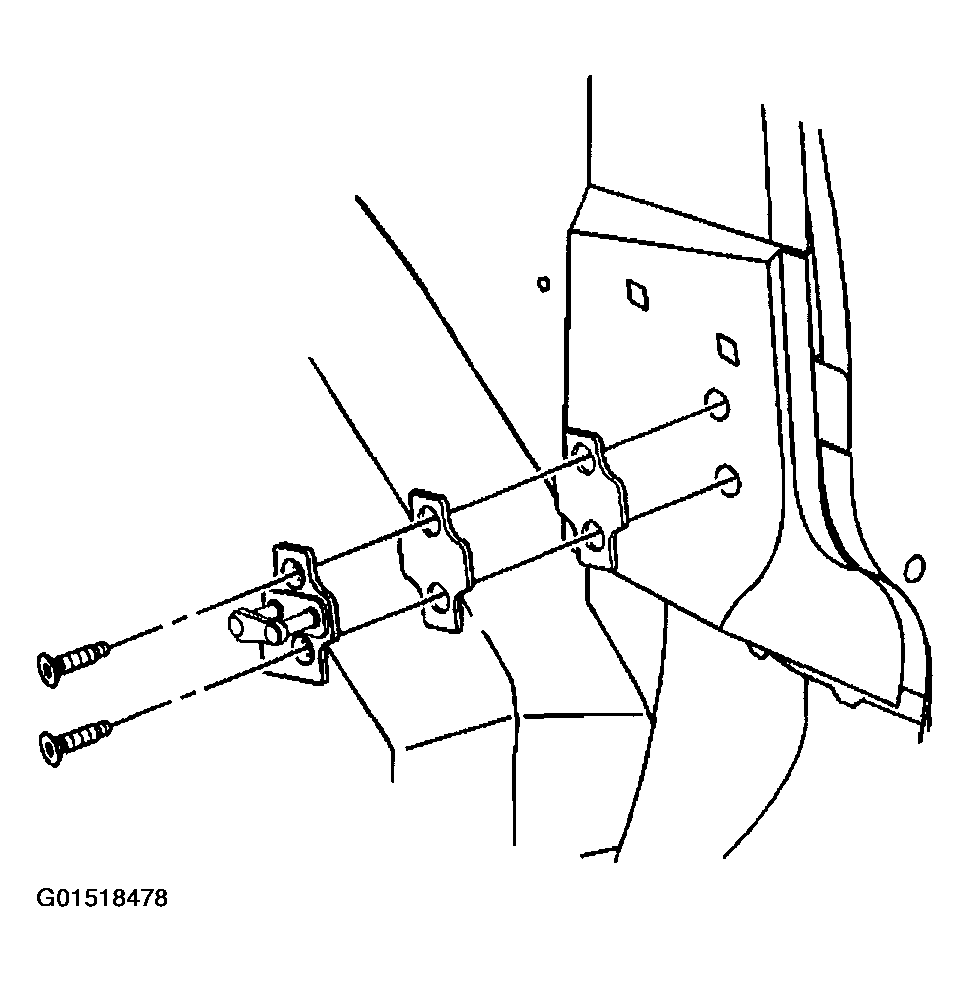

    Fig 1: Installing Procedure Of Lock Striker Replacement - End Gate
    G01518478Courtesy of GENERAL MOTORS CORP.
