Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  .
  3. Remove the endgate water deflector. Refer to WATER DEFLECTOR REPLACEMENT - END GATE  .
  4. Disconnect the electrical connector from the endgate lock cylinder.
  5. Disconnect the endgate lock cylinder wiring harness from the endgate inner panel.

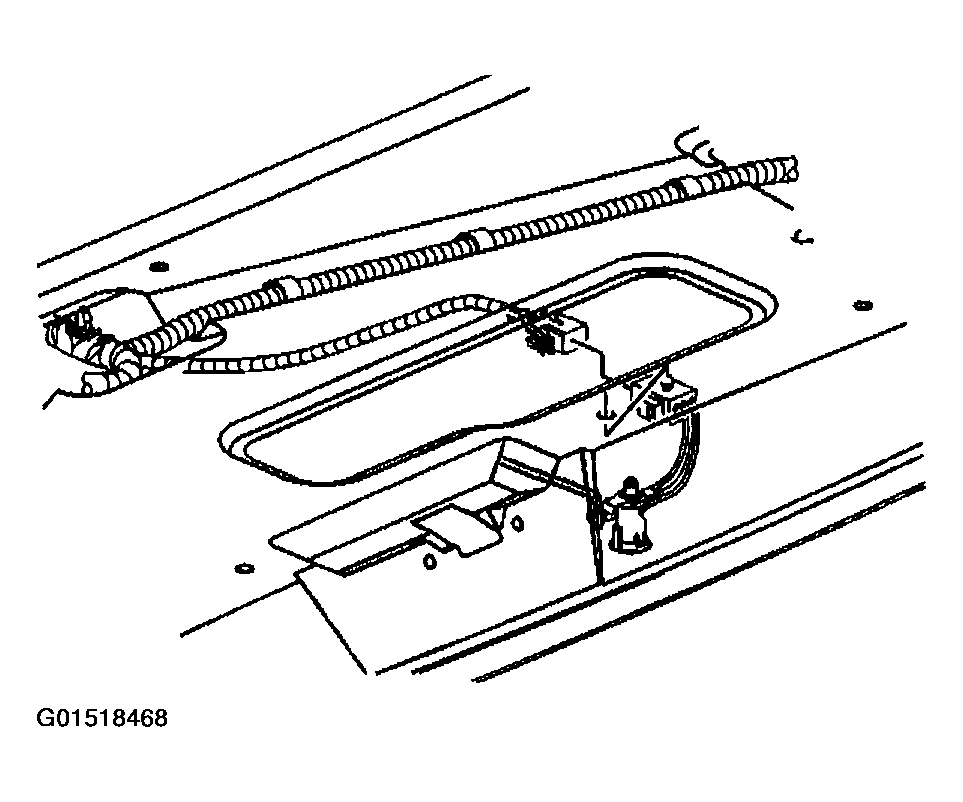

    Fig 1: Disconnecting Electrical Connector From Endgate Lock Cylinder
    G01518468Courtesy of GENERAL MOTORS CORP.
  6. Remove the endgate lock cylinder retainer from the lock cylinder.
  7. Remove the endgate lock cylinder from the endgate.
    Fig 2: Removing Endgate Lock Cylinder From Endgate
    G01518469Courtesy of GENERAL MOTORS CORP.
