Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the lower liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE (AZTEK)  or TRIM PANEL REPLACEMENT - LIFT GATE (RENDEZVOUS)  .
  3. Remove the bolts from the liftgate strikers.

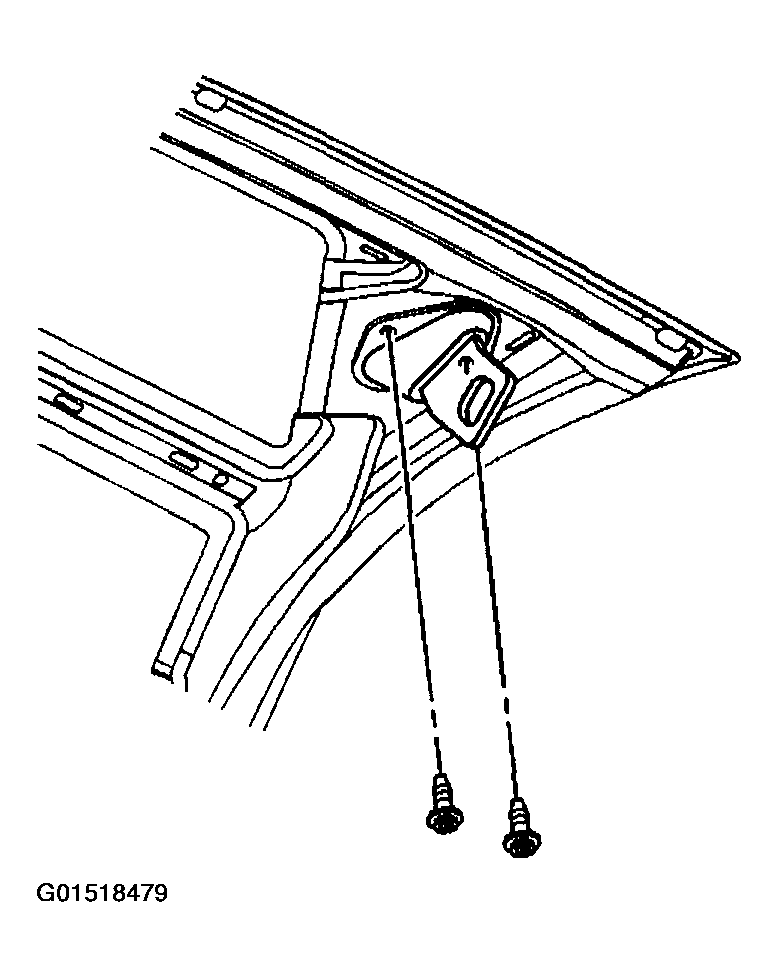

    Fig 1: Removing Bolts From Liftgate Strikers
    G01518479Courtesy of GENERAL MOTORS CORP.
  4. Remove the liftgate strikers from the liftgate.

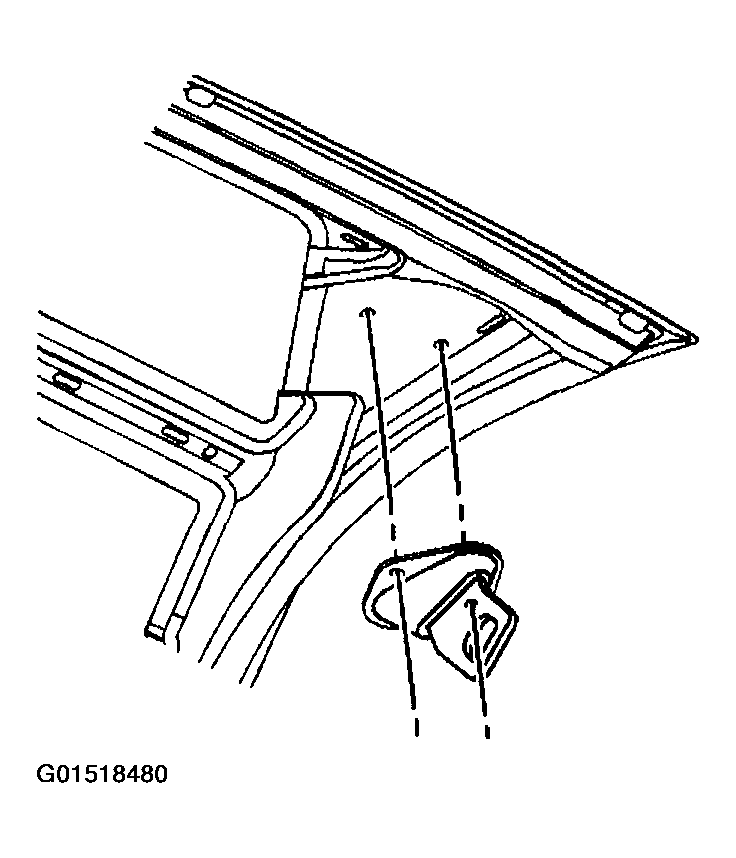

    Fig 2: Removing Liftgate Strikers From Liftgate
    G01518480Courtesy of GENERAL MOTORS CORP.
