Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate strikers to the liftgate.

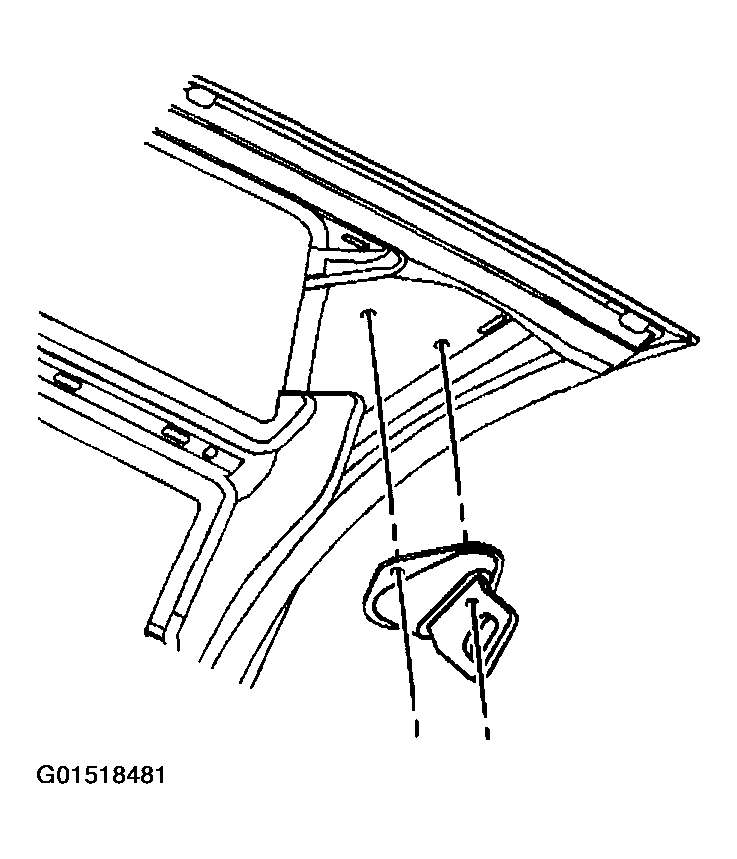

    Fig 1: Installing Liftgate Strikers To Liftgate
    G01518481Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the liftgate strikers.

    Tighten the liftgate striker bolts to 10 N.m (89 lb in)

  3. Install the lower liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE (AZTEK)  or TRIM PANEL REPLACEMENT - LIFT GATE (RENDEZVOUS)  .
  4. Close the liftgate.

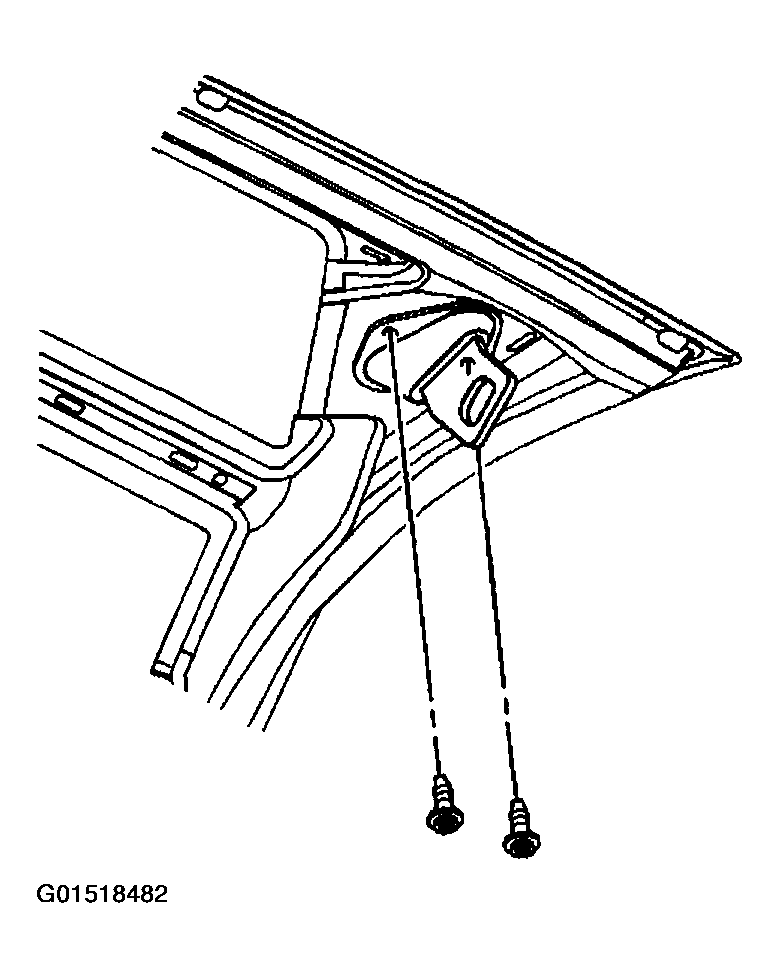

    Fig 2: Installing Bolts To Liftgate Strikers
    G01518482Courtesy of GENERAL MOTORS CORP.
