Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the endgate.
Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
Disconnect the electrical connectors from the liftgate latches.

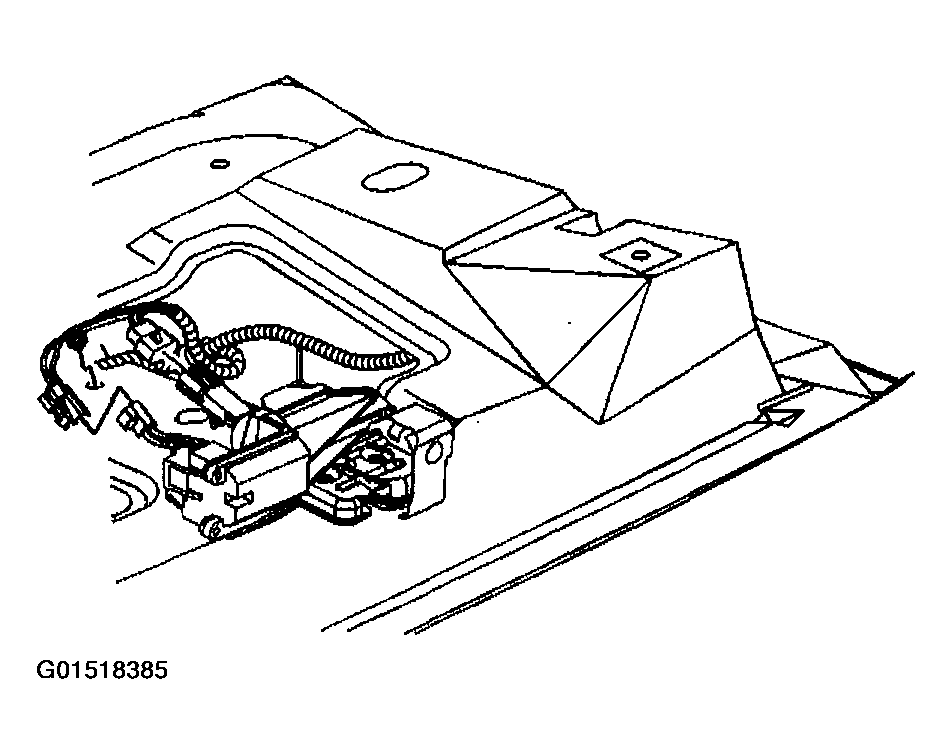

Fig 1: Disconnecting Electrical Connectors From Liftgate Latches
Courtesy of GENERAL MOTORS CORP.
Remove the bolts from the liftgate latches.

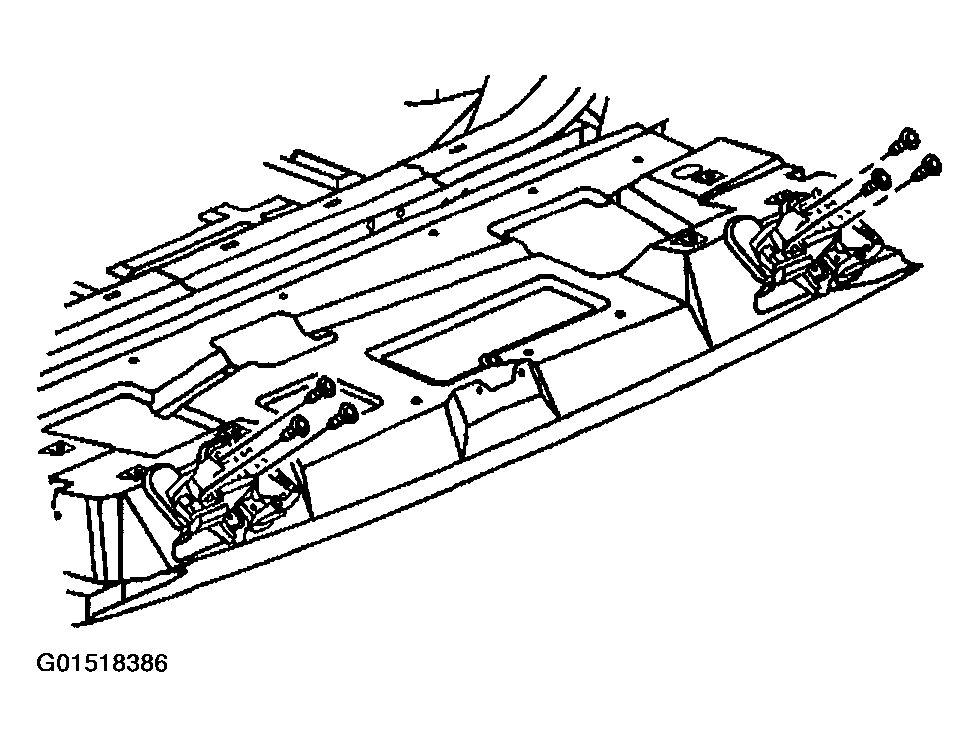

Fig 2: Removing Bolts From Liftgate Latches
Courtesy of GENERAL MOTORS CORP.
Remove the liftgate latches from the endgate.

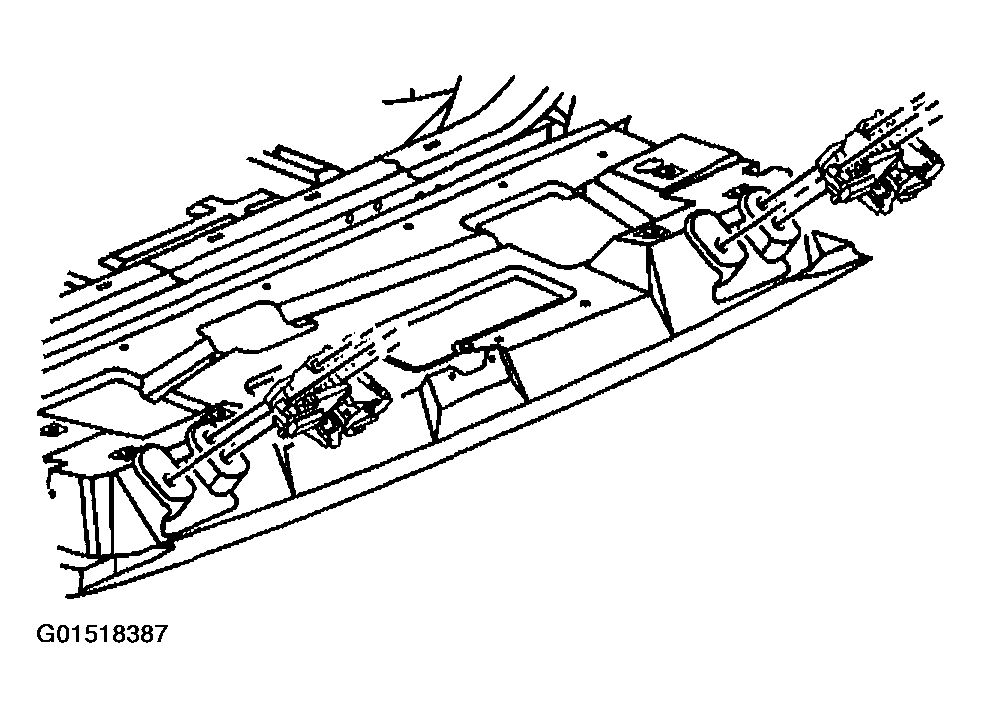

Fig 3: Removing Liftgate Latches From Endgate
Courtesy of GENERAL MOTORS CORP.
