Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate. Refer to LIFT GATE REPLACEMENT (RENDEZVOUS)  or LIFT GATE REPLACEMENT (AZTEK)  .
  2. Mark the location of the liftgate hinges with a grease pencil.
  3. Remove the nuts from the lifgtate hinges.

    Important:  Mark the location of the shims right and/or left for reinstallation.

  4. Remove the liftgate hinges with the shims and seals from the vehicle.

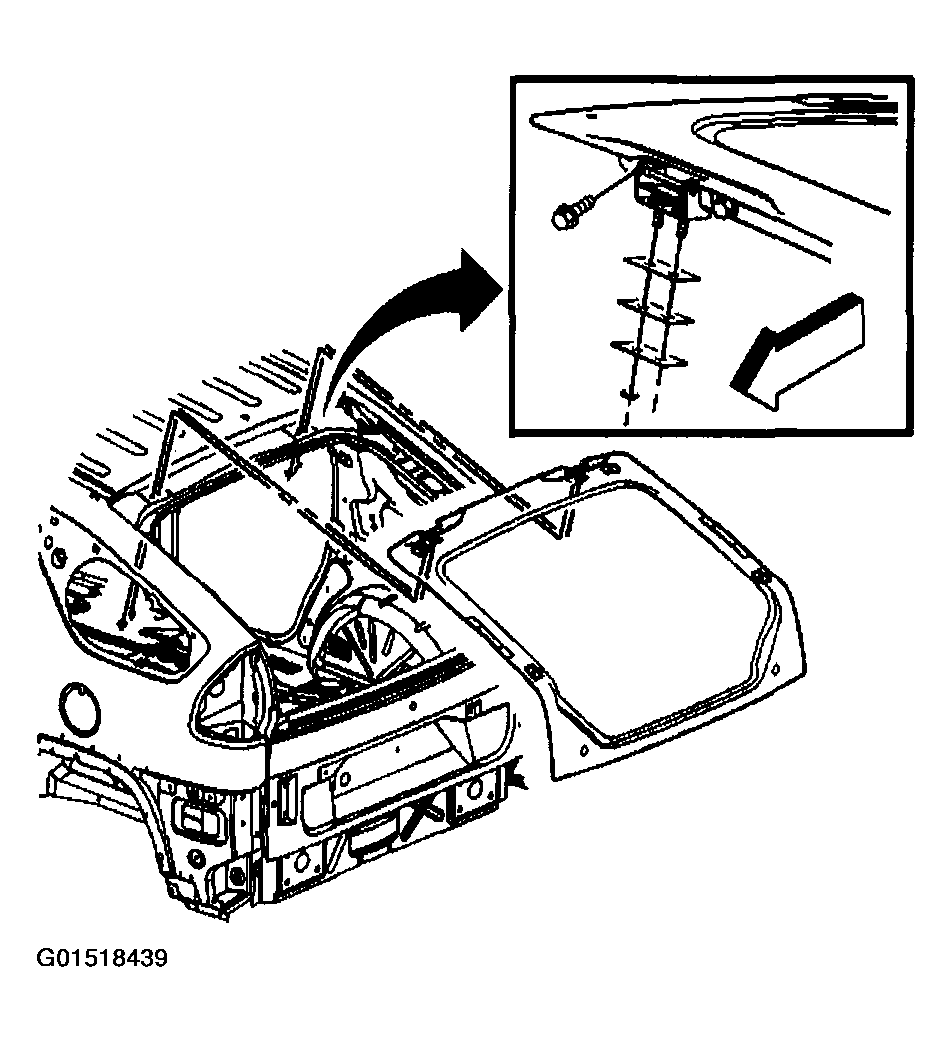

    Fig 1: Removing Procedure Hinge Replacement - Lift Gate (Aztec)
    G01518439Courtesy of GENERAL MOTORS CORP.
