Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate handle to the endgate handle assembly.
  2. Install the bolts to the endgate handle.

    Tighten the endgate handle bolts to 10 N.m (89 lb in).

  3. Close the endgate.

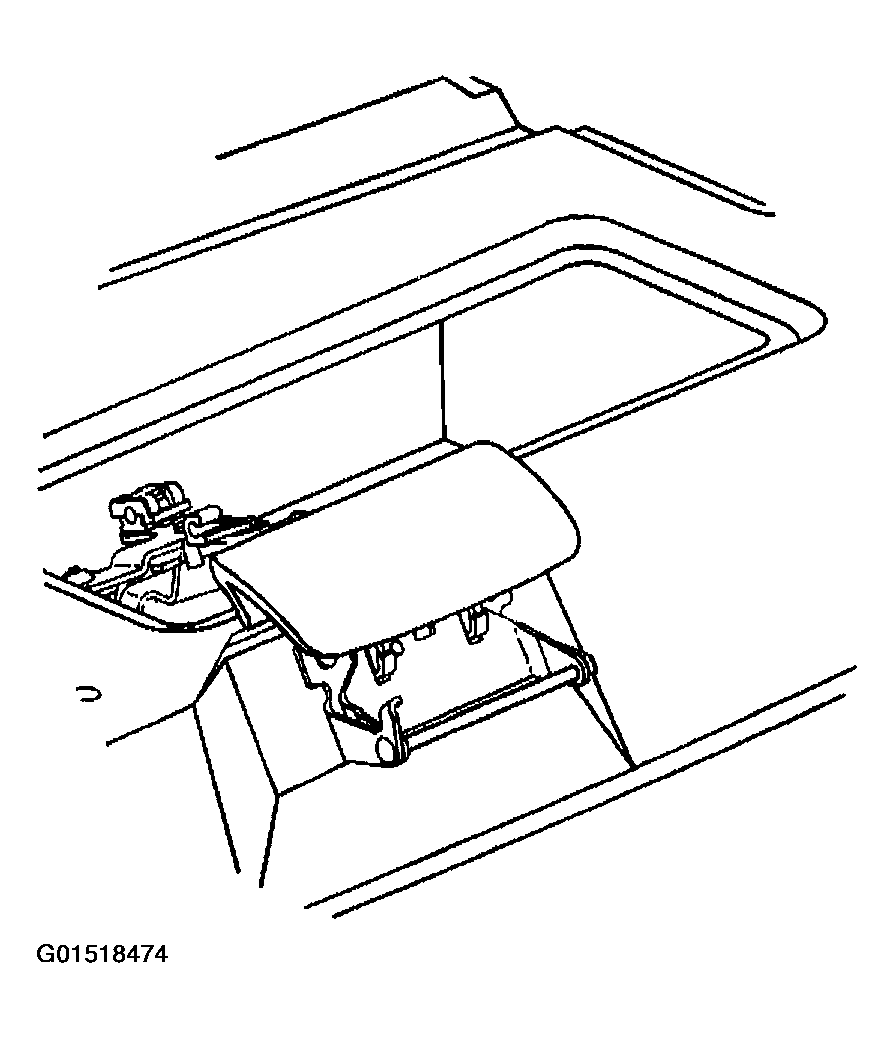

    Fig 1: Installing Procedure Of Handle Replacement - End Gate
    G01518474Courtesy of GENERAL MOTORS CORP.
