Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel filler cap to the fuel filler pocket by compressing the retainer on the fuel filler cap tether and pushing the tether through the fuel filler pocket drain hole.

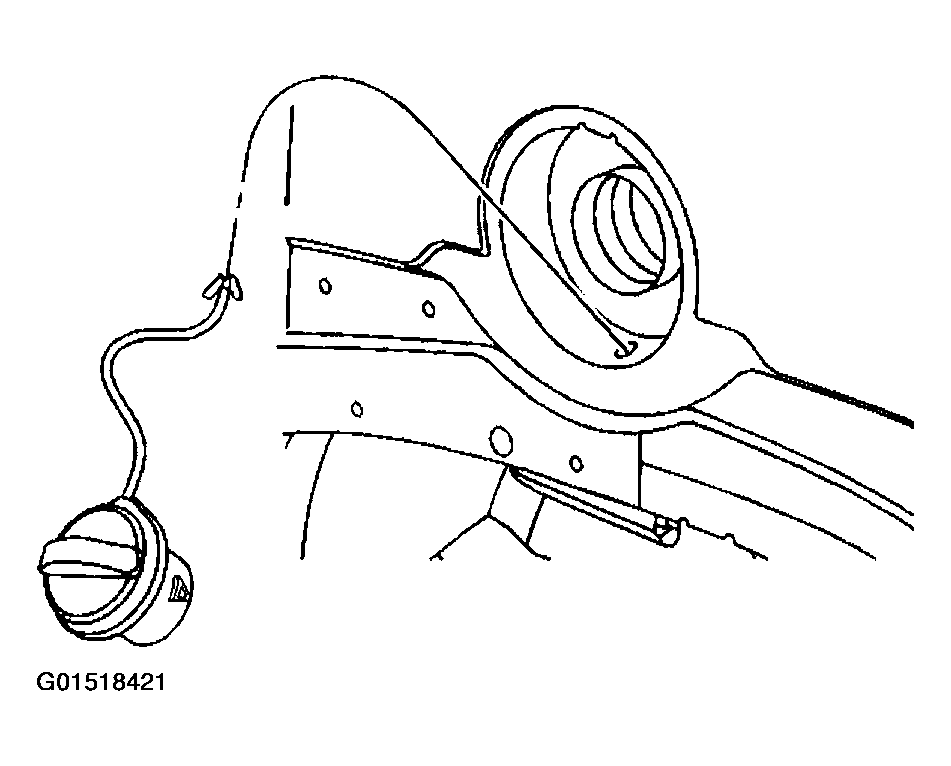

    Fig 1: Installing Procedure Fuel Filler Pocket (Aztec - 1 Of 2)
    G01518421Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel filler pocket to the fuel filler neck, pressing into place until fully seated.
  3. Install the screw to the fuel filler pocket.

    Tighten the fuel filler pocket screw to 2 N.m (18 lb in).

  4. Install the fuel filler cap to the fuel filler neck.

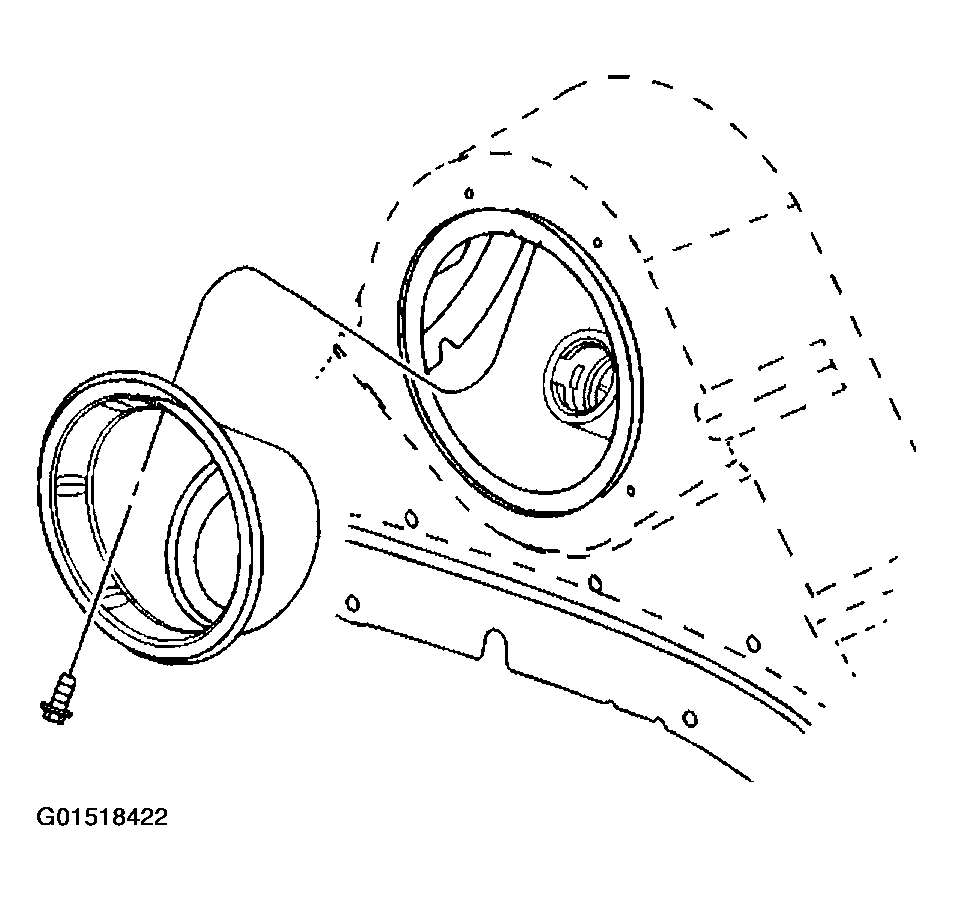

    Fig 2: Installing Procedure Fuel Filler Pocket (Aztec - 2 Of 2)
    G01518422Courtesy of GENERAL MOTORS CORP.
