Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel filler cap.
  3. Remove the fuel filler pocket. Refer to FUEL FILLER POCKET REPLACEMENT (AZTEK)  or FUEL FILLER POCKET REPLACEMENT (RENDEZVOUS)  .
  4. Remove the screws from the fuel filler door.
  5. Remove the fuel filler door from the vehicle.

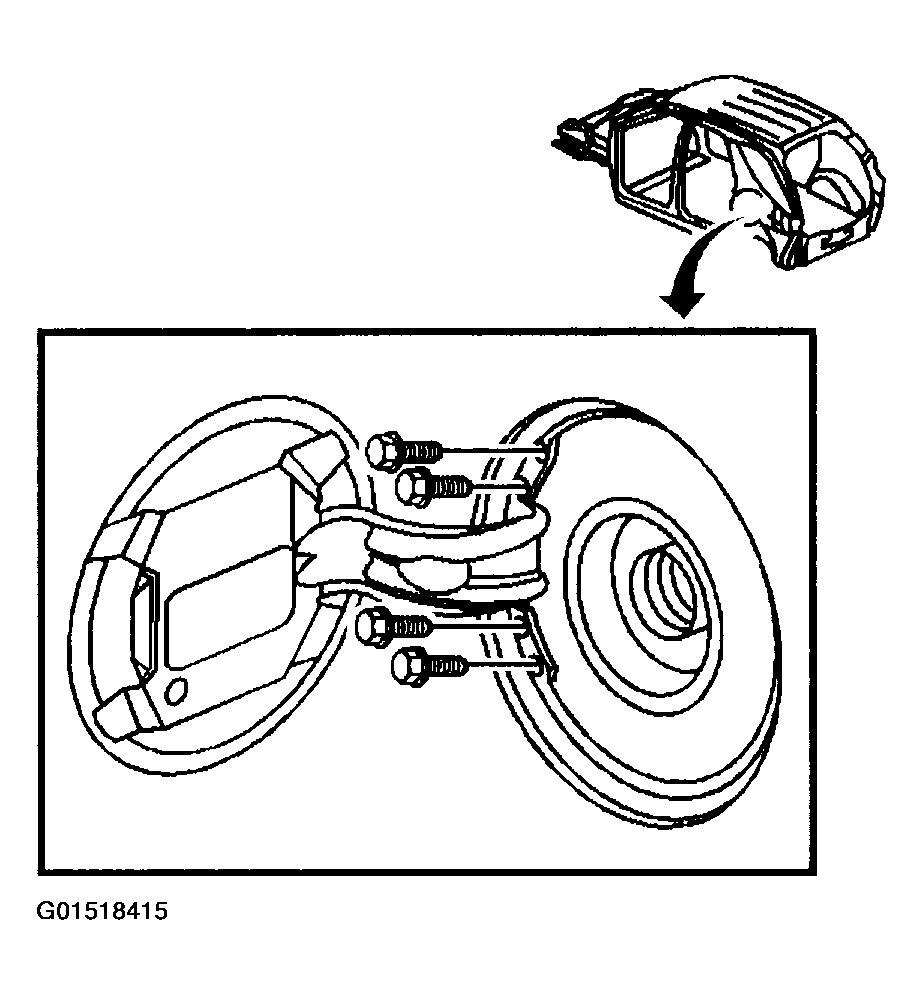

    Fig 1: Removing Procedure Fuel Filler Door (1 Of 2)
    G01518415Courtesy of GENERAL MOTORS CORP.
  6. Remove the fuel filler cap from the fuel filler door.

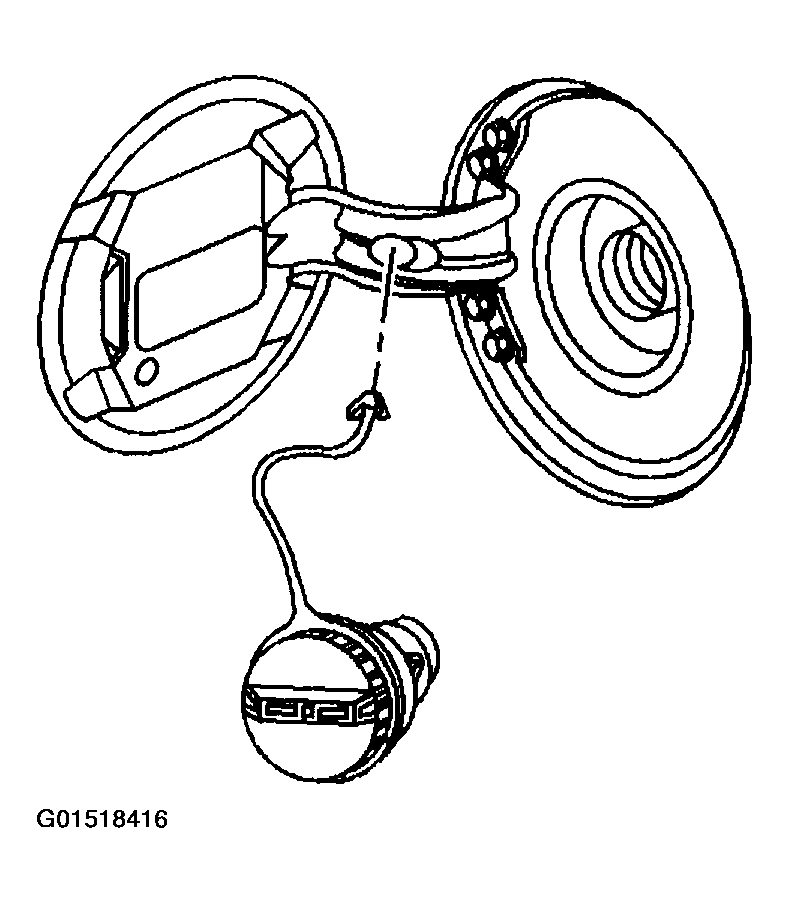

    Fig 2: Removing Procedure Fuel Filler Door (2 Of 2)
    G01518416Courtesy of GENERAL MOTORS CORP.
