Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  .
  2. Remove the endgate water deflector. Refer to WATER DEFLECTOR REPLACEMENT - END GATE  .
  3. Remove the endgate handle rod from the endgate bellcrank.
  4. Remove the endgate latch rods from the endgate bellcrank.

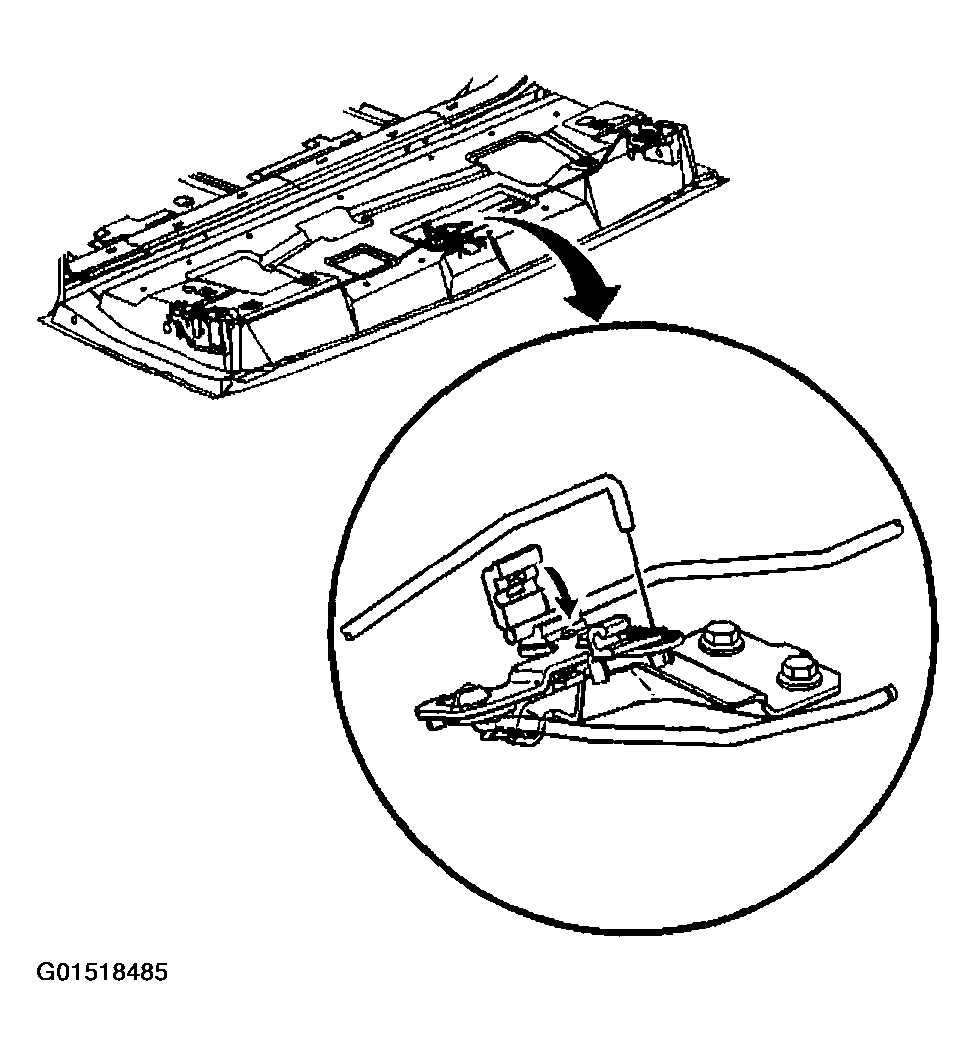

    Fig 1: Removing Endgate Latch Rods From Endgate Bellcrank
    G01518485Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts from the bellcrank to the endgate.

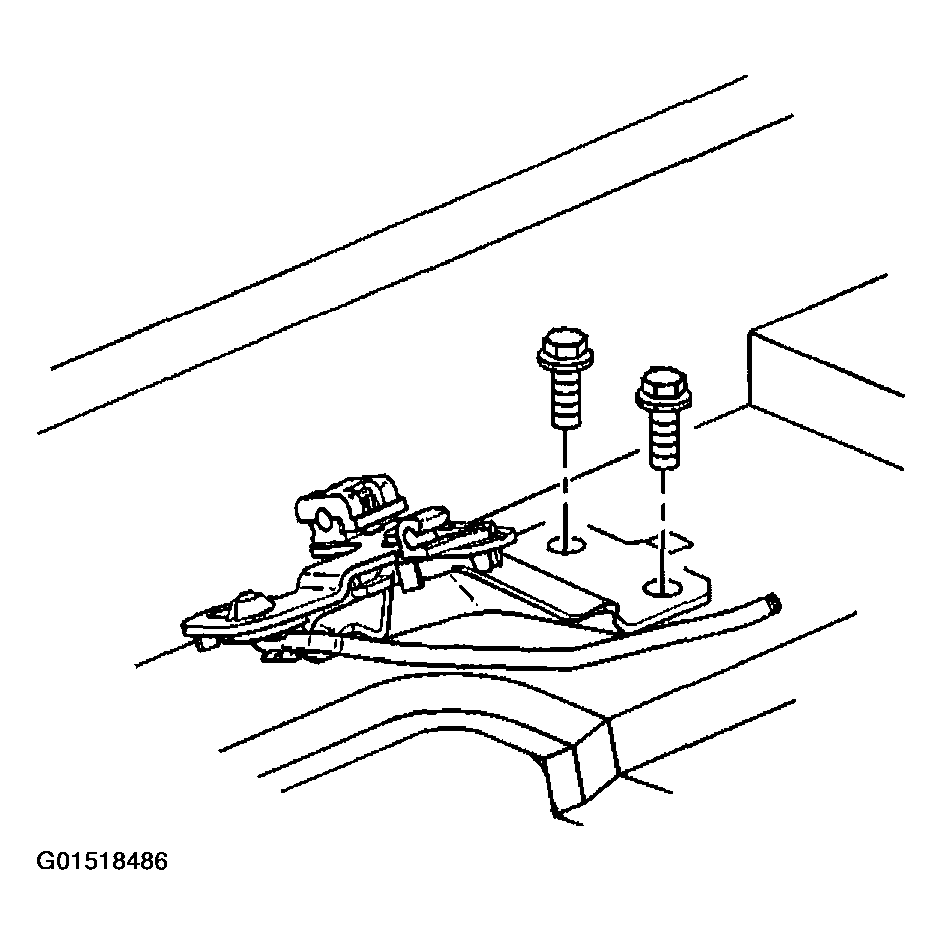

    Fig 2: Removing Bolts From Bellcrank To Endgate
    G01518486Courtesy of GENERAL MOTORS CORP.
  6. Remove the endgate bellcrank from the endgate.

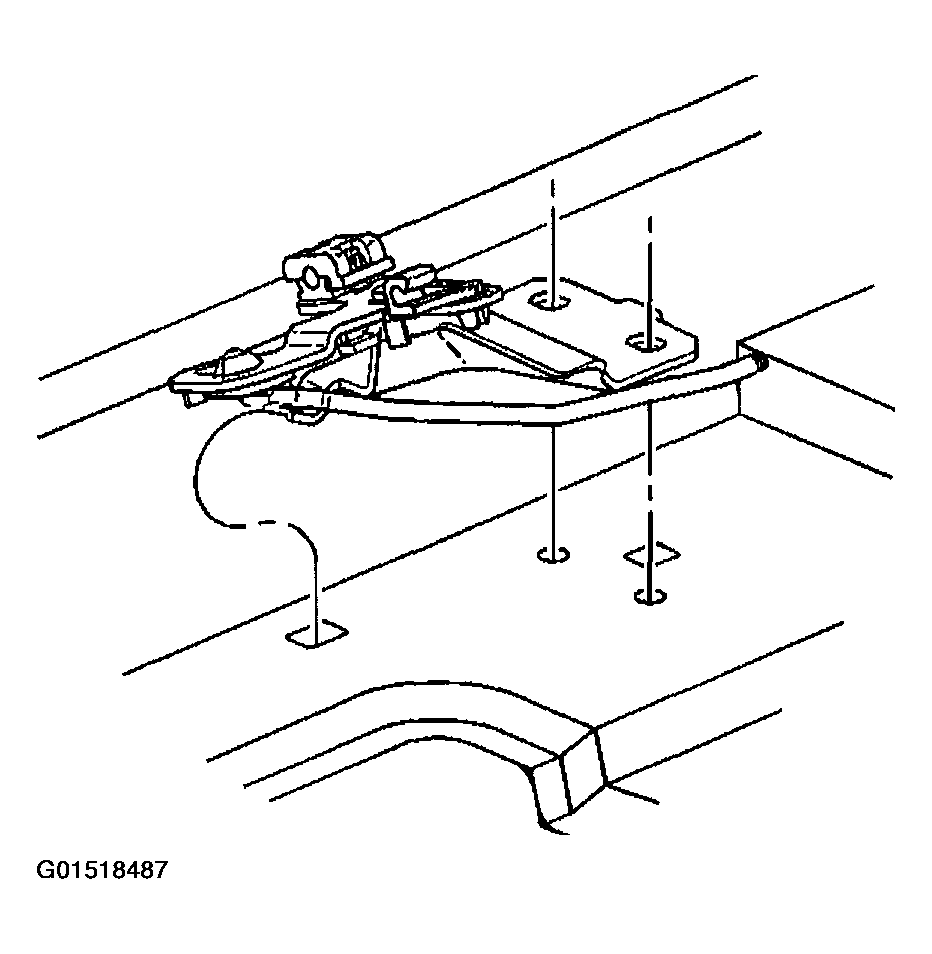

    Fig 3: Removing Endgate Bellcrank From Endgate
    G01518487Courtesy of GENERAL MOTORS CORP.
