Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bellcrank to the endgate.

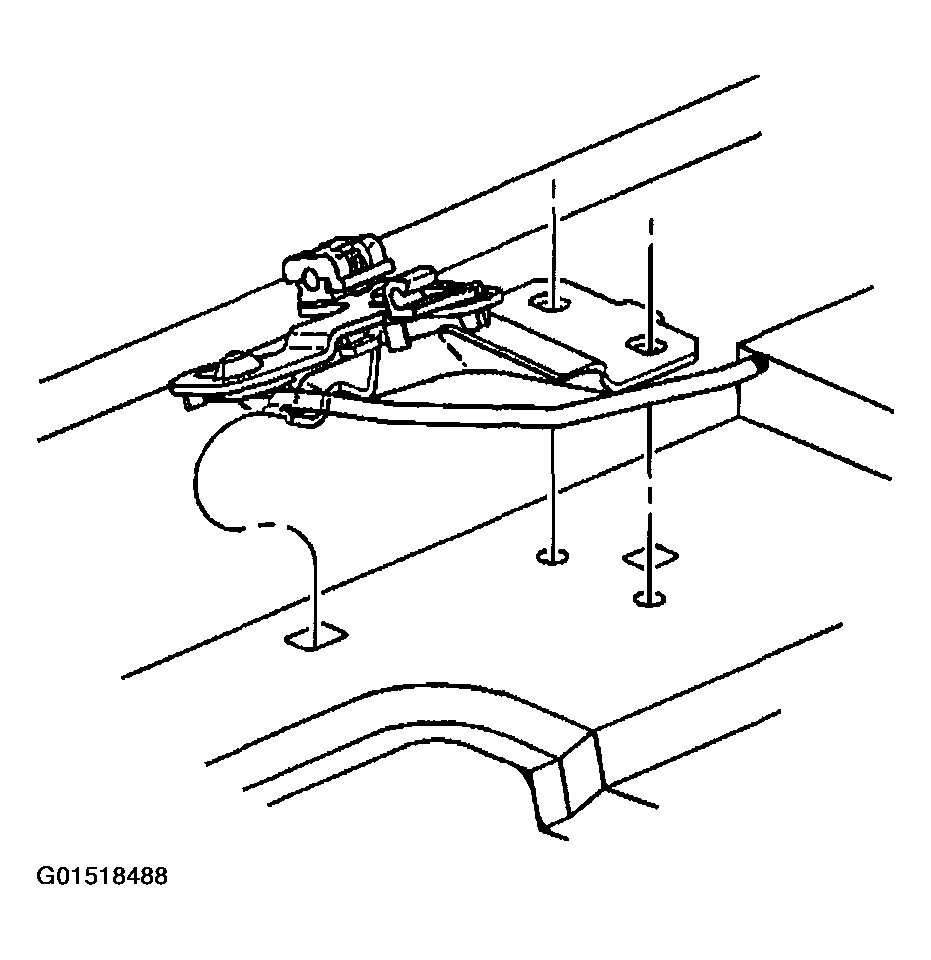

    Fig 1: Installing Bellcrank To Endgate
    G01518488Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the bellcrank to the endgate.

    Tighten the endgate bellcrank bolts to 10 N.m (89 lb in).

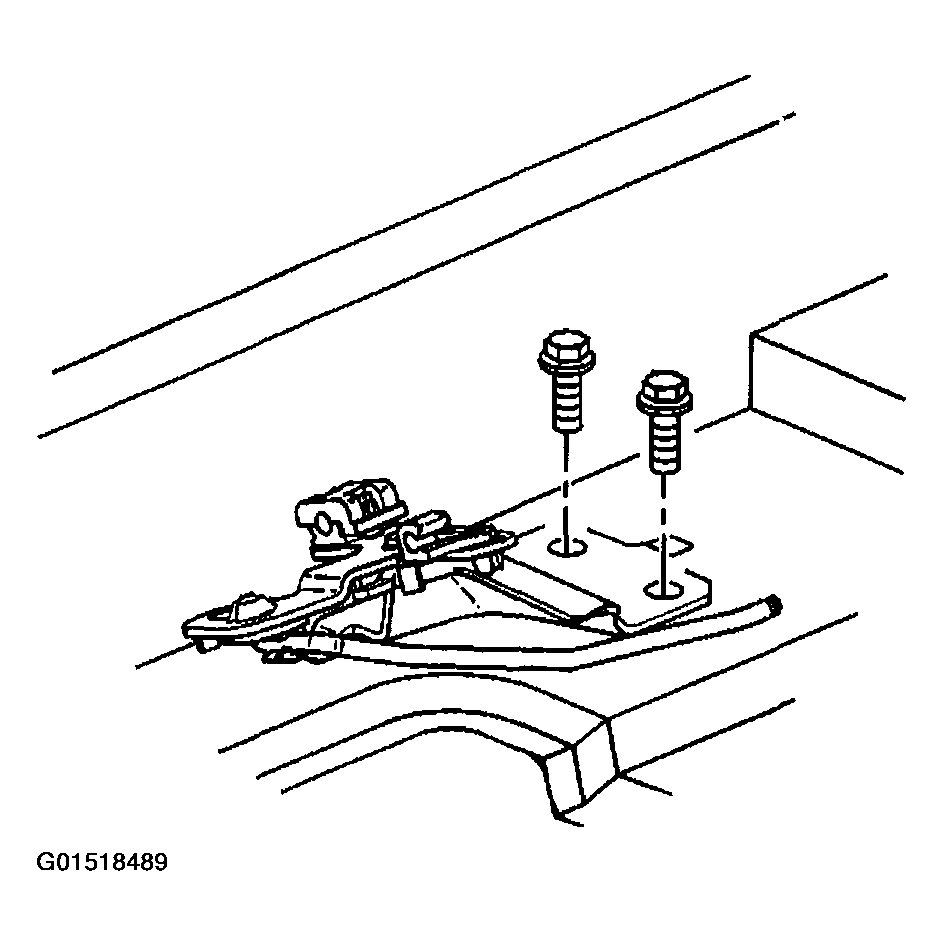

    Fig 2: Installing Bolts To Bellcrank To Endgate
    G01518489Courtesy of GENERAL MOTORS CORP.
  3. Install the endgate latch rods to the bellcrank.
  4. Install the endgate latch handle rod to the bellcrank.
  5. Install the endgate water deflector. Refer to WATER DEFLECTOR REPLACEMENT - END GATE  .
  6. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  .

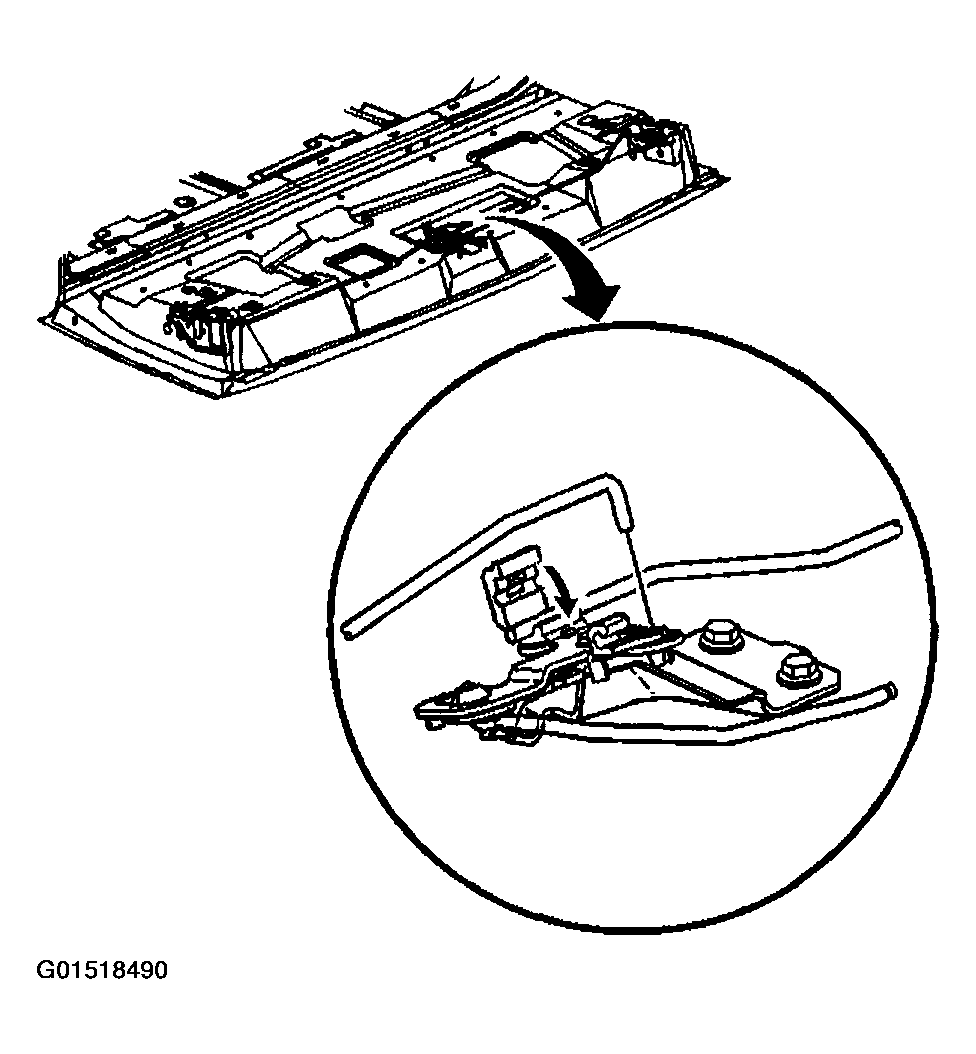

    Fig 3: Installing Endgate Latch Handle Rod To Bellcrank
    G01518490Courtesy of GENERAL MOTORS CORP.
