Body Rear End Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

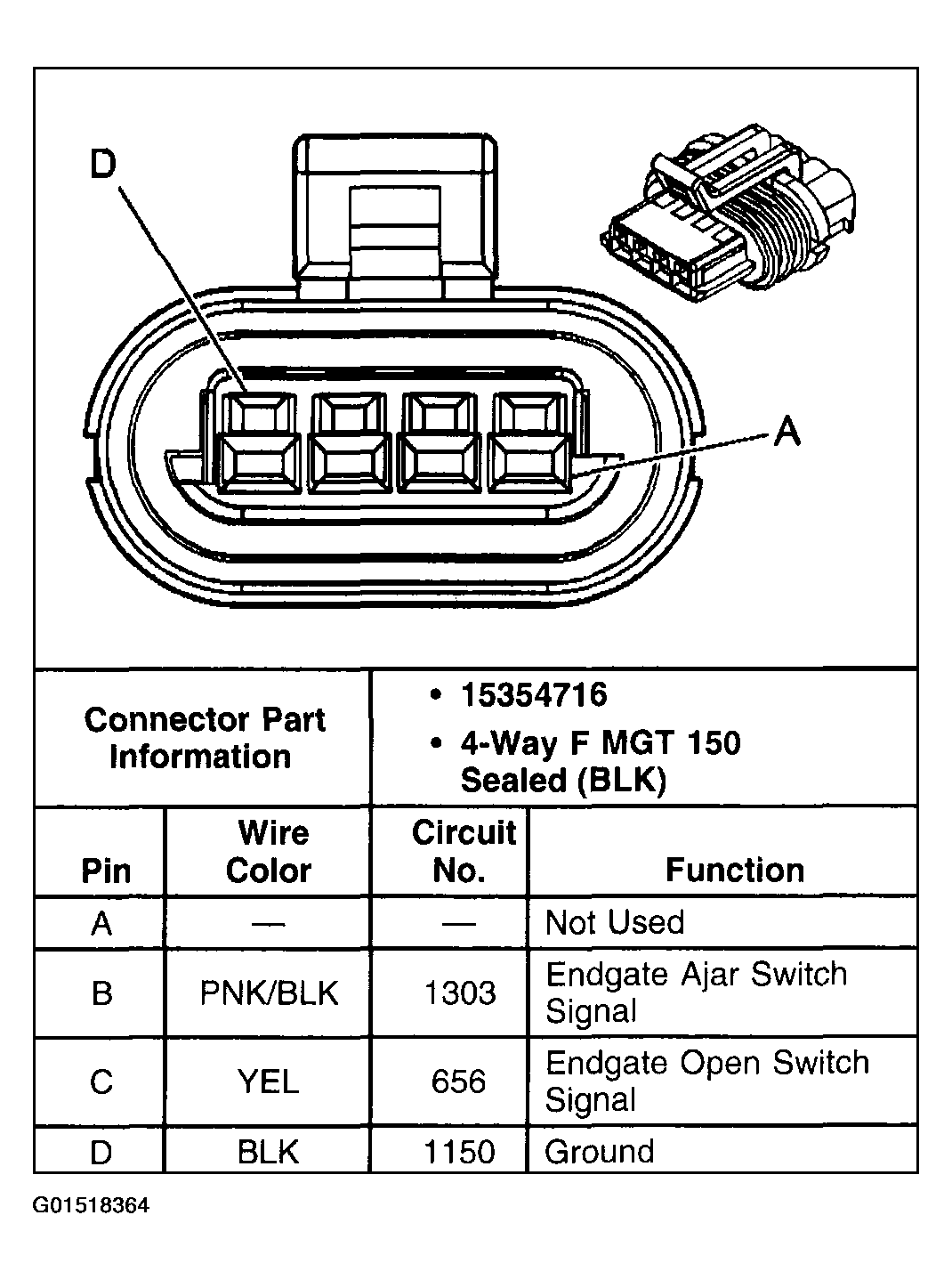

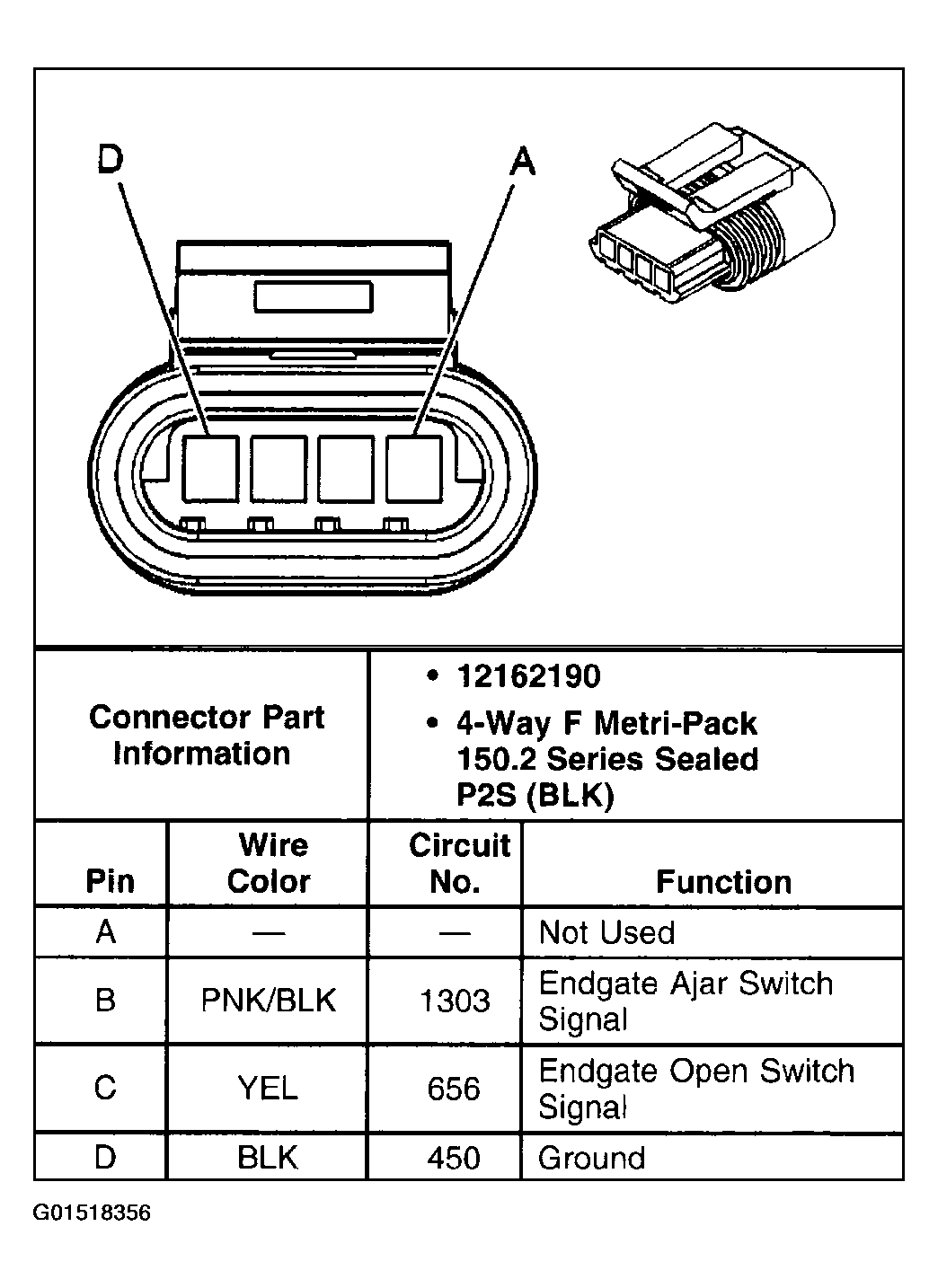

Fig 1: Identifying Endgate Latch - Left Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Endgate Latch - Right Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Endgate Lock Actuator - Left Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Endgate Lock Actuator - Right Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

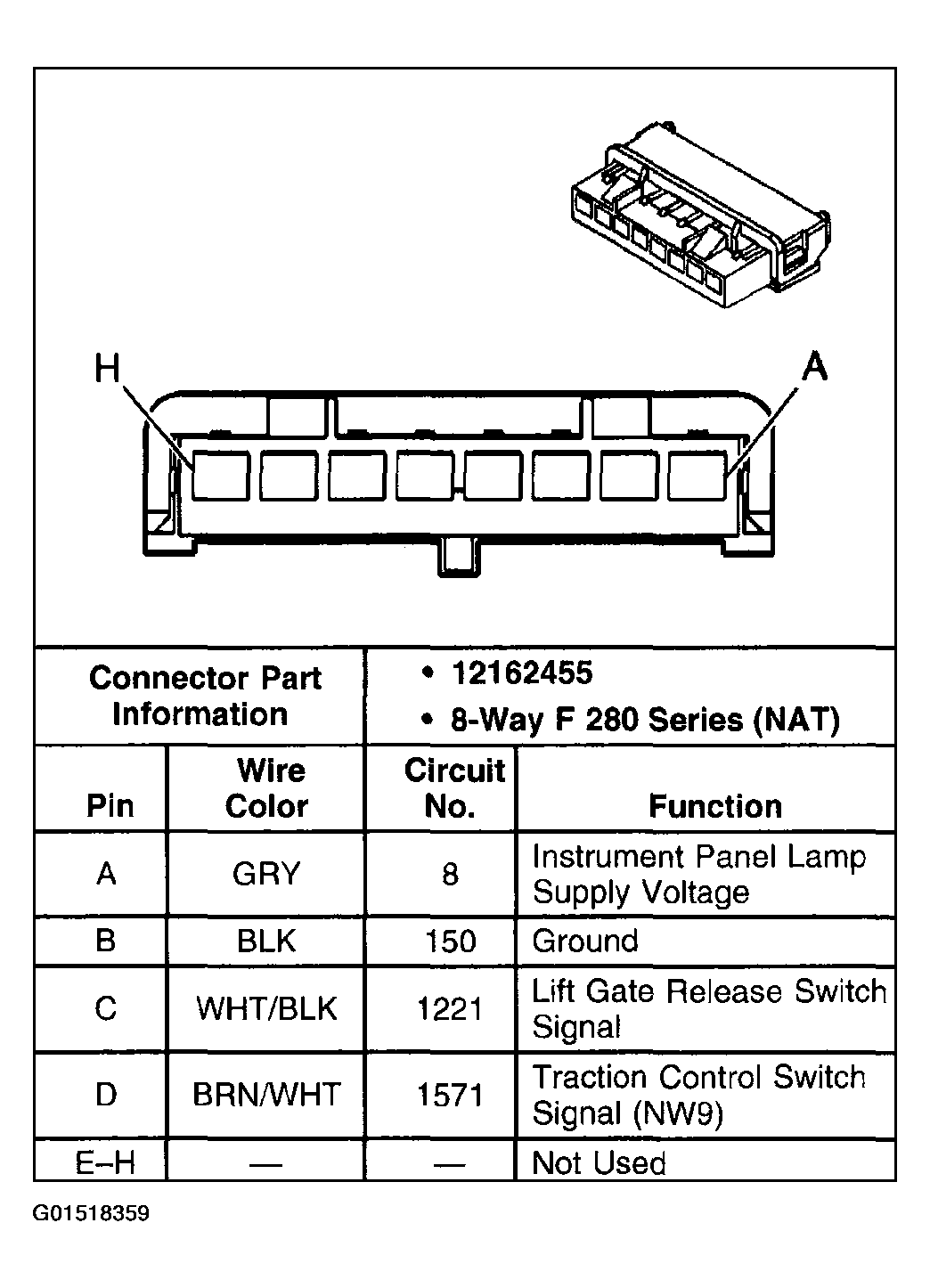

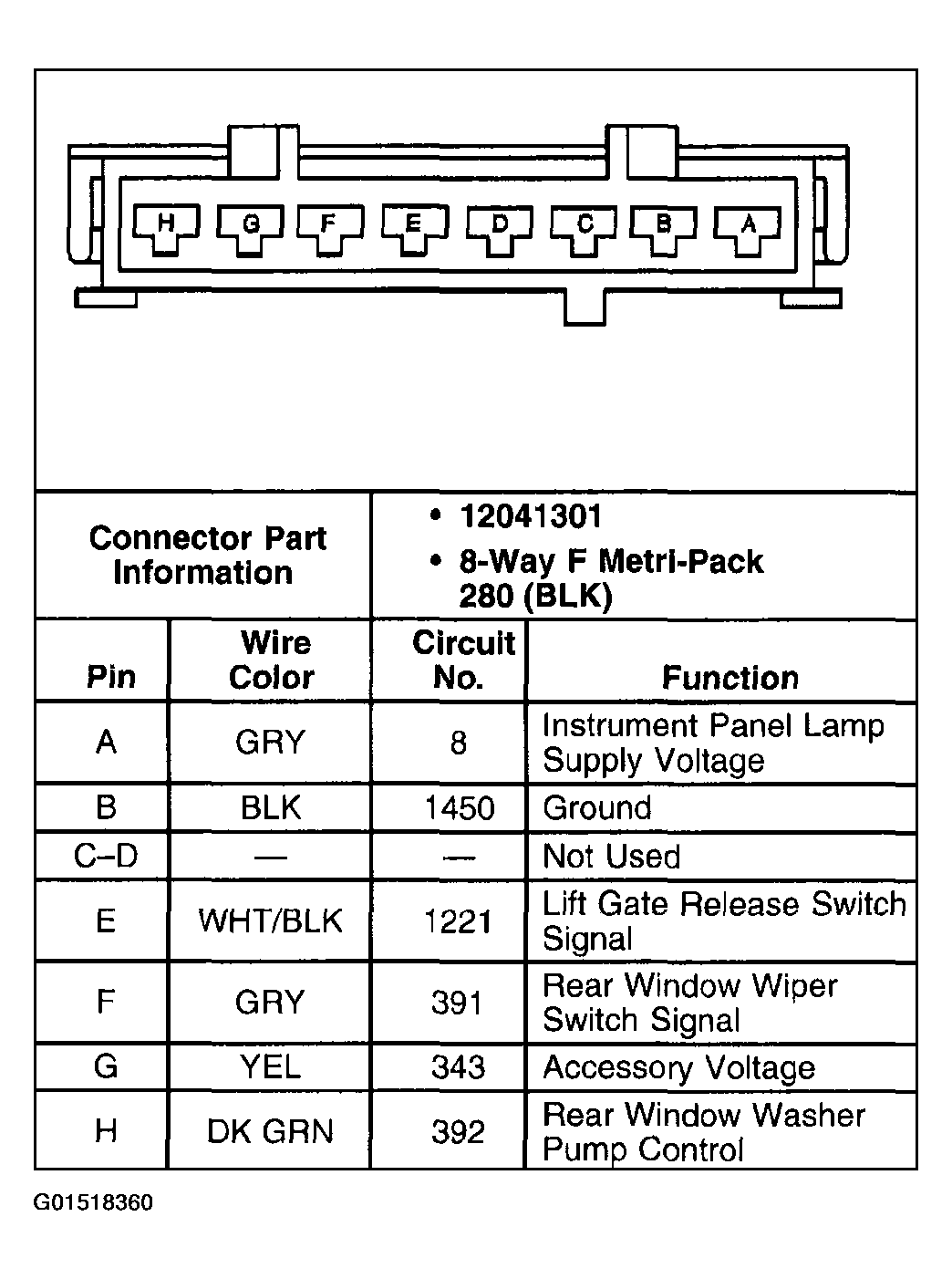

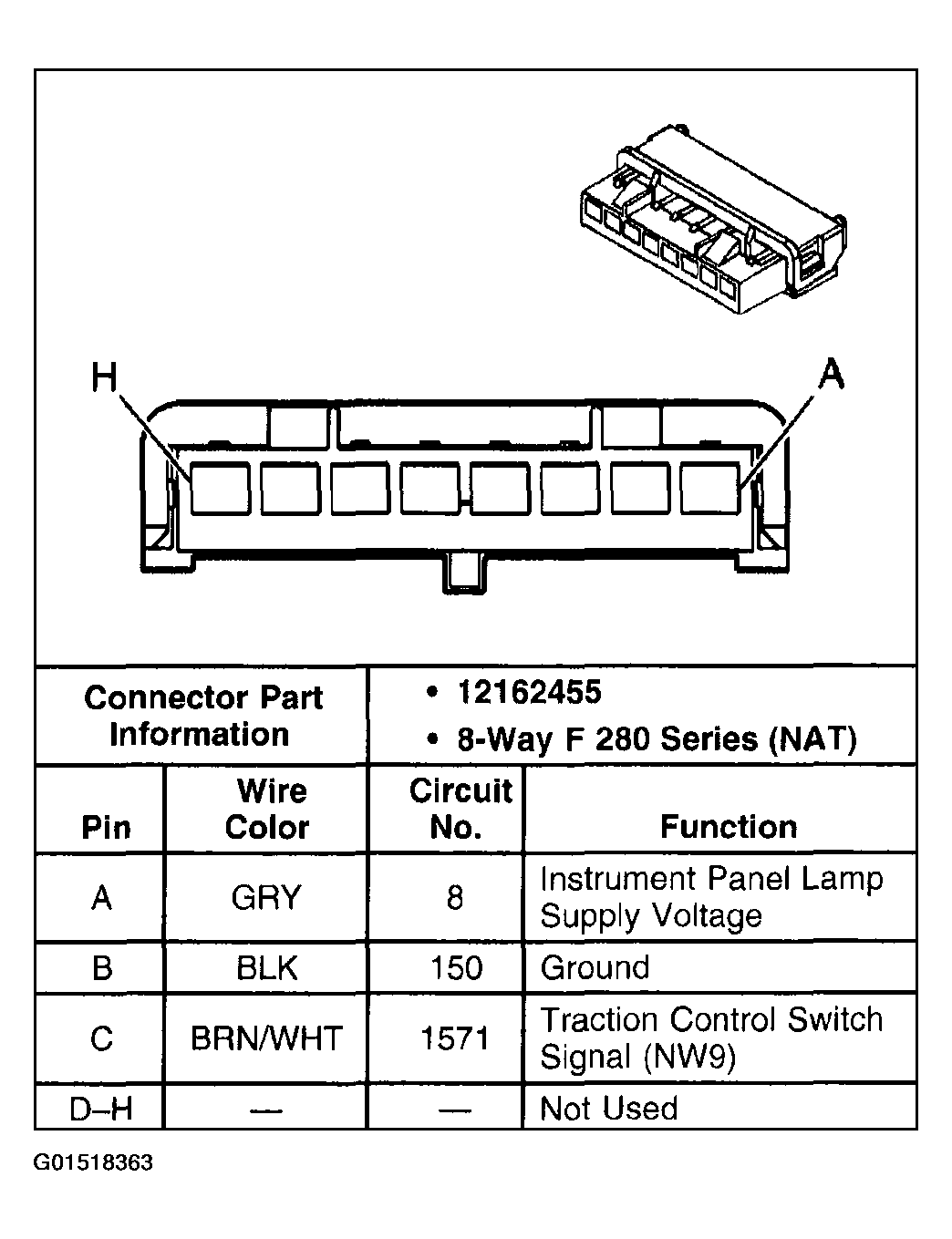

Fig 5: Identifying I/P Switch Assembly C1 Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

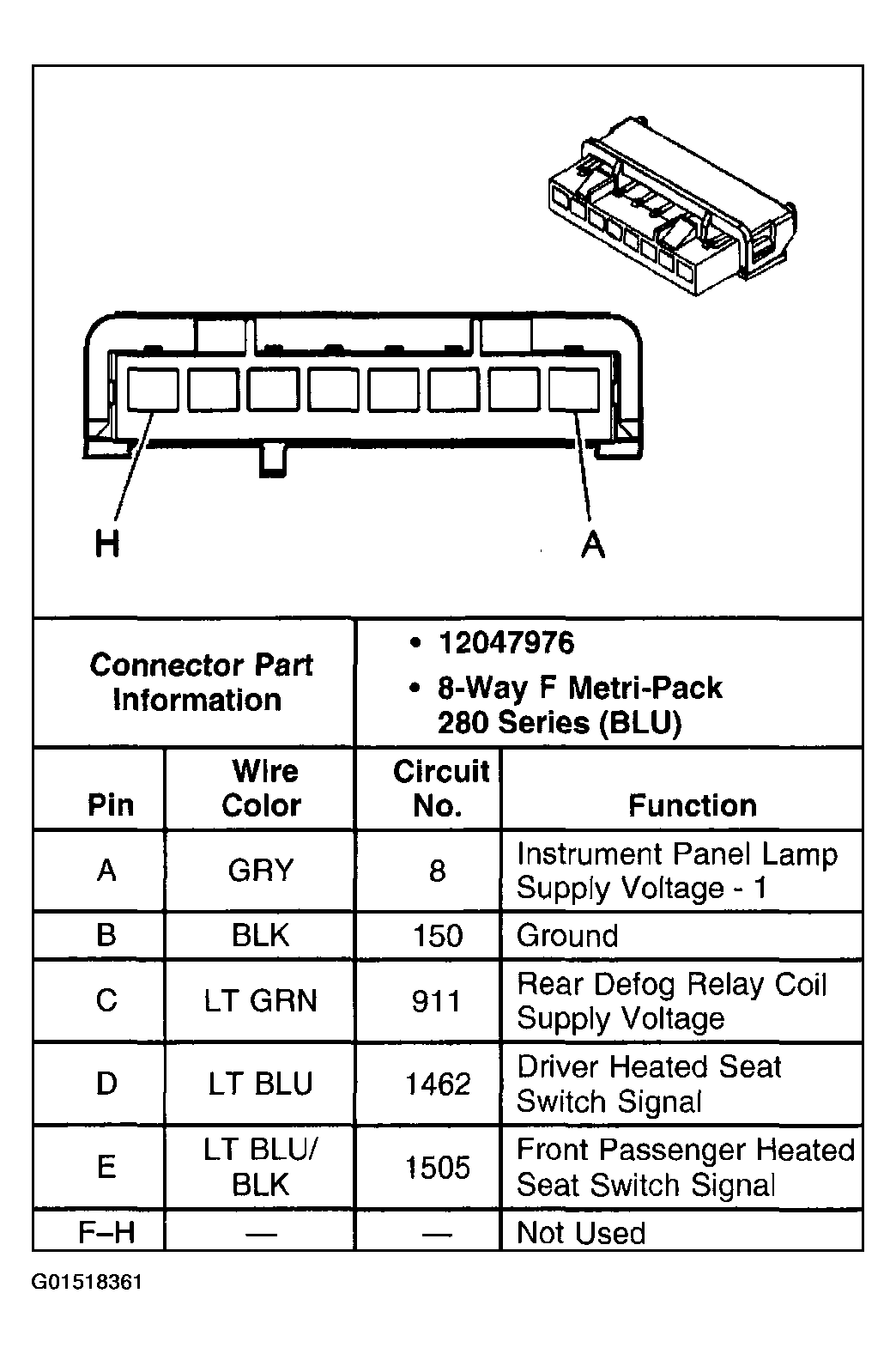

Fig 6: Identifying I/P Switch Assembly C1 Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

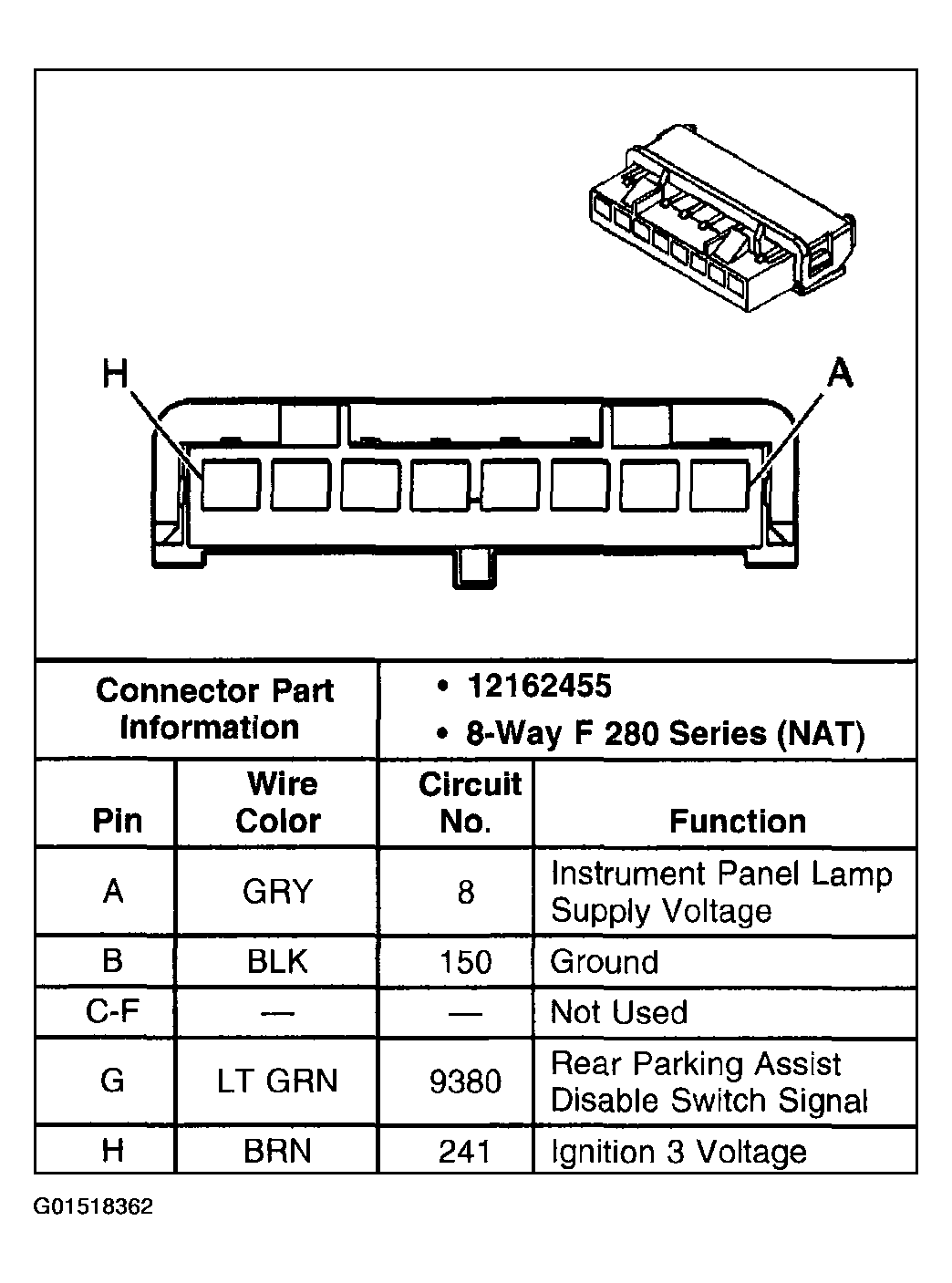

Fig 7: Identifying I/P Switch Assembly C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying I/P Switch Assembly C3 Connector Terminal (Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying I/P Switch Assembly C4 Connector Terminal (Buick)

Courtesy of GENERAL MOTORS CORP.

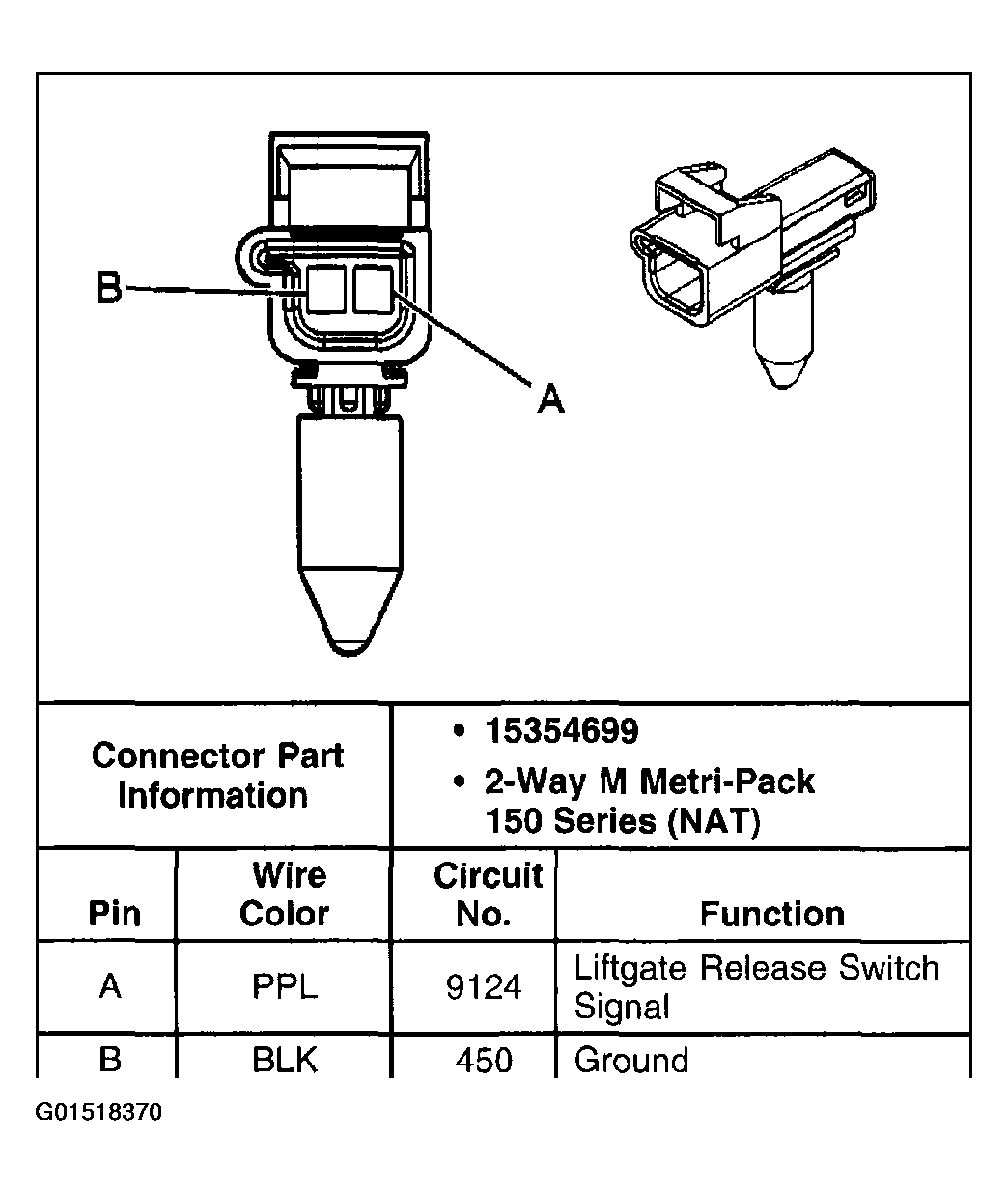

Fig 10: Identifying Liftgate Latch Connector Terminal (Buick)

Courtesy of GENERAL MOTORS CORP.

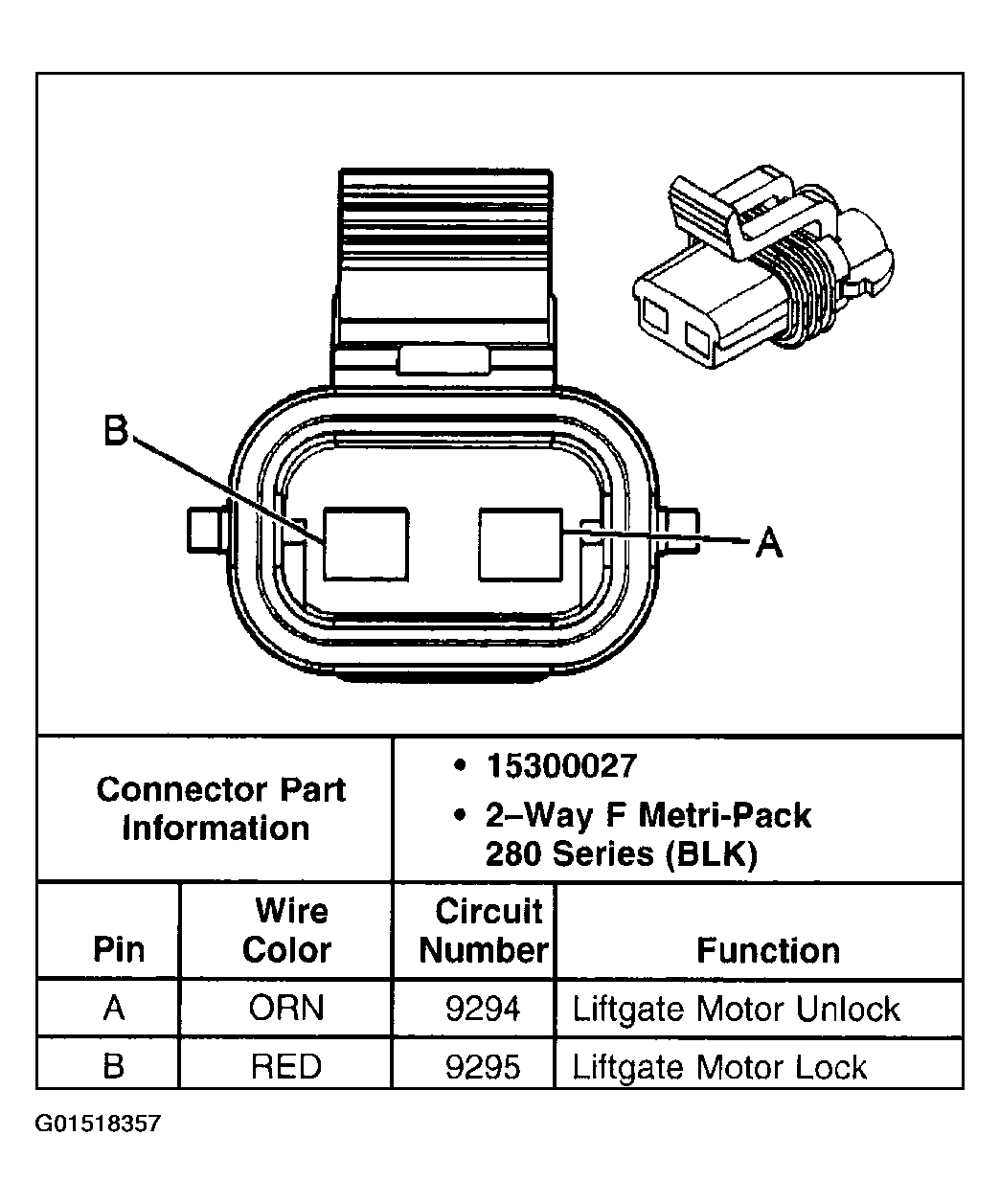

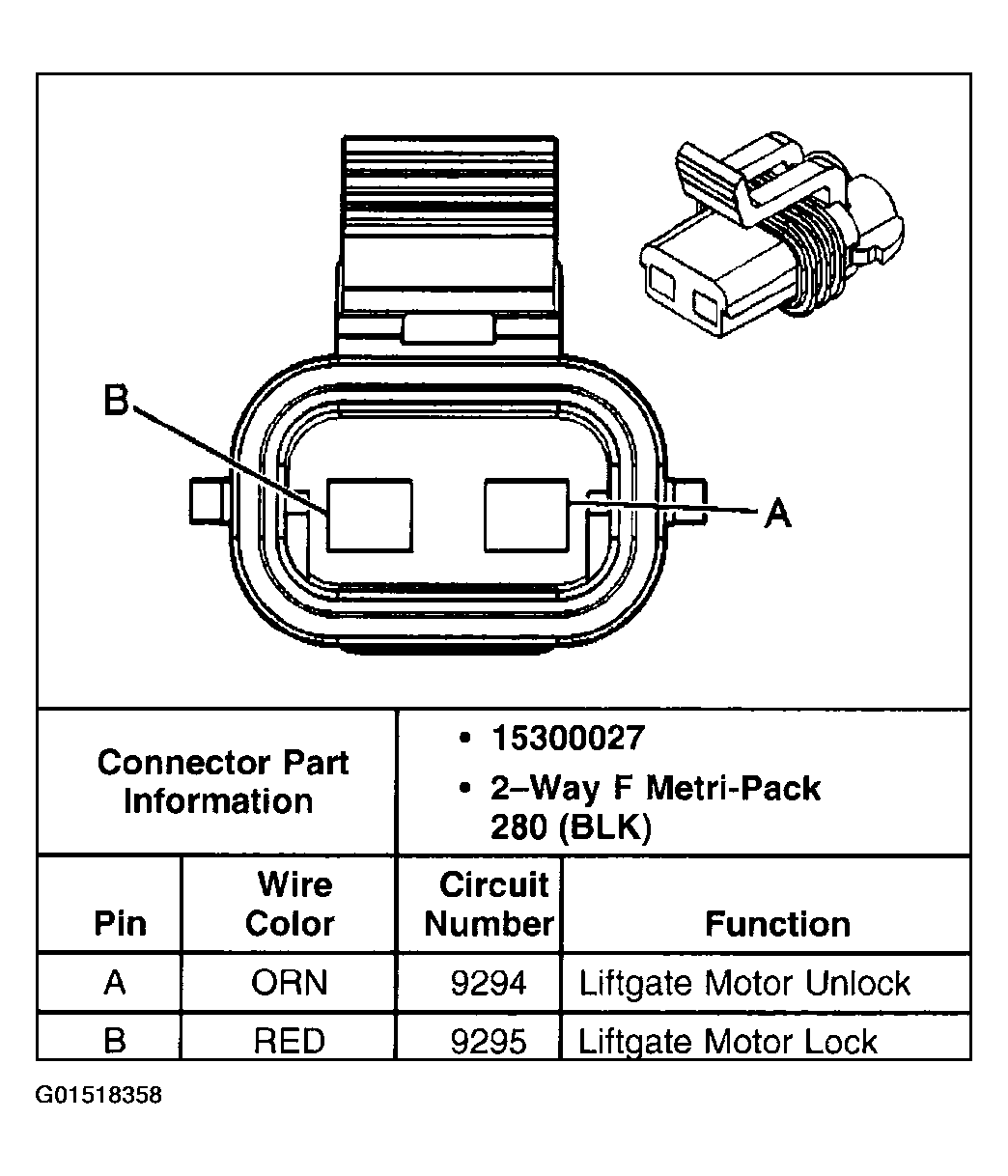

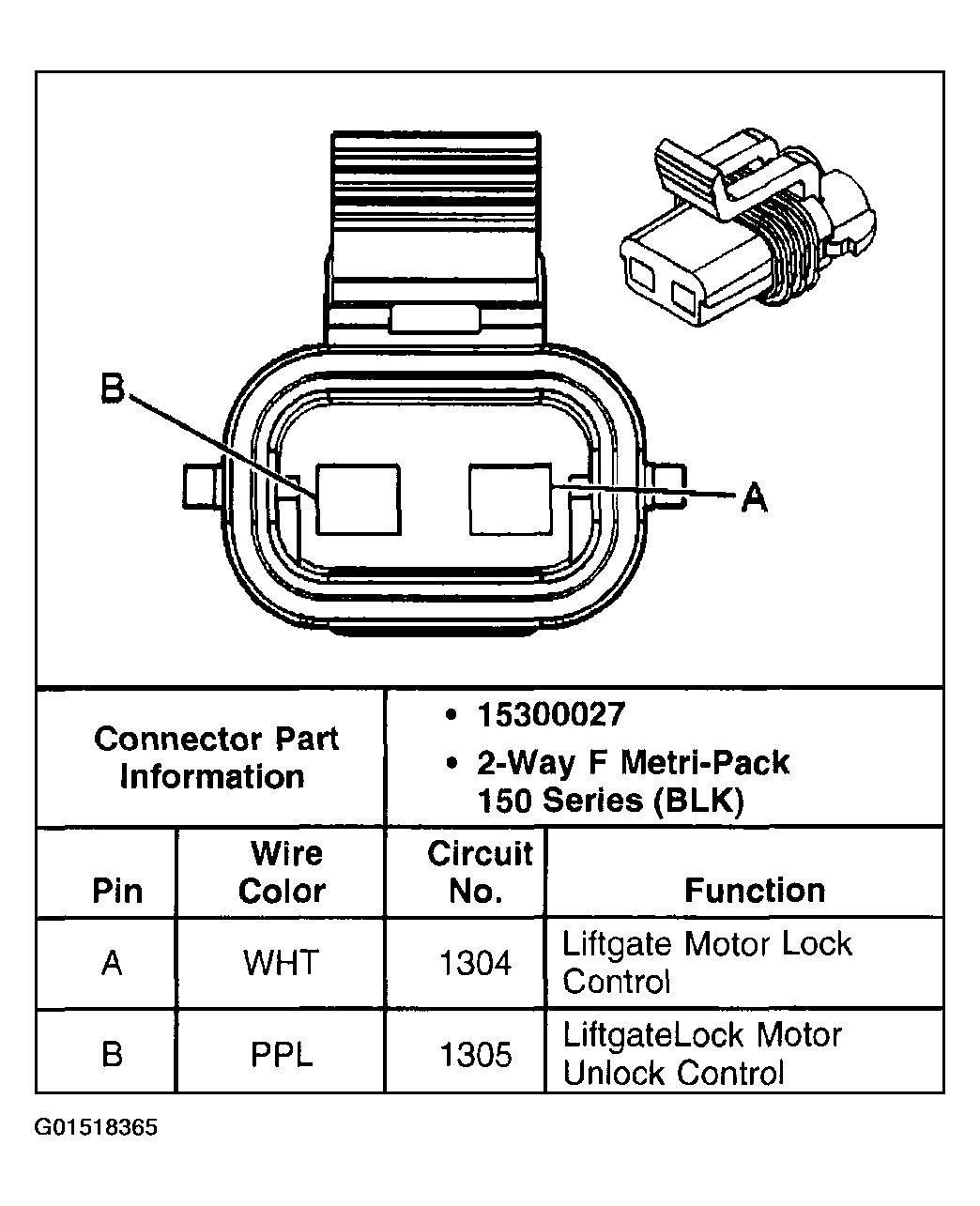

Fig 11: Identifying Liftgate Lock Actuator Connector Terminal (Buick)

Courtesy of GENERAL MOTORS CORP.

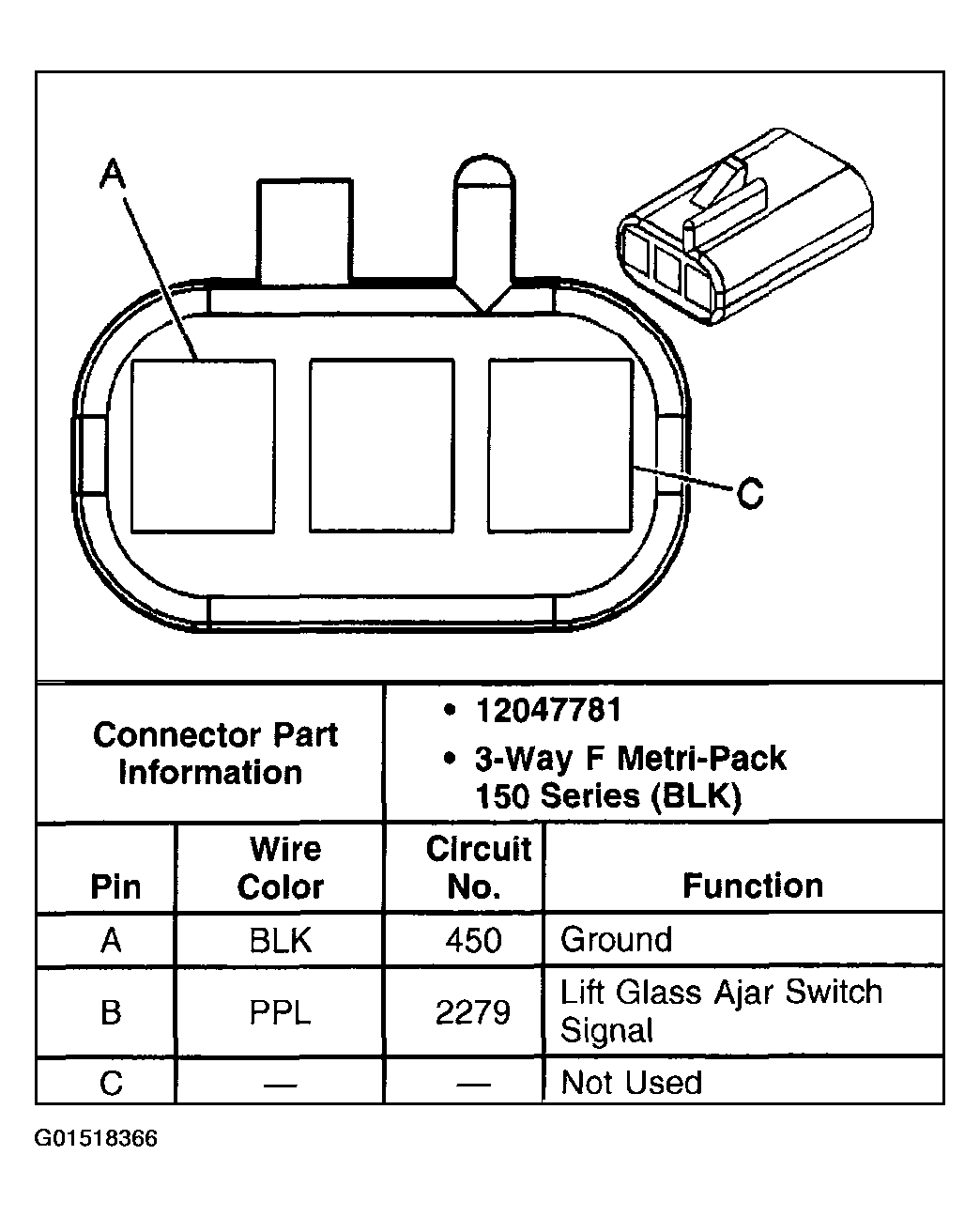

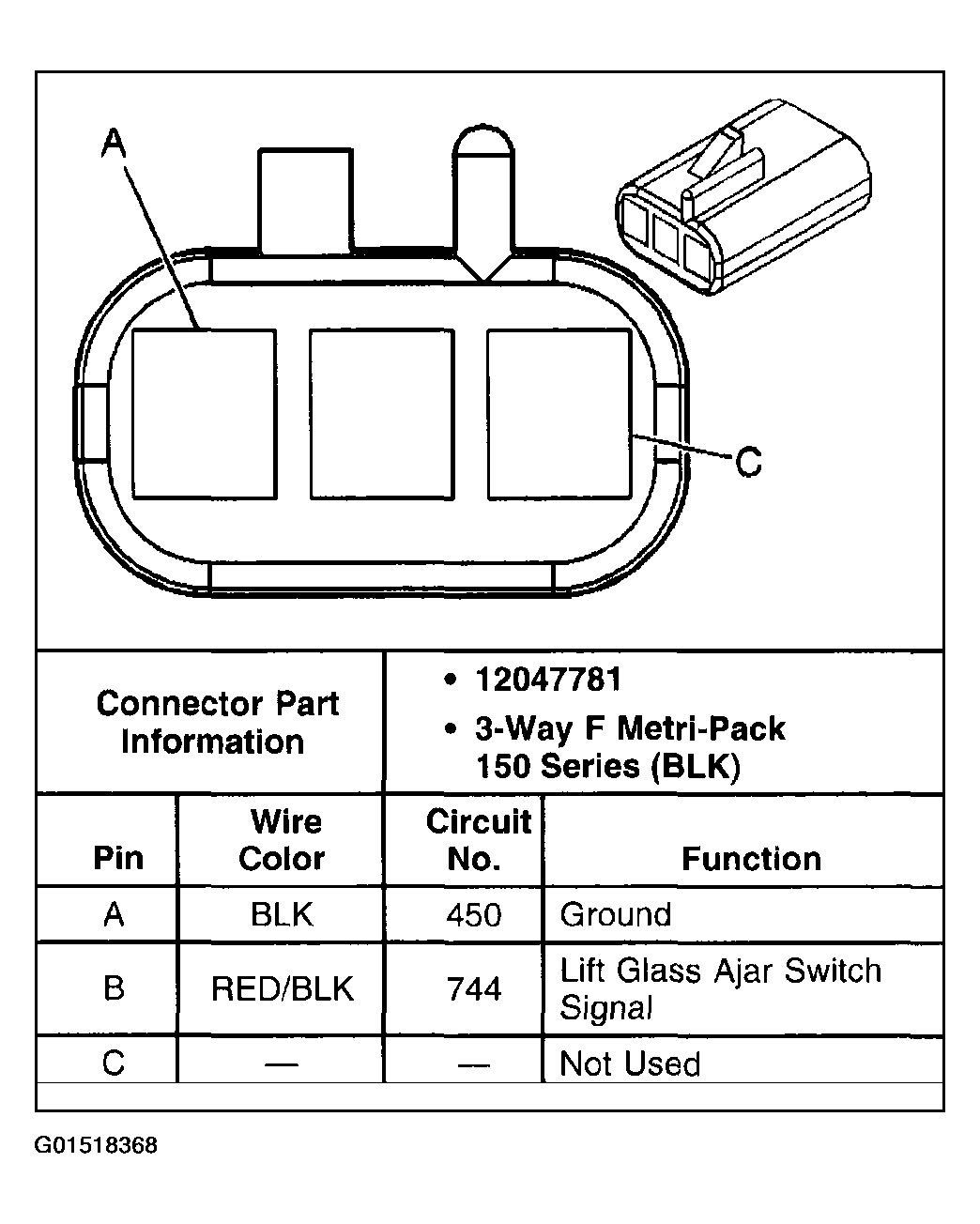

Fig 12: Identifying Left Lift Window Latch Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

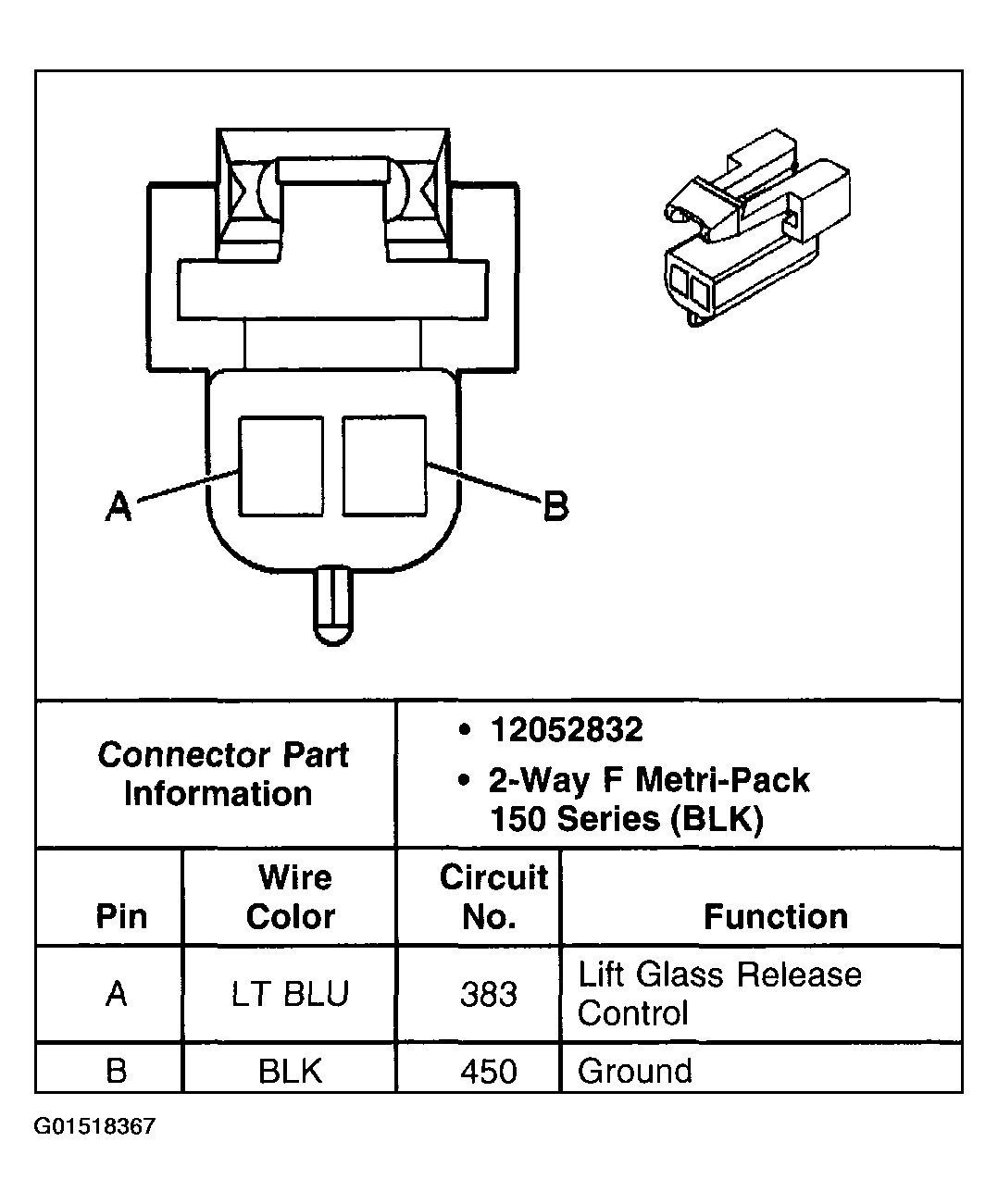

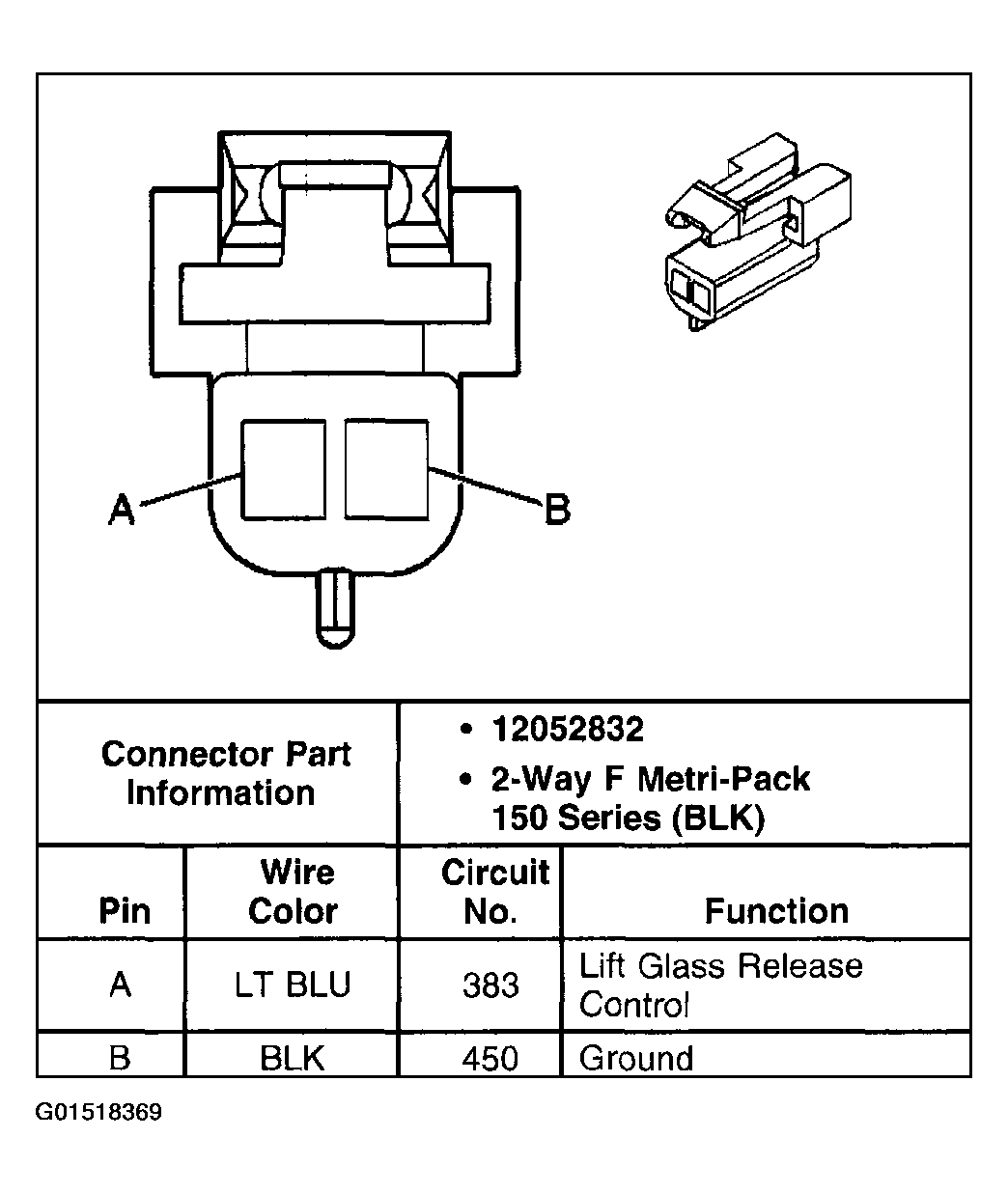

Fig 13: Identifying Left Lift Window Lock Actuator Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Right Lift Window Latch Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Right Lift Window Lock Actuator Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Endgate Lock Cylinder Switch Connector Terminal (Pontiac)

Courtesy of GENERAL MOTORS CORP.
