Body Rear End Component Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

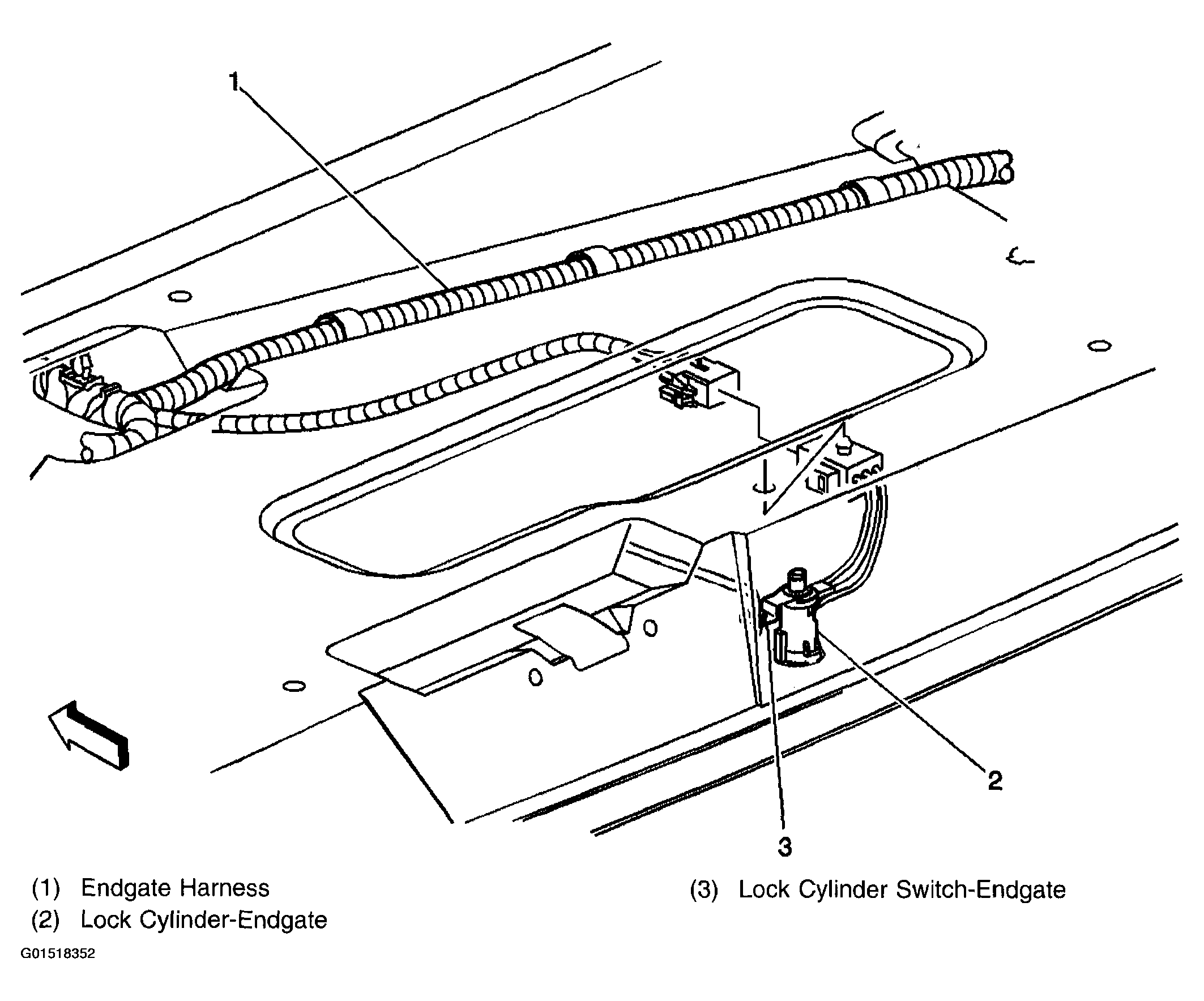

Fig 1: Locating Endgate Lock Cylinder & Switch (Pontiac)

Courtesy of GENERAL MOTORS CORP.

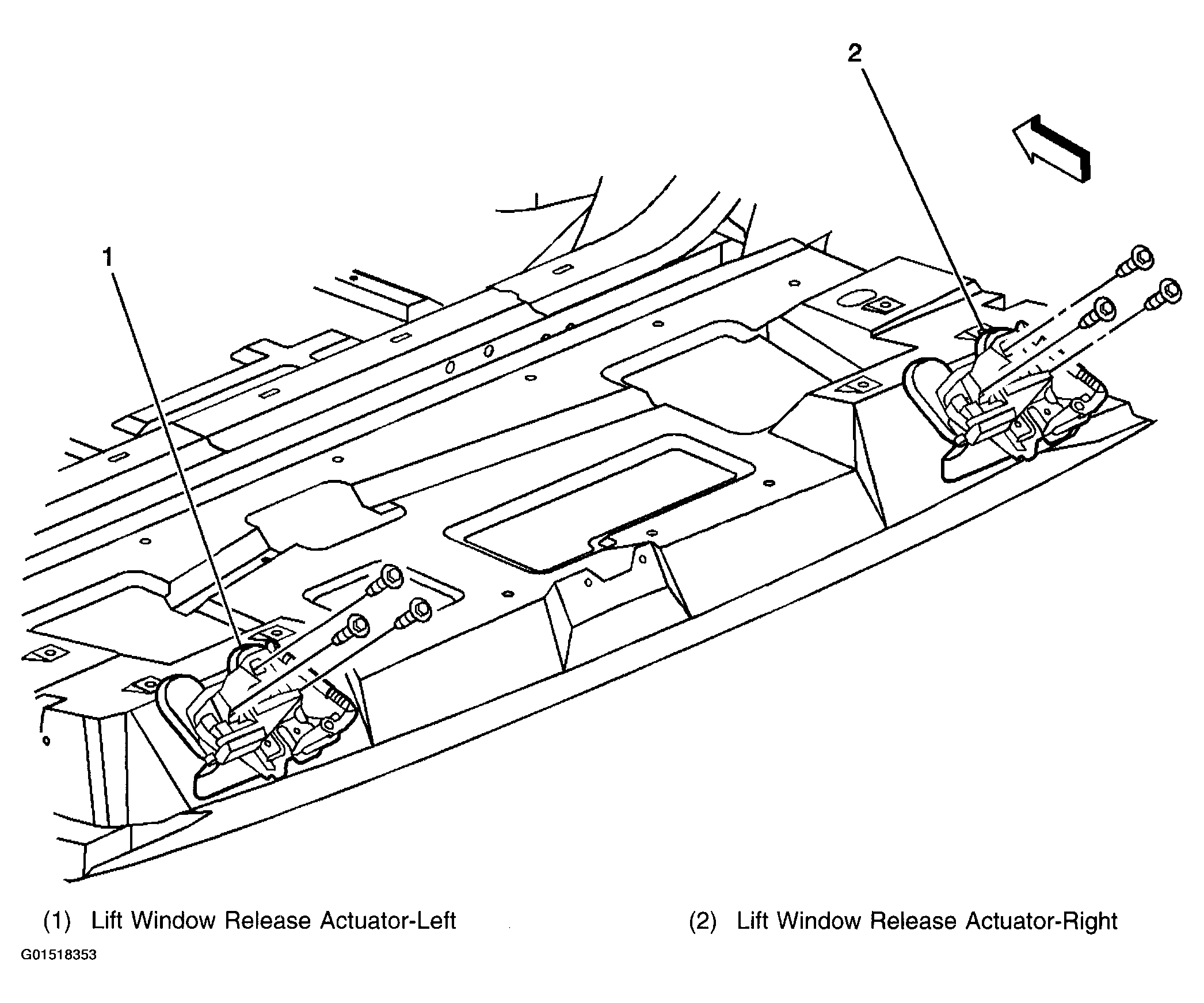

Fig 2: Locating Lift Window Release Actuators (Pontiac)

Courtesy of GENERAL MOTORS CORP.

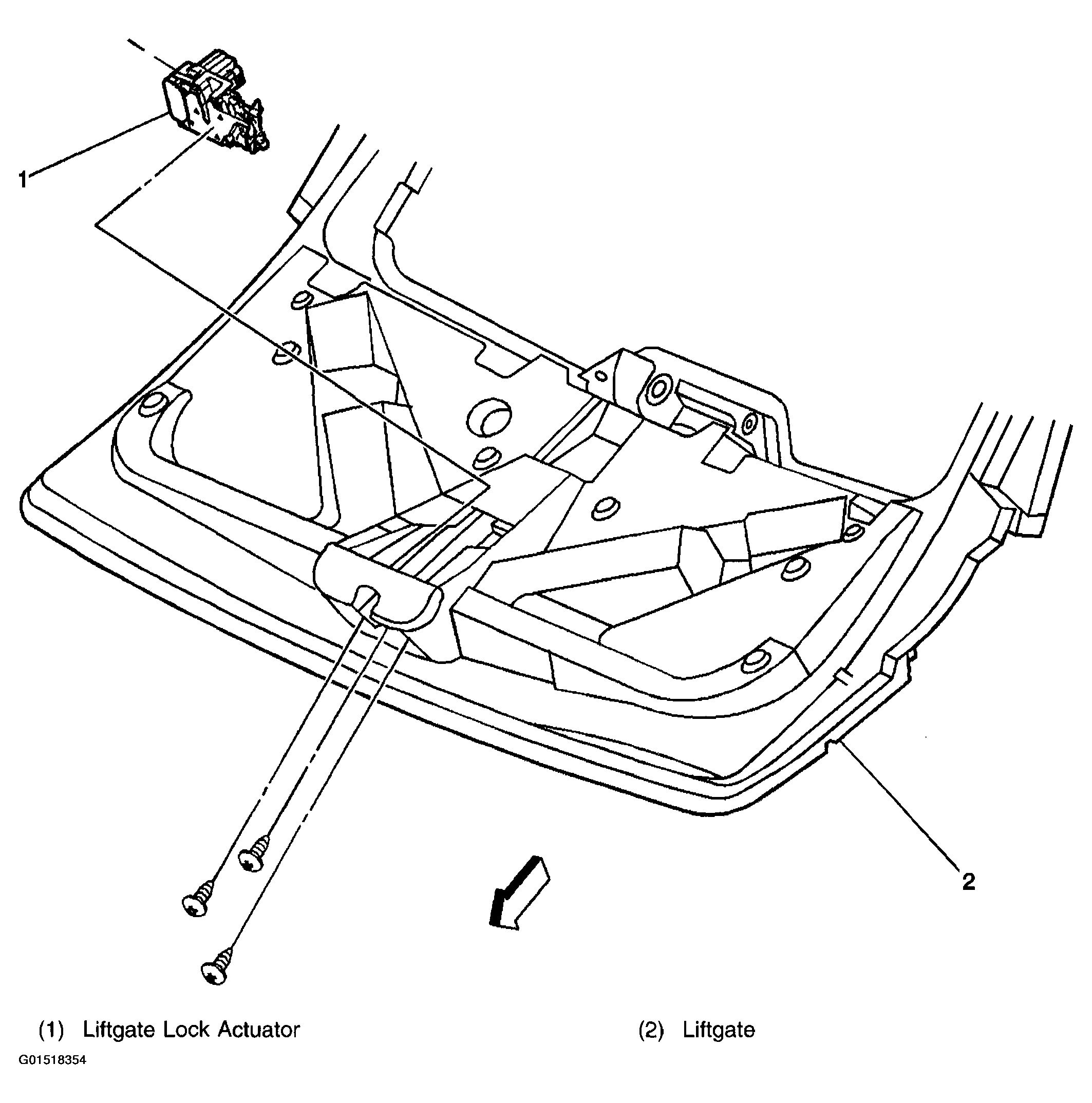

Fig 3: Locating Liftgate Lock Actuator (Buick)

Courtesy of GENERAL MOTORS CORP.
