Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

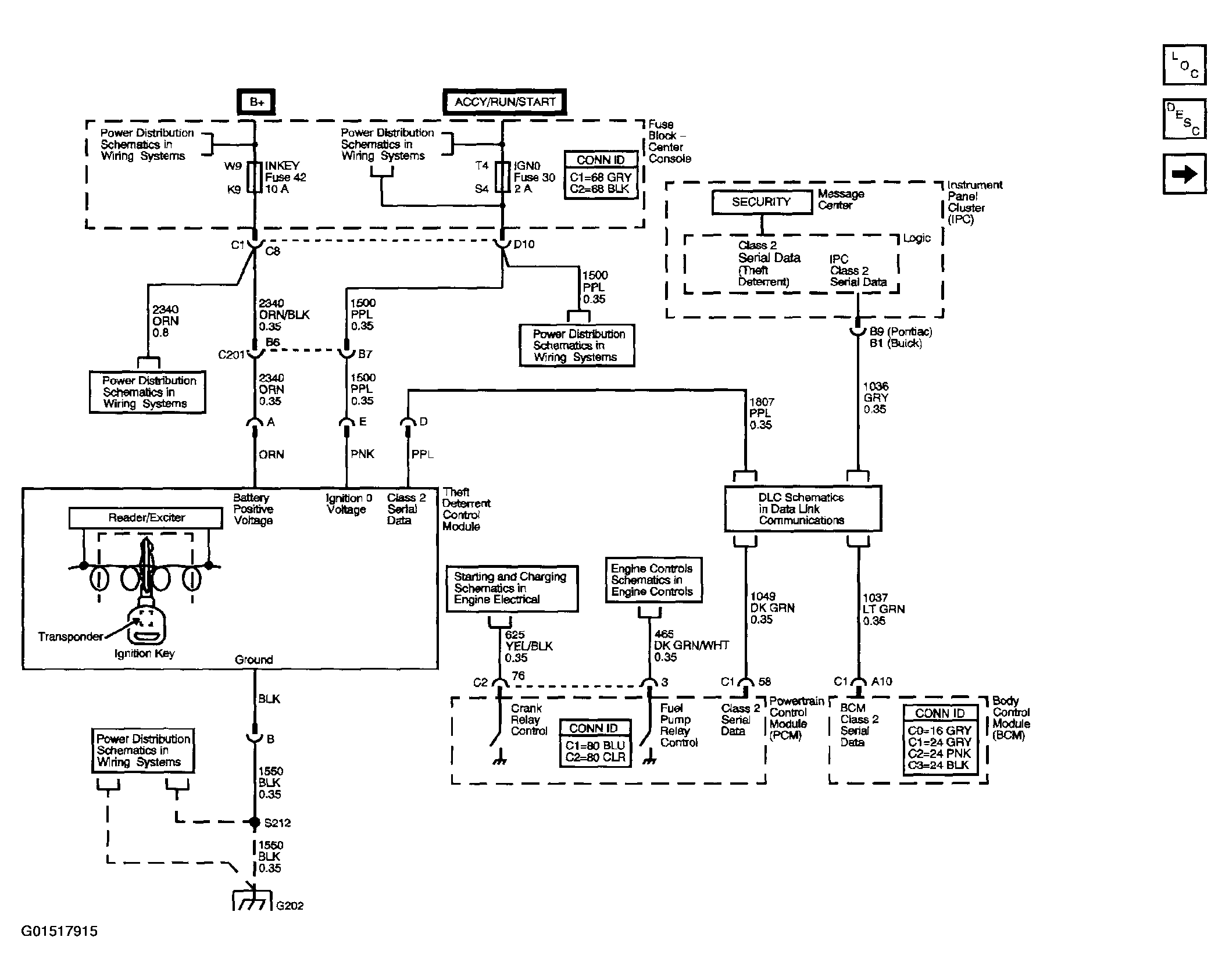

Fig 1: Theft Deterrent System Schematics (Fuel & Starter Disabling)

Courtesy of GENERAL MOTORS CORP.

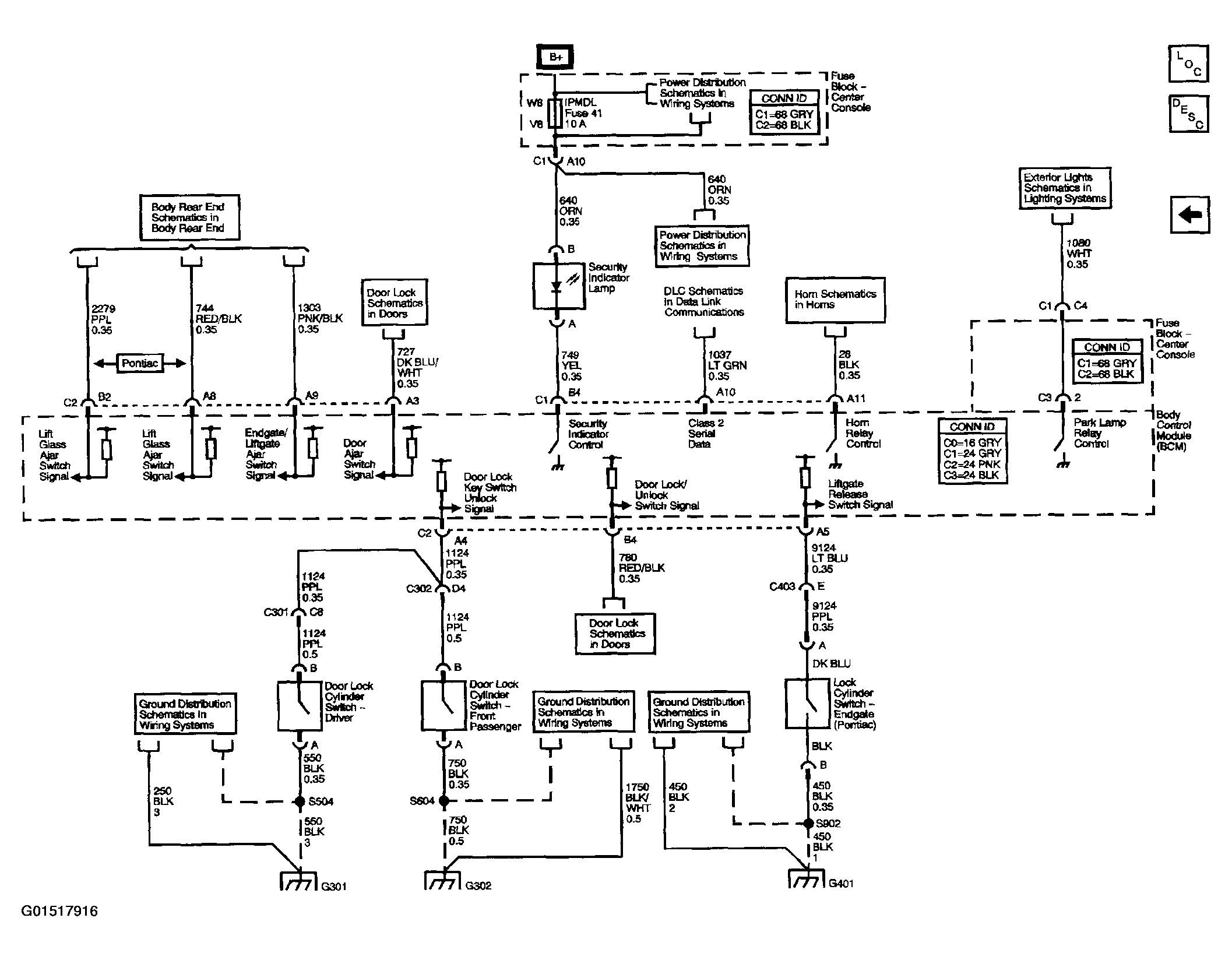

Fig 2: Theft Deterrent System Schematics (Indicators, Intrusion Detection & Warning)

Courtesy of GENERAL MOTORS CORP.

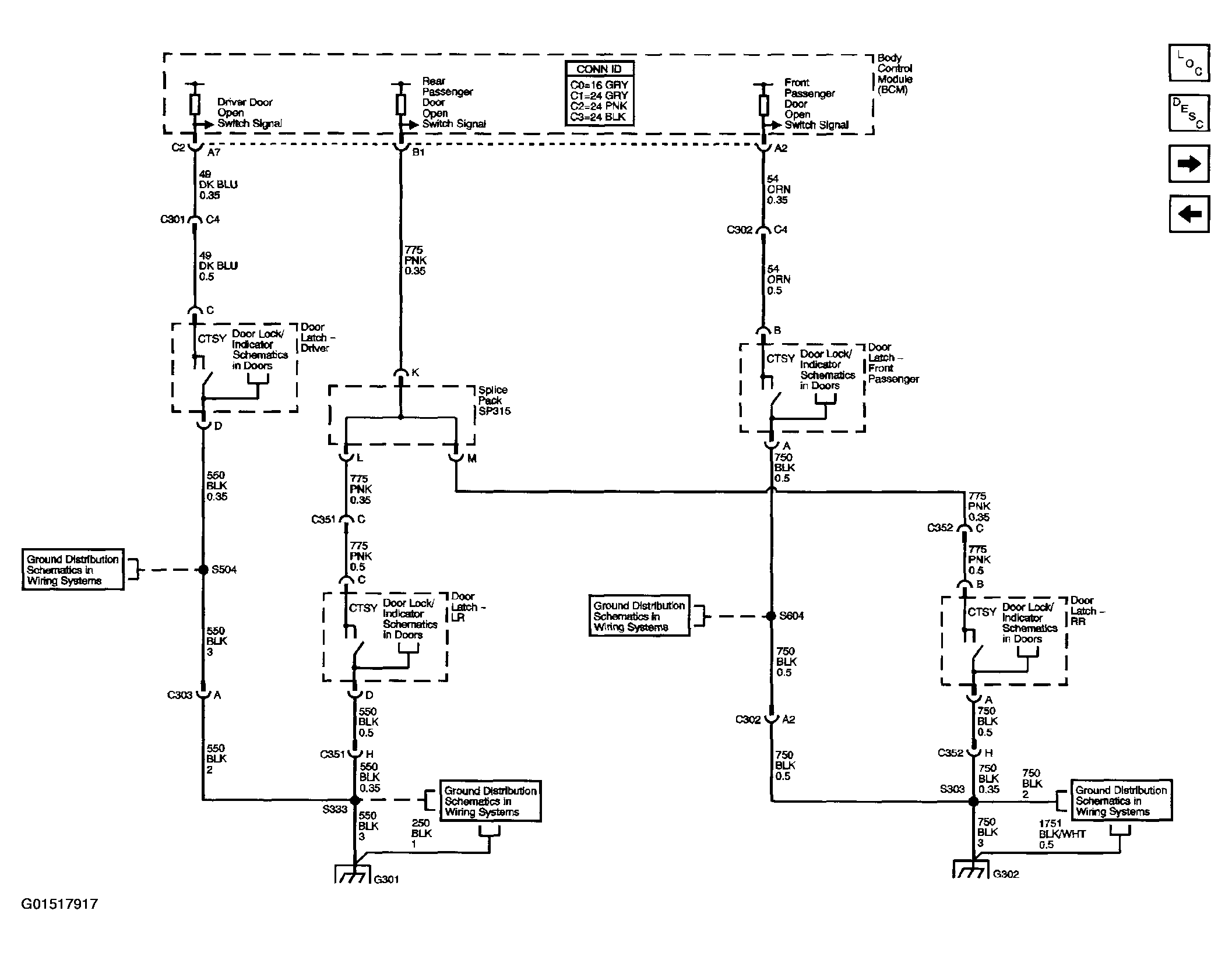

Fig 3: Theft Deterrent System Schematics (Door Switches)

Courtesy of GENERAL MOTORS CORP.

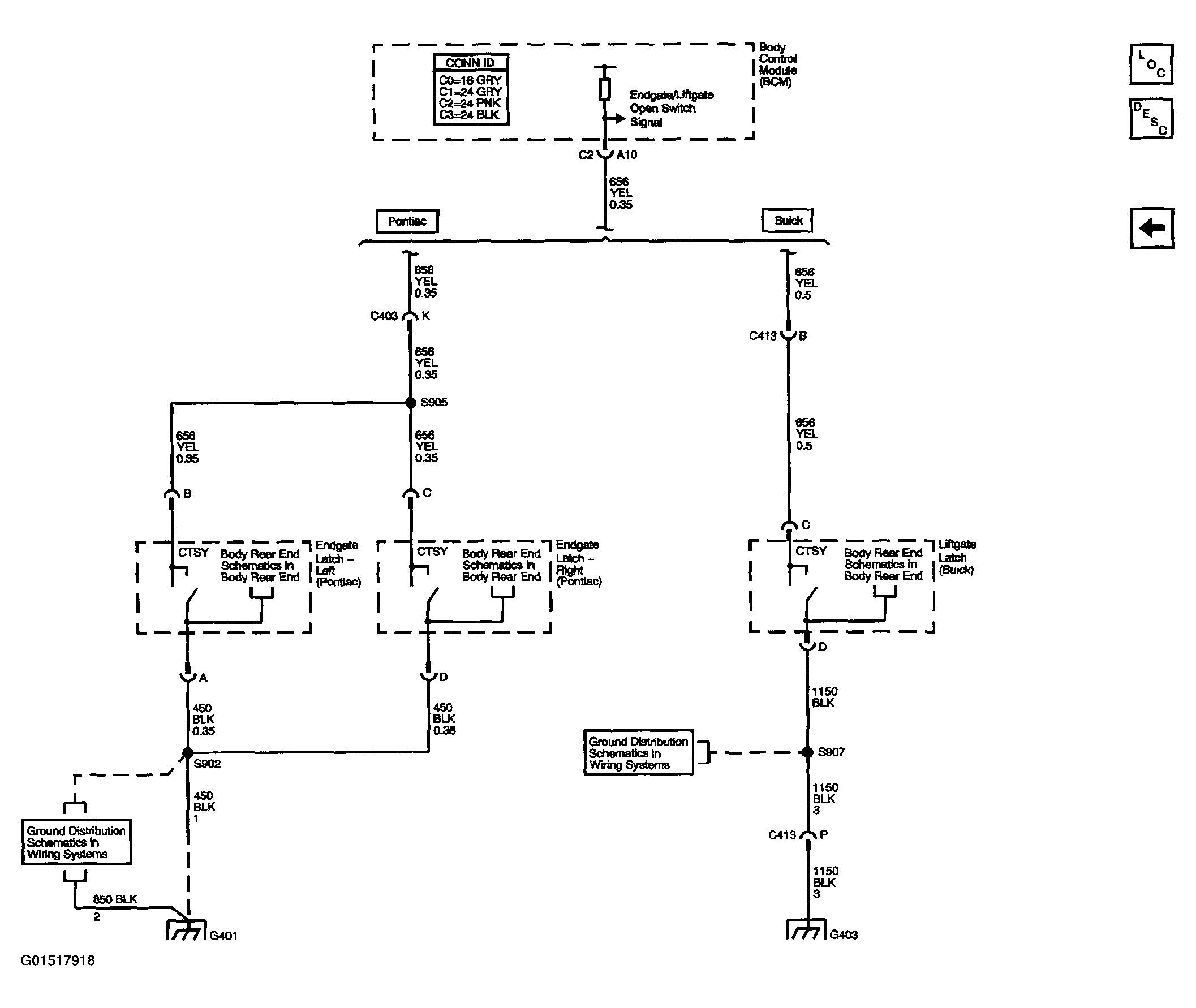

Fig 4: Theft Deterrent System Schematics (Lift Window, Endgate & Liftgate Switches)

Courtesy of GENERAL MOTORS CORP.
