Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

3. This step checks for a short to voltage.

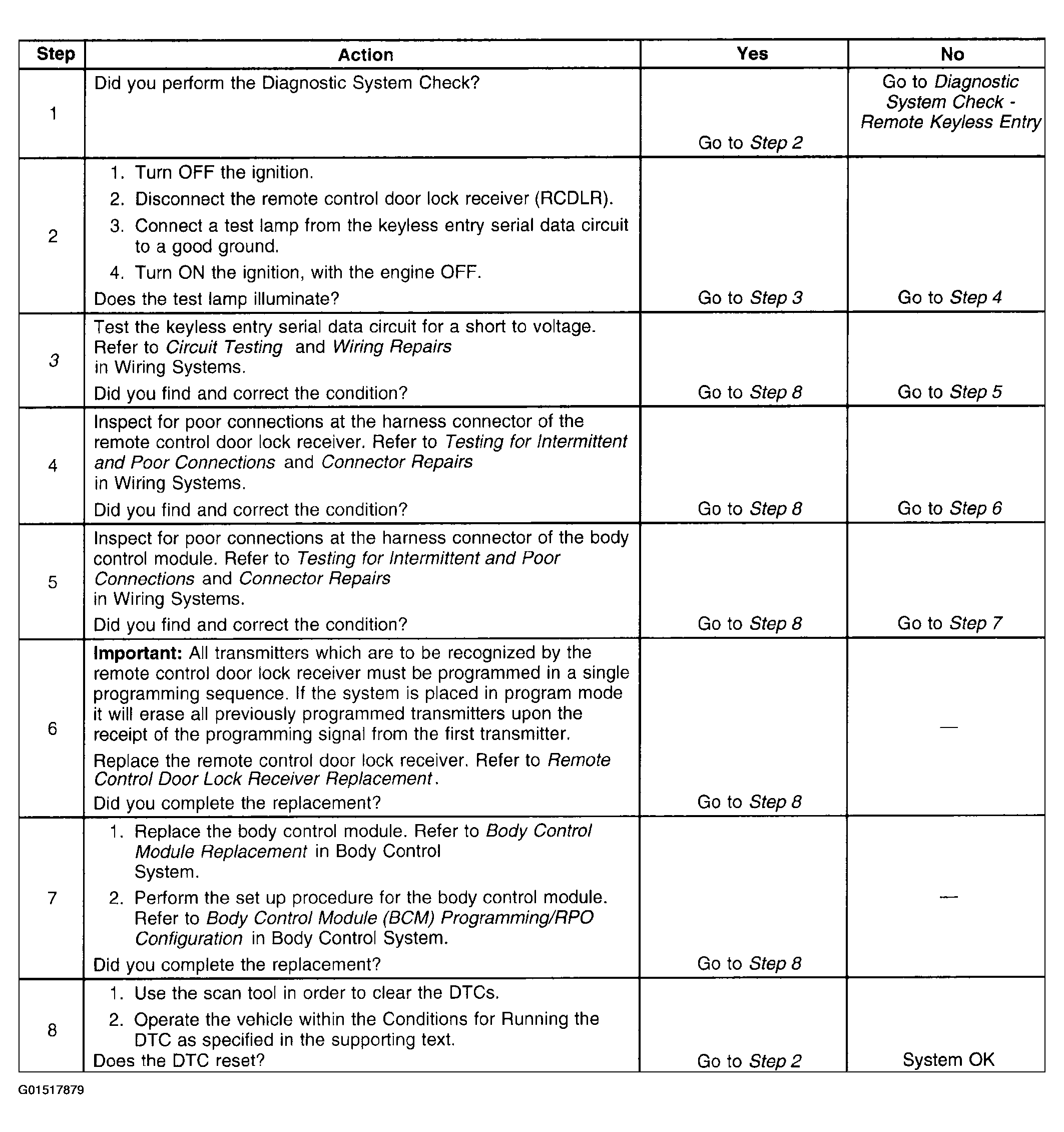

Fig 1: DTC B3101 Diagnosis
G01517879Courtesy of GENERAL MOTORS CORP.
