Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper seat belt guide loop attachment from the adjuster bracket. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .
  2. Remove the lower center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .
  3. Remove the upper center pillar trim panel from the center pillar, by pulling the upper center pillar trim panel to release the push-in retainers.

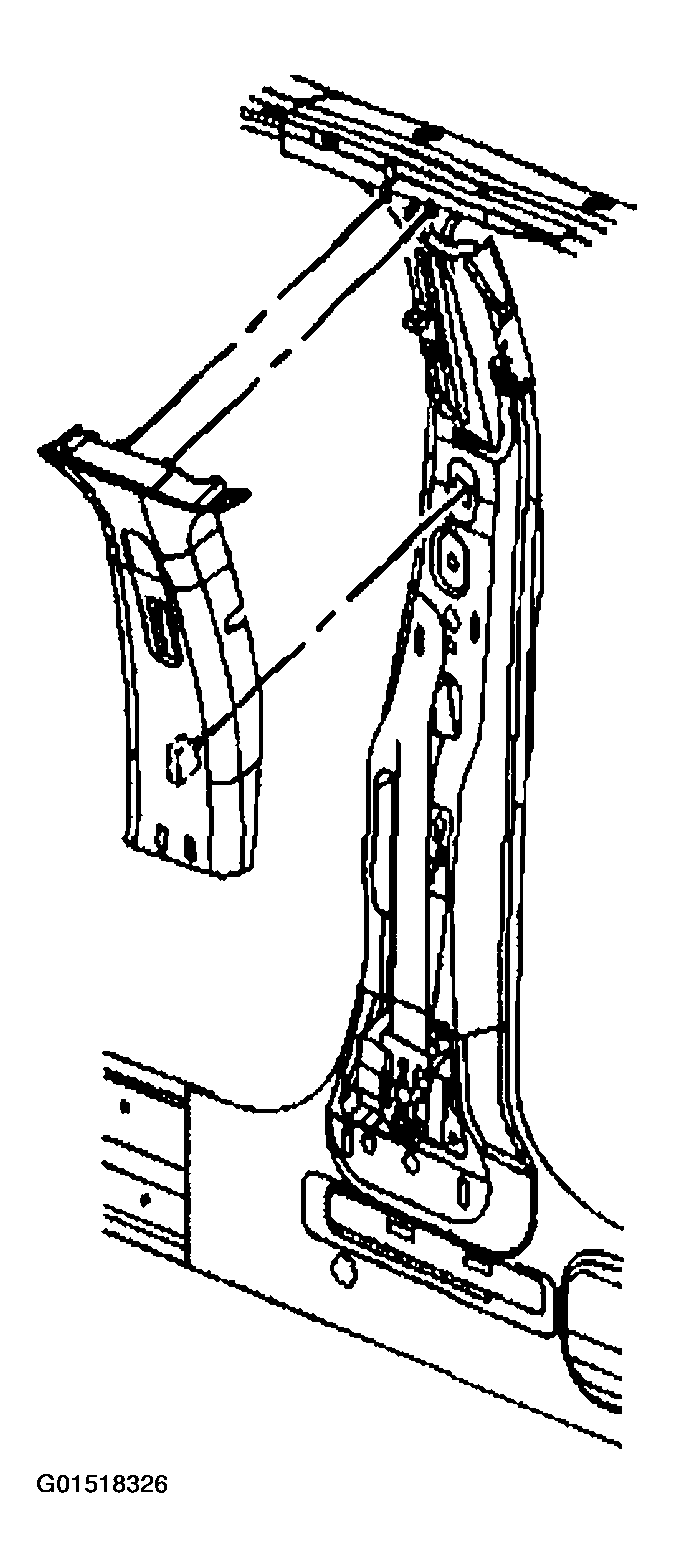

    Fig 1: Removing Procedure Of Trim Panel - Upper Center Pillar
    G01518326Courtesy of GENERAL MOTORS CORP.
