Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the upper center pillar trim panel to the center pillar.
  2. Install the upper center pillar trim panel by applying pressure at all the retainers locations until fully seated.
  3. Install the lower center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .
  4. Install the upper seat belt upper guide loop attachment to the adjuster bracket. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .

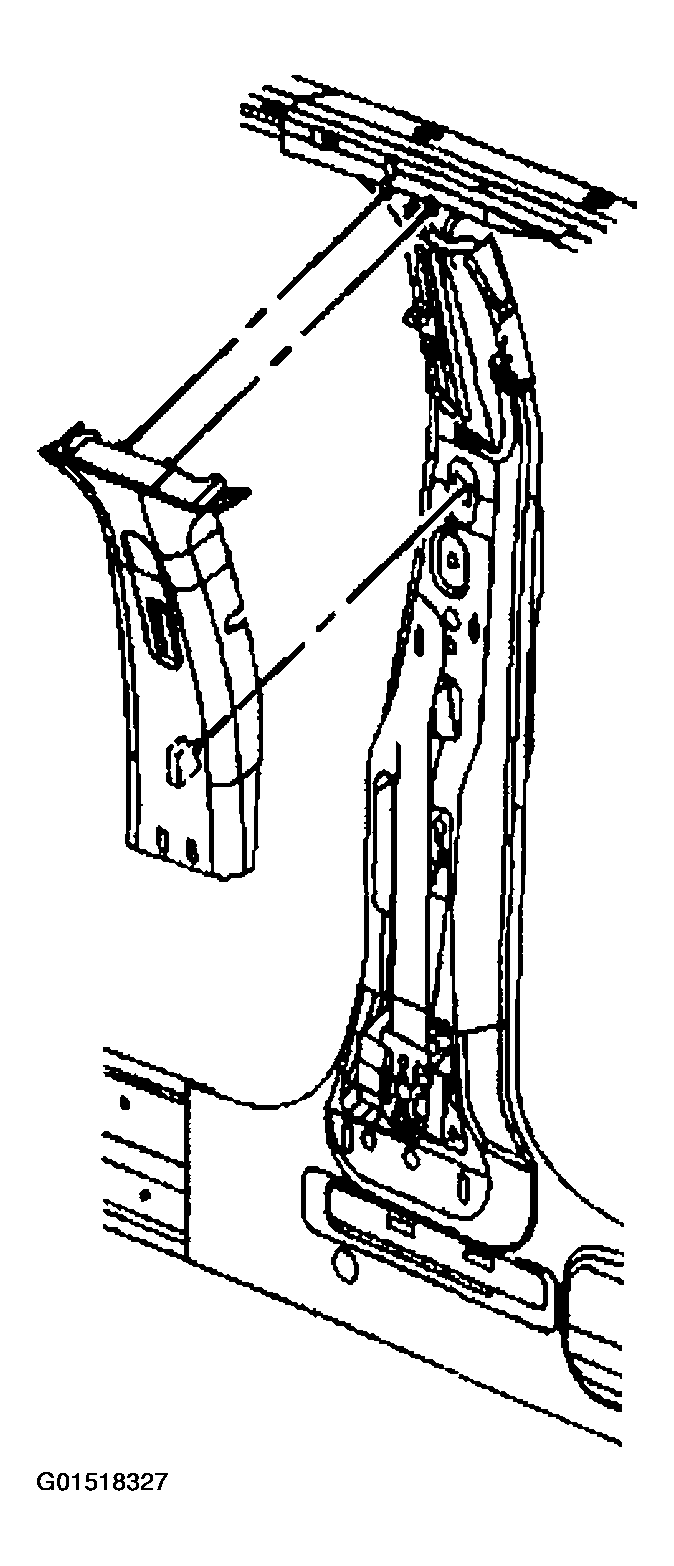

    Fig 1: Installing Procedure Of Trim Panel - Upper Center Pillar
    G01518327Courtesy of GENERAL MOTORS CORP.
