Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the push-in retainers on the upper trim panel to the inner panel.
  2. Install the push-in retainers, applying pressure on the panel to secure at all of the retainers locations.
  3. Install the rear seat belt guide loop to the rear upper quarter trim panel. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .

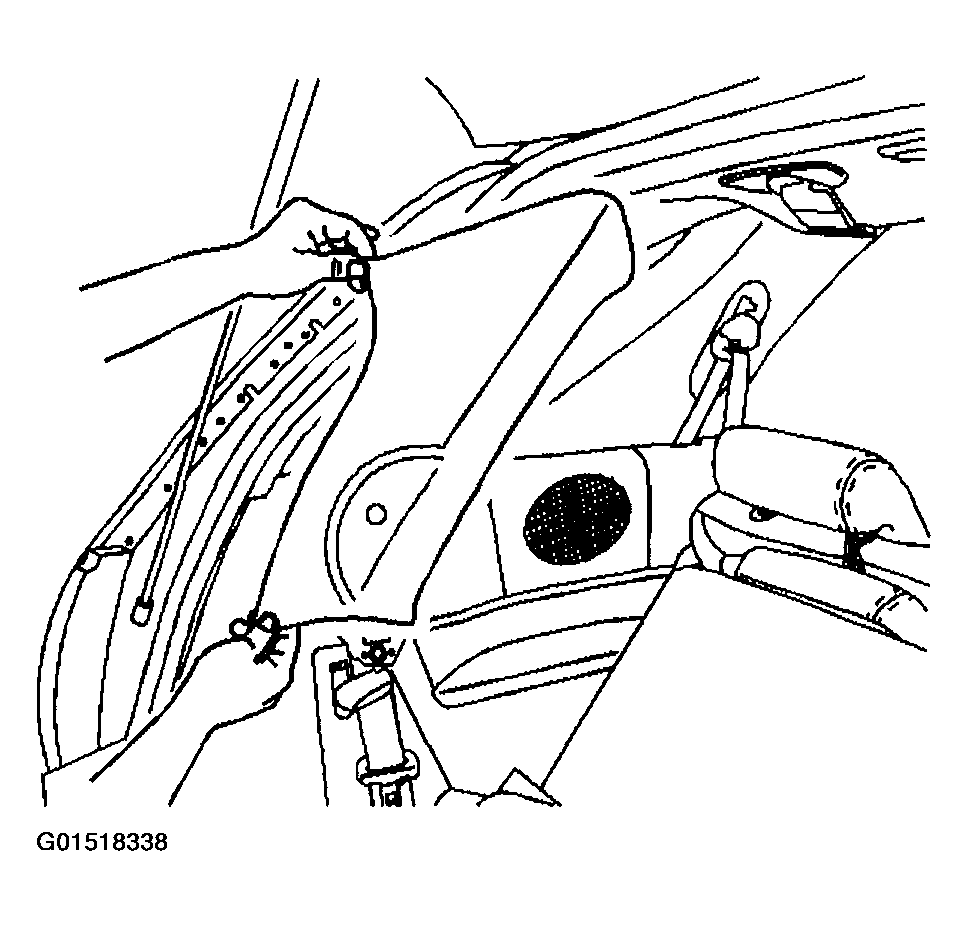

    Fig 1: Installing Procedure Trim Panel - Rear Quarter Upper (Rendezvous)
    G01518338Courtesy of GENERAL MOTORS CORP.
