Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  .
  2. Remove the rear seat belt. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .
  3. Remove the rear upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (AZTEK)  or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (RENDEZVOUS)  .
  4. Remove the bolts from the rear quarter lower trim panel at the cargo tie down locations.

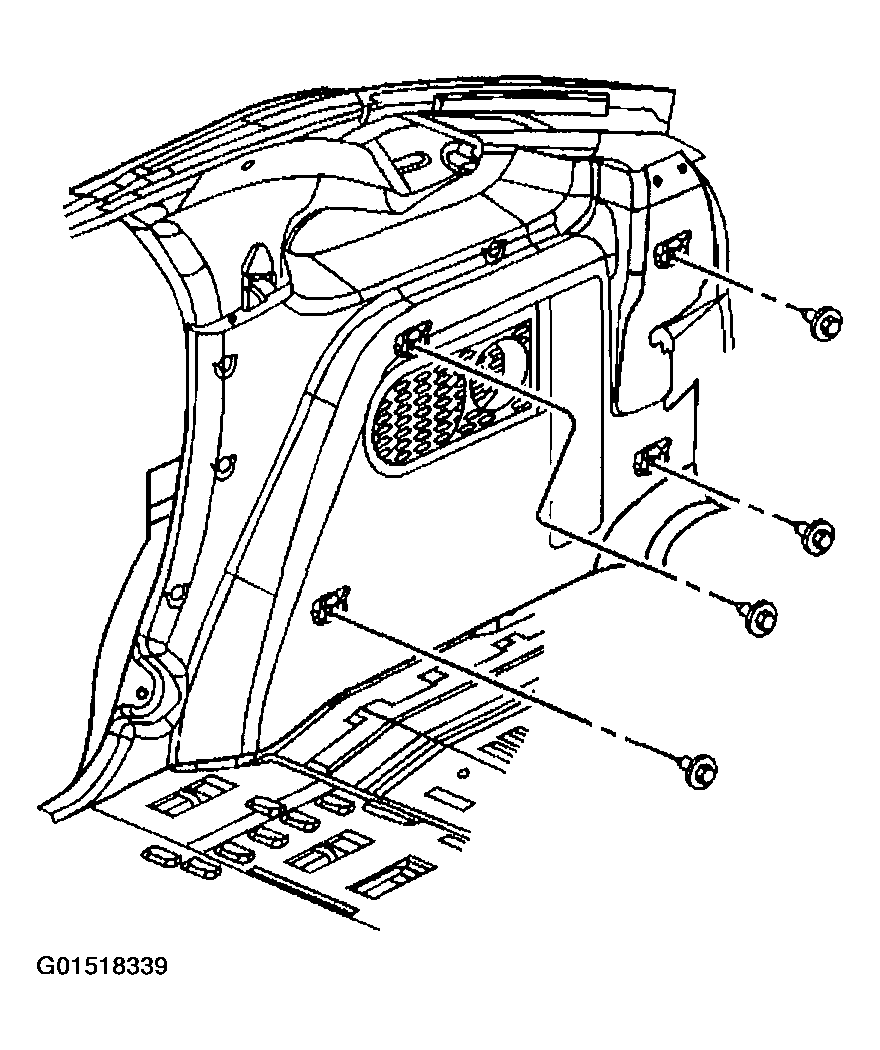

    Fig 1: Removing Procedure Trim Panel - Rear Quarter Lower (Aztek) (1 Of 2)
    G01518339Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear quarter lower trim panel from the inner panel by pulling the panel to release the push-in retainers.
  6. Remove the lower trim panel from the vehicle.

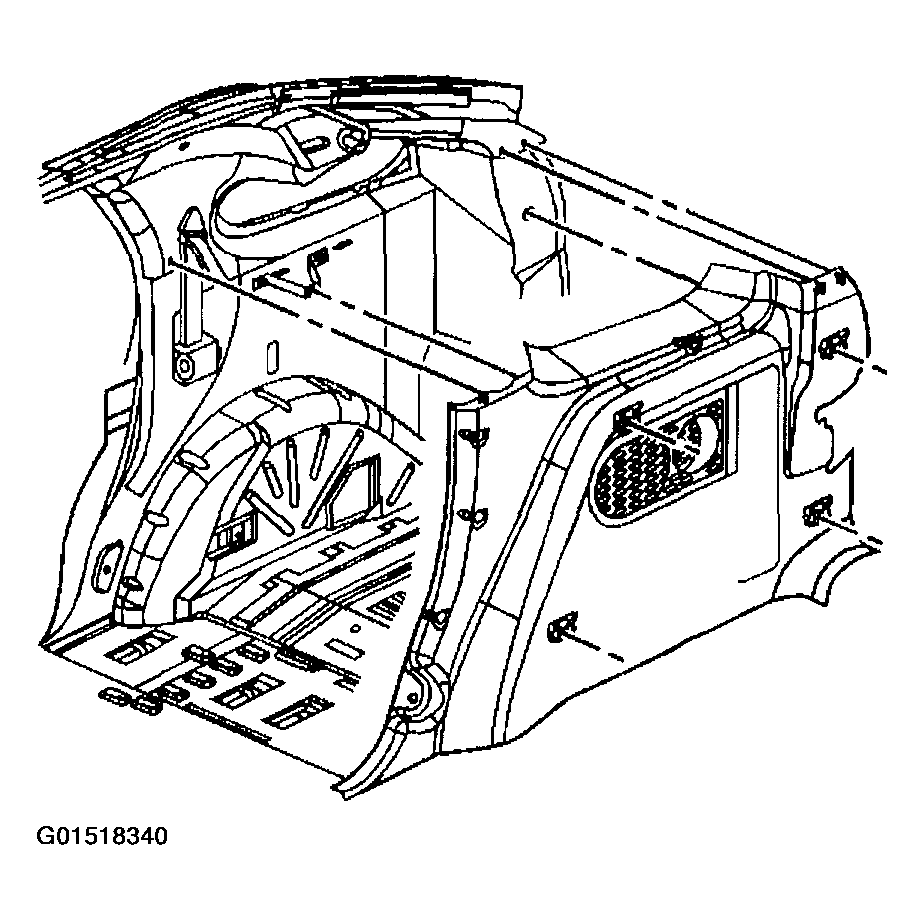

    Fig 2: Removing Procedure Trim Panel - Rear Quarter Lower (Aztek) (2 Of 2)
    G01518340Courtesy of GENERAL MOTORS CORP.
