Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the lower trim panel push-in retainers to the inner panel.

    Important:  Position the seat belt through the slotted opening between the upper and lower trim panel.

  2. Install the lower trim panel by applying pressure on the panel to secure all of the push-in retainer locations.

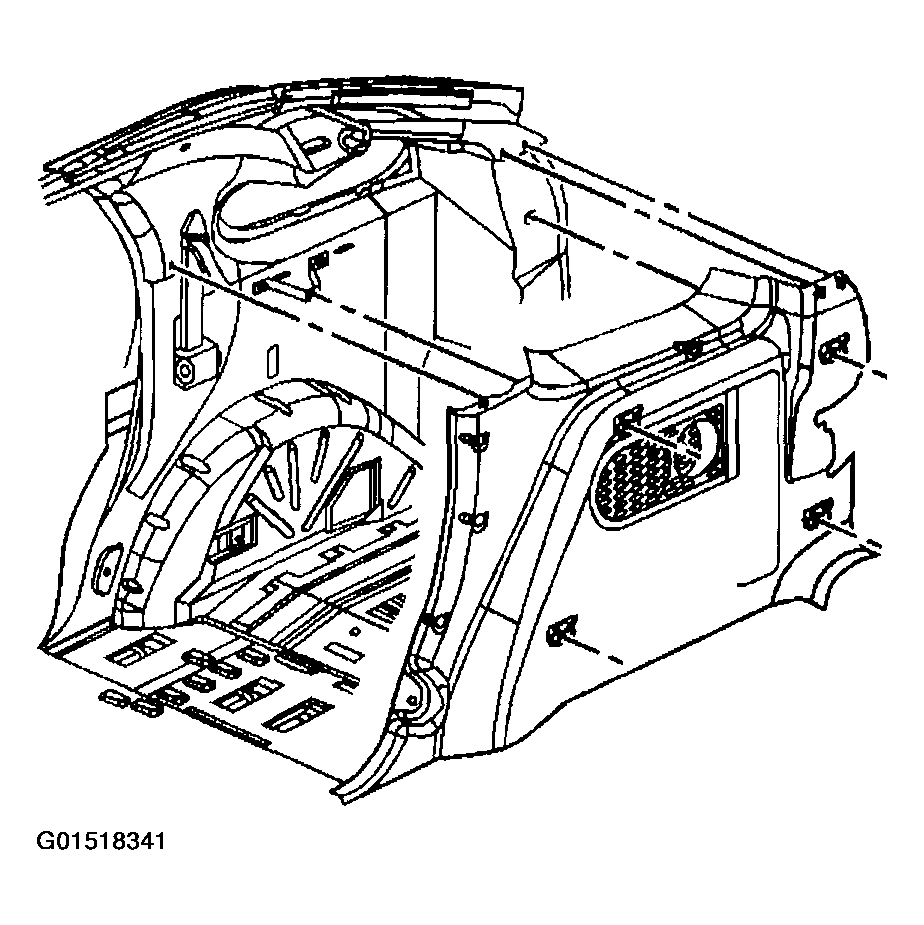

    Fig 1: Installing Procedure Trim Panel - Rear Quarter Lower (Aztek) (1 Of 2)
    G01518341Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the lower trim panel at the cargo tie down locations.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  4. Install the rear upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (AZTEK)  or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (RENDEZVOUS)  .
  5. Install the rear seat belt. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .
  6. Install the endgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  .

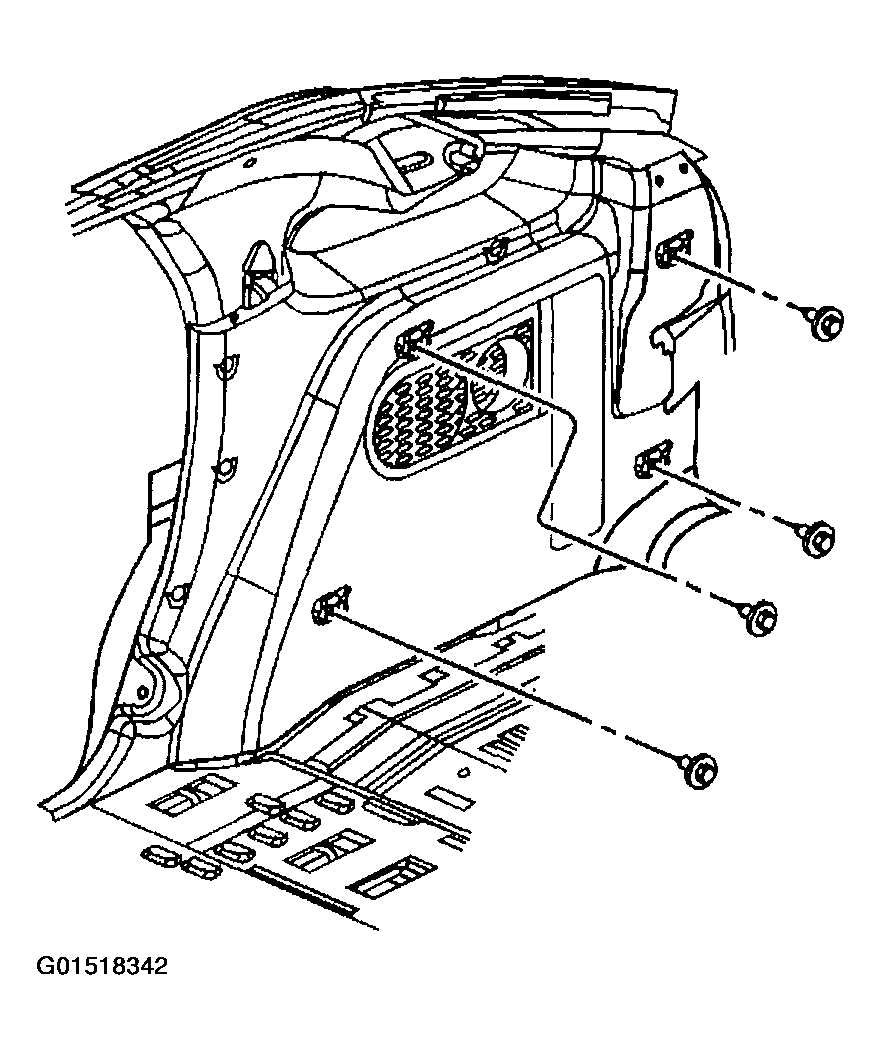

    Fig 2: Installing Procedure Trim Panel - Rear Quarter Lower (Aztek) (2 Of 2)
    G01518342Courtesy of GENERAL MOTORS CORP.
