Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt to the slot into the center lower trim panel.

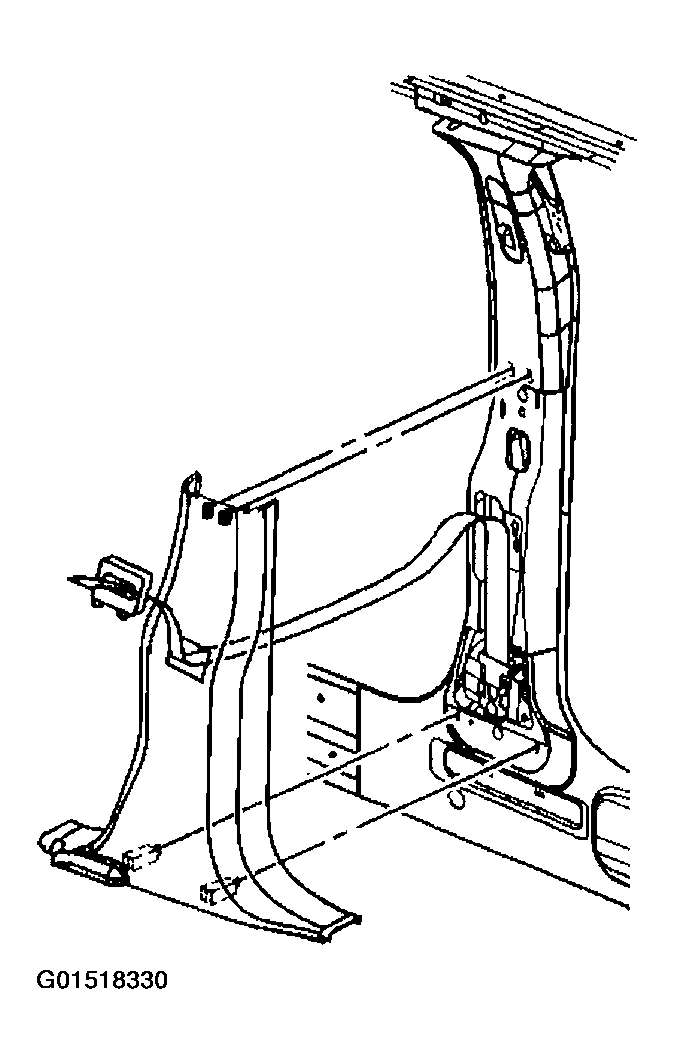

    Fig 1: Installing Procedure Of Trim Panel - Lower Center Pillar (1 Of 2)
    G01518330Courtesy of GENERAL MOTORS CORP.
  2. Align the center lower trim panel to the center pillar.
  3. Install the center lower trim panel push-in retainers, applying pressure at all the retainers locations until fully seated.
  4. Install the seat belt escutcheon to the center lower trim panel, applying pressure at all the retainers locations until fully seated.
  5. Install the upper seat belt guide loop attachment to the adjuster bracket. Refer to SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT .
  6. Install the front seat belt to the front seat. Refer to the following procedures in Seat Belts:
  7. Install the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  and DOOR SILL PLATE REPLACEMENT - REAR  .

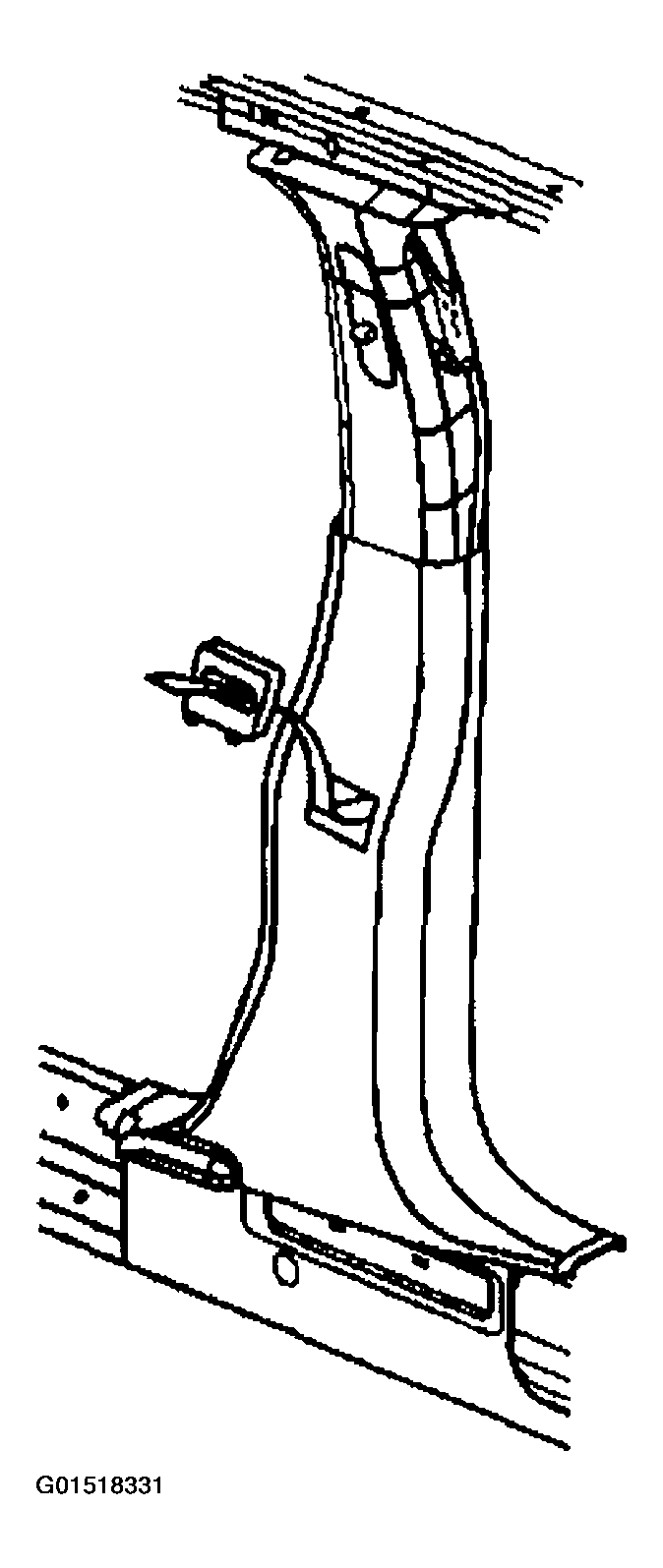

    Fig 2: Installing Procedure Of Trim Panel - Lower Center Pillar (2 Of 2)
    G01518331Courtesy of GENERAL MOTORS CORP.
