Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the cowl side trim panel to the retainer slots in the cowl.
  2. Install the cowl side trim panel by applying pressure at all the retainers locations until fully seated.
  3. Install the front door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  .

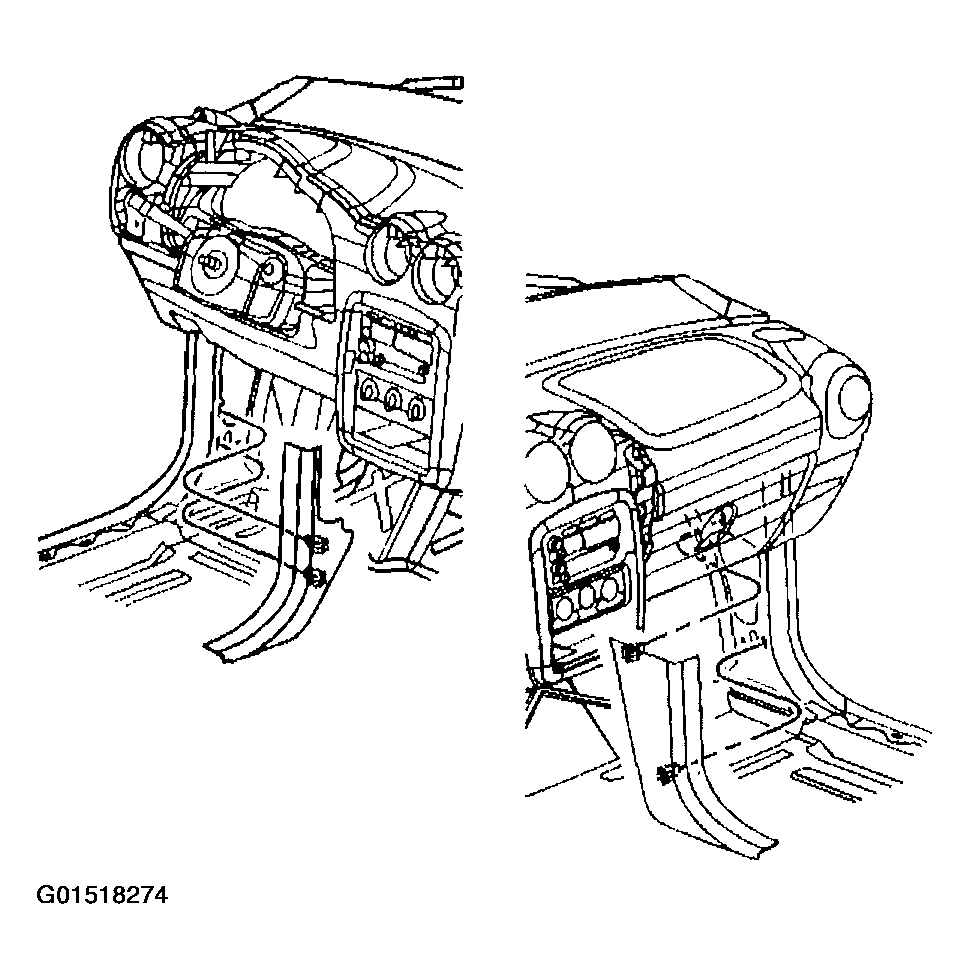

    Fig 1: Installing Procedure Of Trim Panel - Cowl Side
    G01518274Courtesy of GENERAL MOTORS CORP.
