Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the door with the handle and remove the door.
  2. Remove the screws holding the access plate.
  3. Disconnect the electrical connectors from the panel.
  4. Remove the panel.

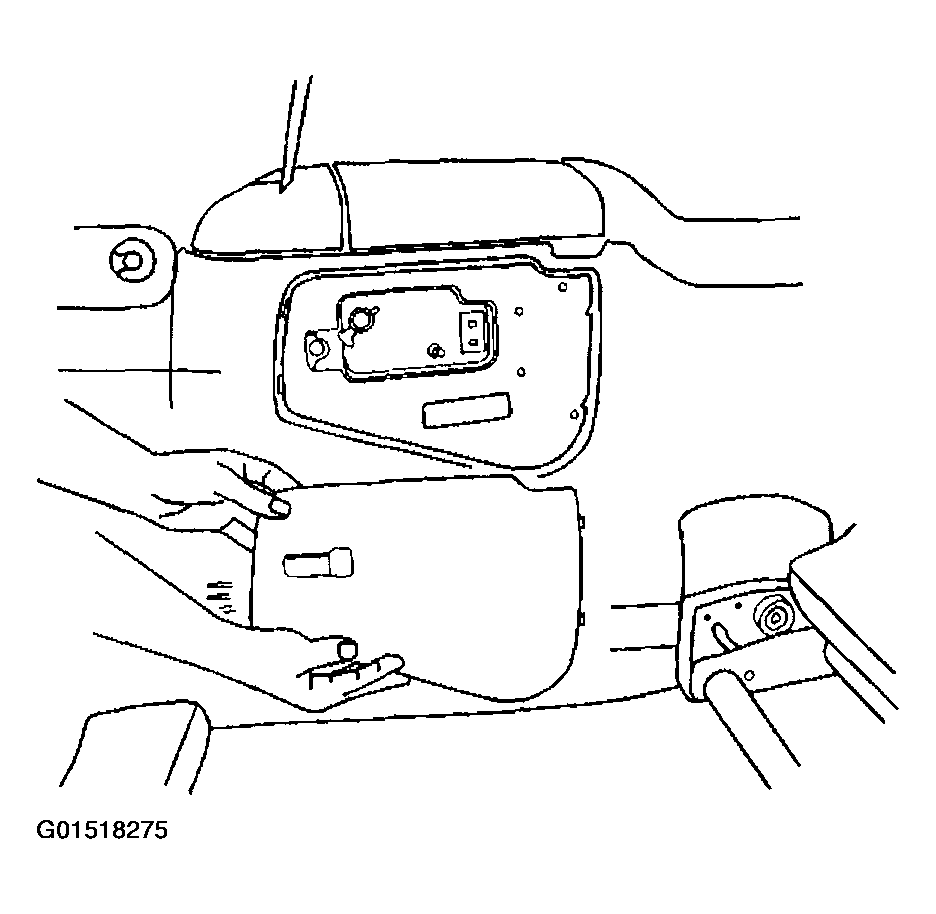

    Fig 1: Removing Procedure Of Trim Panel - Cargo Area Side
    G01518275Courtesy of GENERAL MOTORS CORP.
