Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the panel with the access hole.
  2. Connect the electrical connectors to the panel.
  3. Screw the panel to the cargo side area.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the door access panel cover and lock the door with handle.

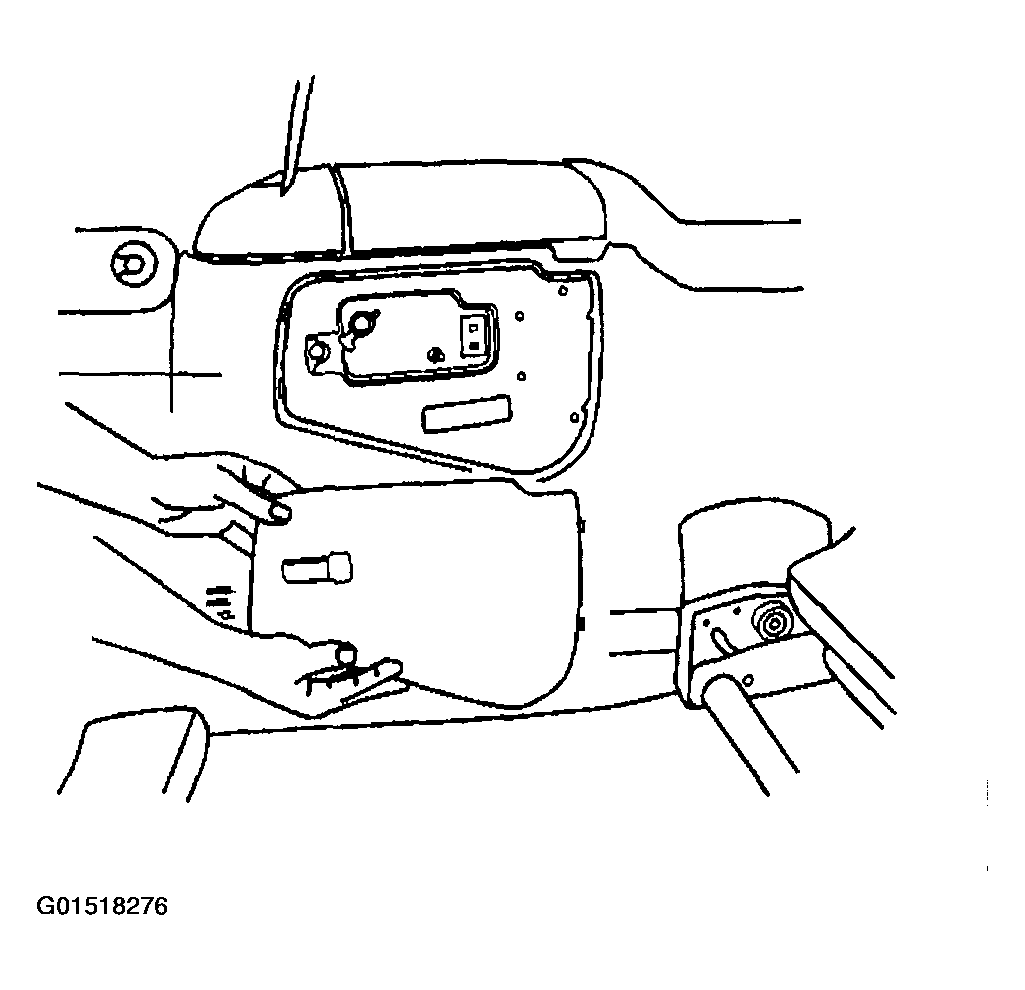

    Fig 1: Installing Procedure Of Trim Panel - Cargo Area Side
    G01518276Courtesy of GENERAL MOTORS CORP.
