Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear storage compartment to the seat anchor studs
  2. Install the seat anchor nuts to the rear storage compartment.

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft.)

  3. Close the rear storage compartment.
  4. Close the lift gate.

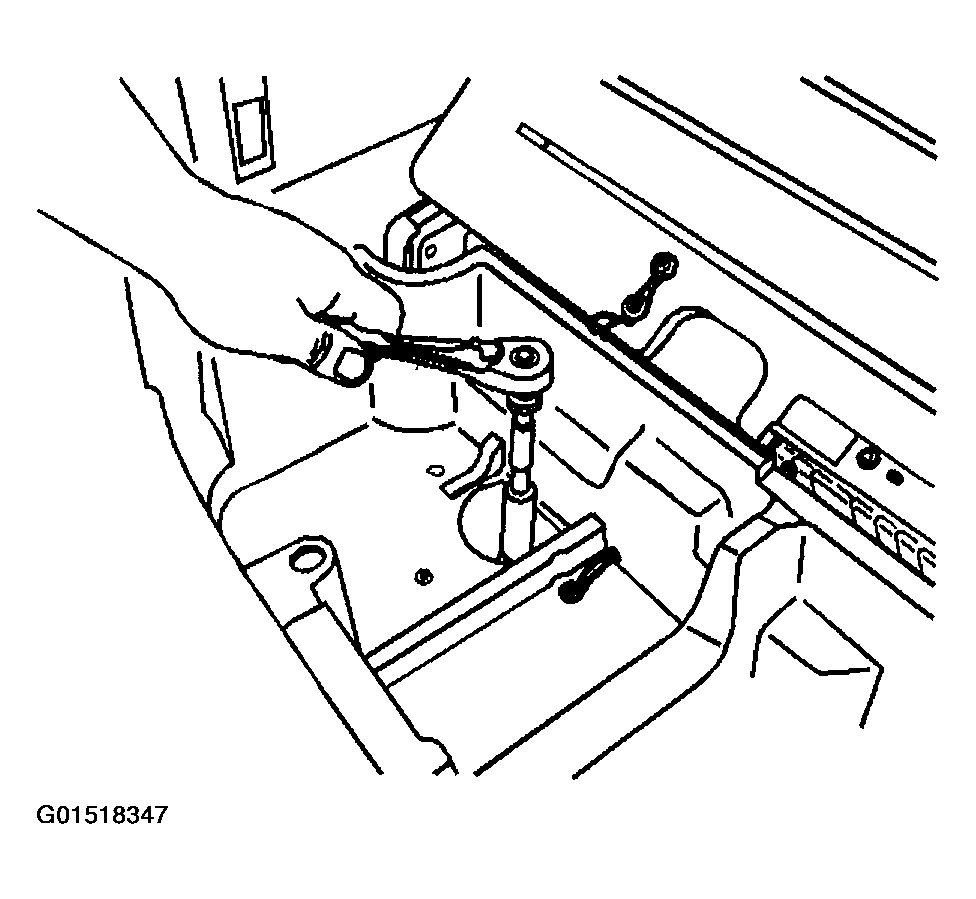

    Fig 1: Installing Procedure Of Storage Compartment - Rear (Rendezvous)
    G01518347Courtesy of GENERAL MOTORS CORP.
