Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the windshield garnish molding to the through on the upper instrument panel trim panel.
  2. Align the windshield garnish molding to the retainers slots in the windshield pillar.
  3. Install the windshield garnish molding, applying pressure at all the retainer locations until fully seated.

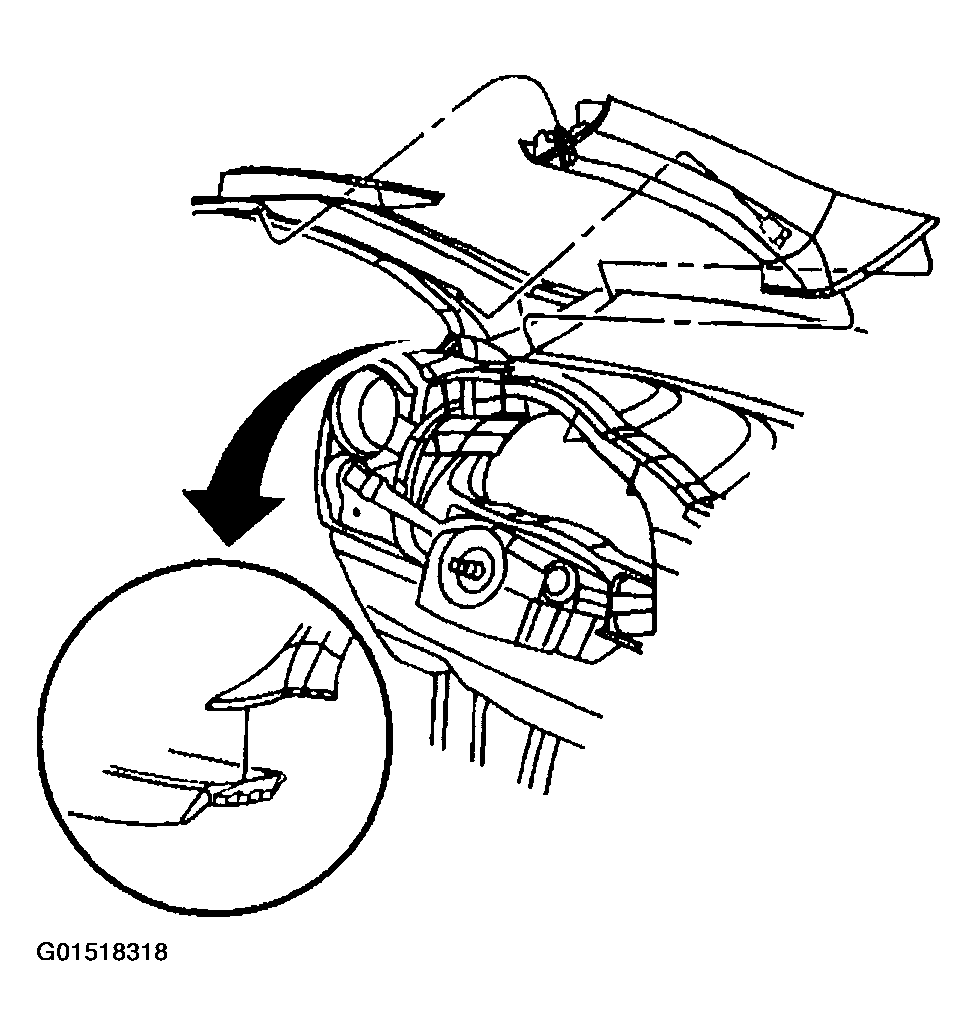

    Fig 1: Installing Procedure Of Garnish Molding - Windshield Pillar
    G01518318Courtesy of GENERAL MOTORS CORP.
