Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door sill plate.

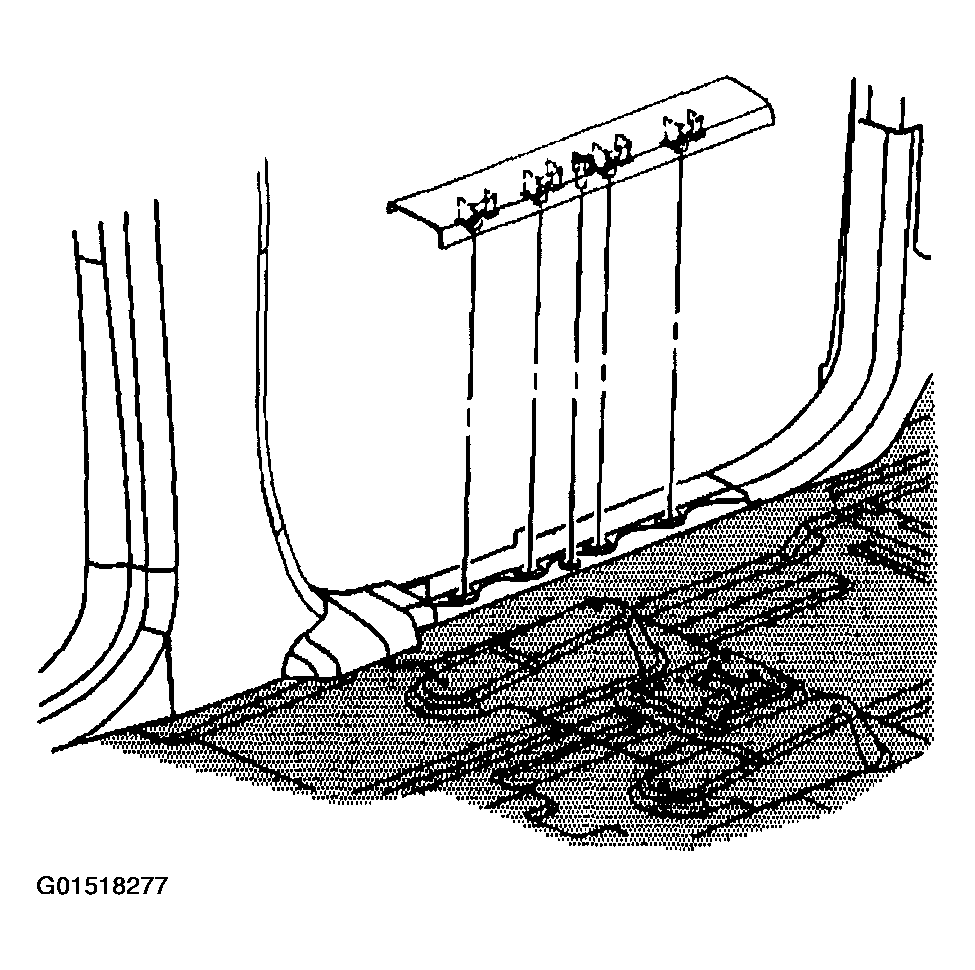

Remove the front door sill plate from the door sill.

Fig 1: Removing Procedure Of Door Sill Plate - Front (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

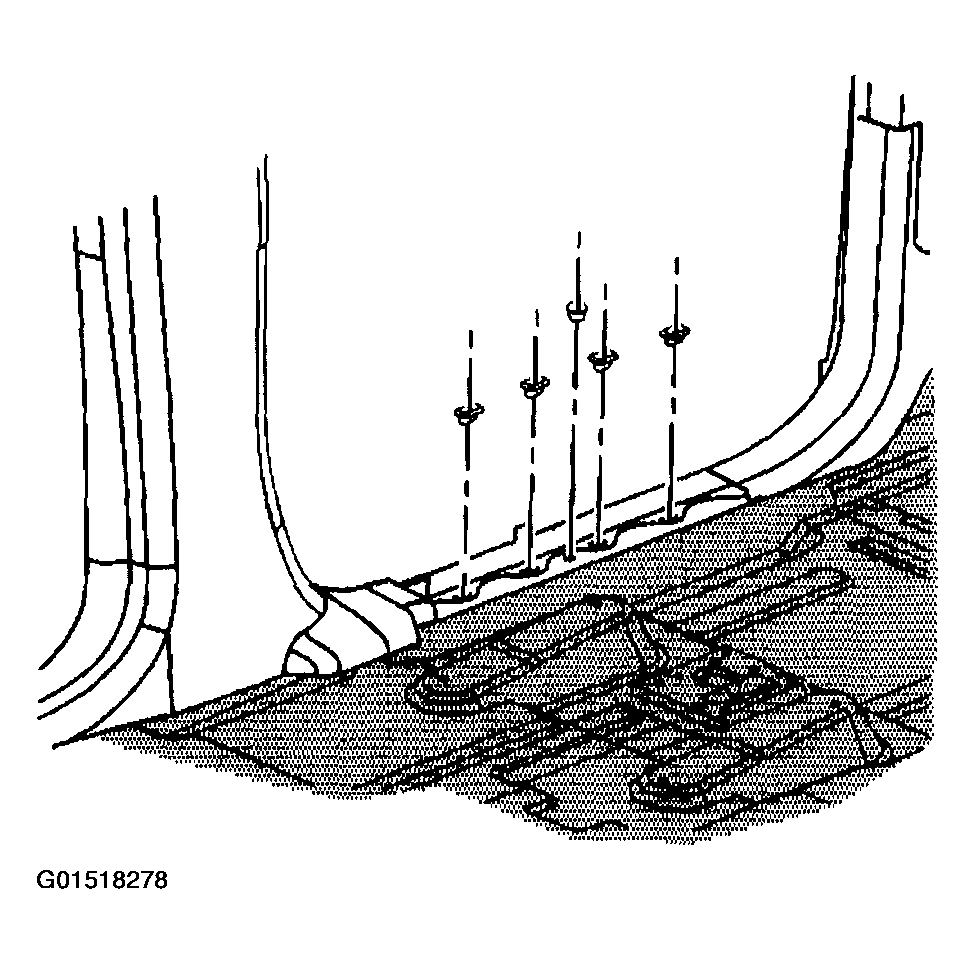

Remove the front door sill plate push-in retainers if required.

Fig 2: Removing Procedure Of Door Sill Plate - Front (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
