Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the endgate sill plate push-in retainers and the 4-way locator, pressing in place until fully seated.

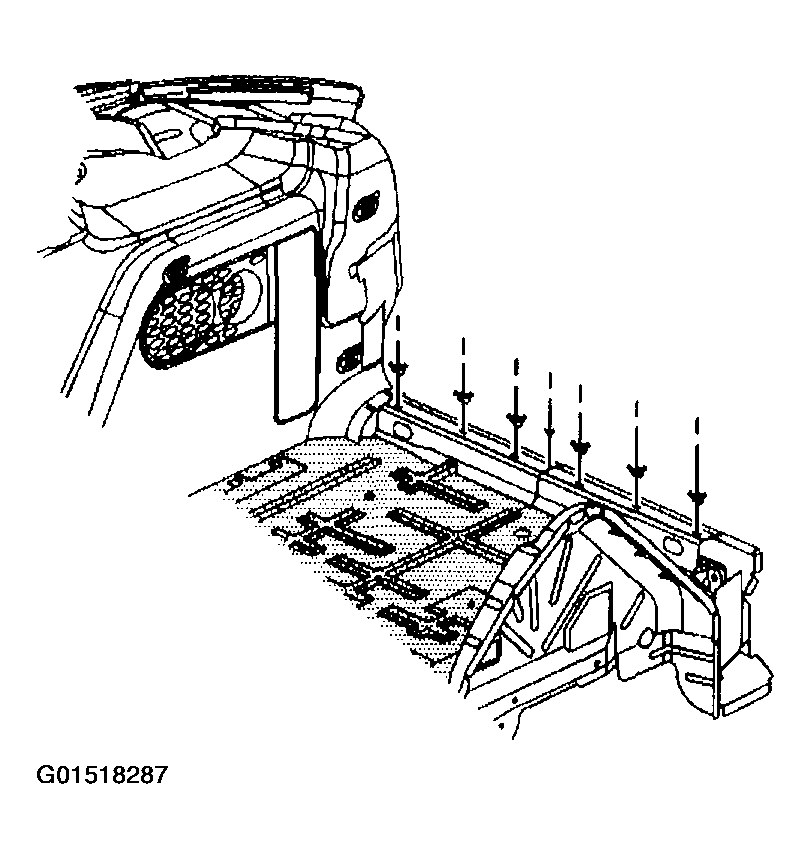

Fig 1: Installing Procedure Of Door Sill Plate - End Gate (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Align the endgate sill plate to the 4-way locator and the push-in retainers.
Install the endgate sill plate to the push-in retainers, applying pressure to secure at all tab locations.

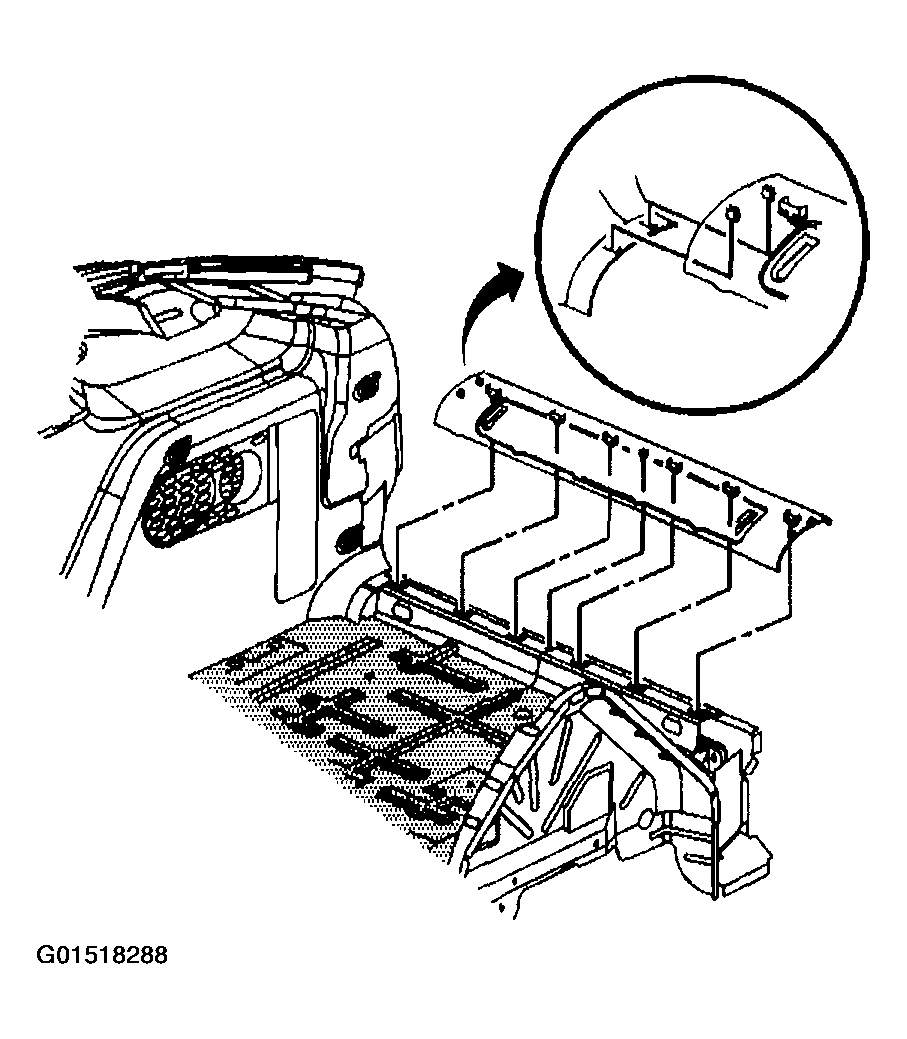

Fig 2: Installing Procedure Of Door Sill Plate - End Gate (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
