Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the OnStar® door panel from the overhead console.
  2. Disconnect the OnStar® electrical connectors.
  3. Remove the screws from the overhead console.

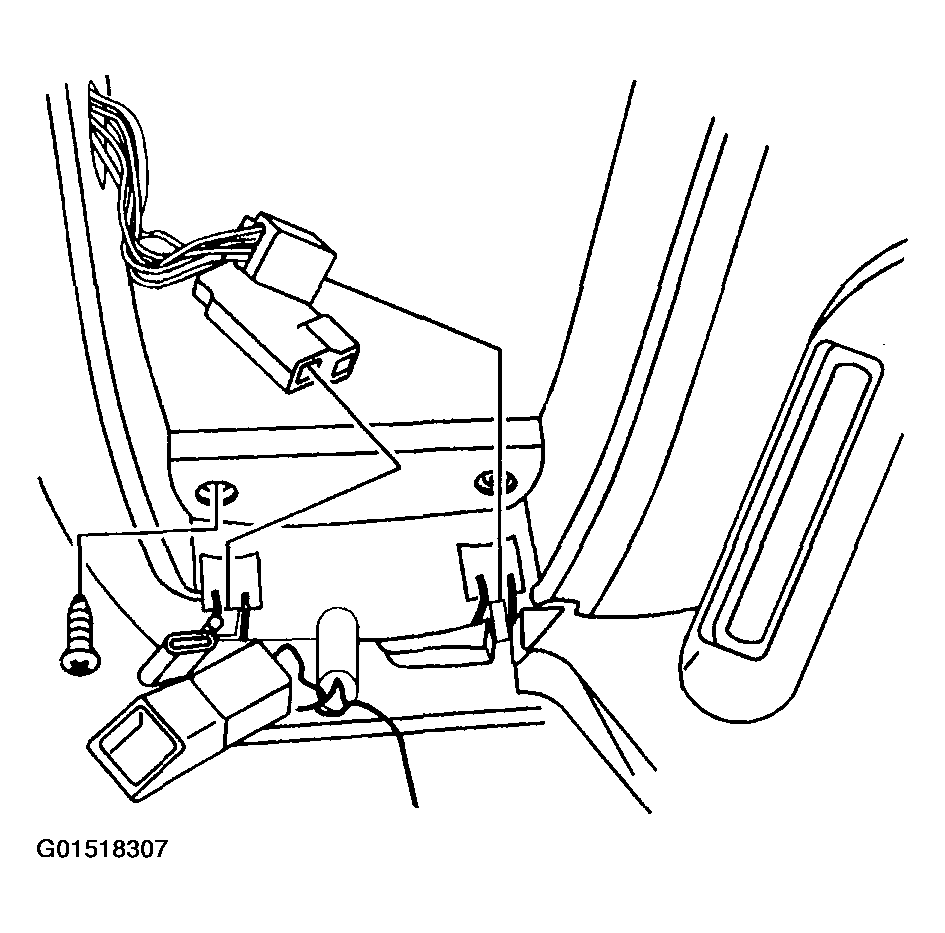

    Fig 1: Removing Procedure Of Console - Overhead (Rendezvous) (1 Of 2)
    G01518307Courtesy of GENERAL MOTORS CORP.
  4. Open the garage door panel and remove the screws.
  5. Disconnect the electrical connectors.
  6. Remove the overhead console from the vehicle.

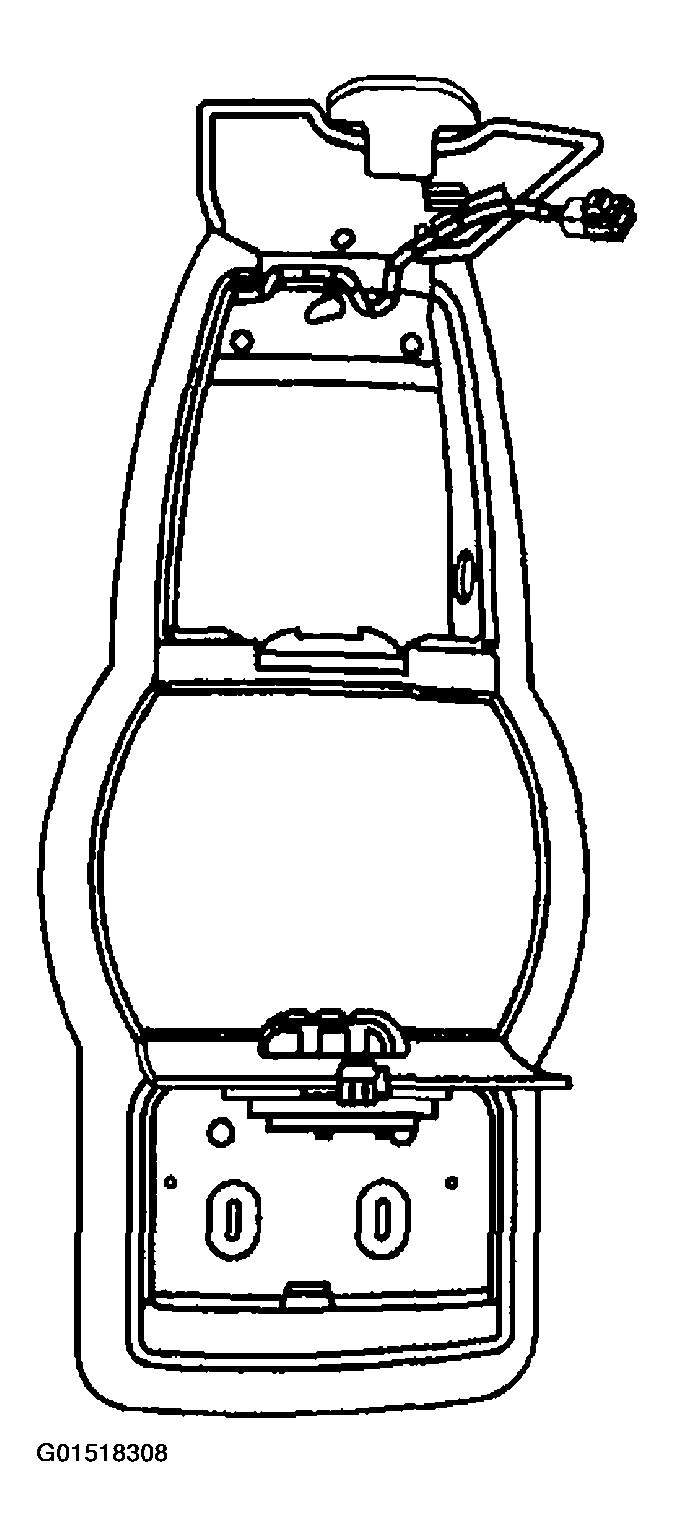

    Fig 2: Removing Procedure Of Console - Overhead (Rendezvous) (2 Of 2)
    G01518308Courtesy of GENERAL MOTORS CORP.
