Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors for the garage door and the OnStar® consoles.
  2. Install the overhead console to the vehicle.

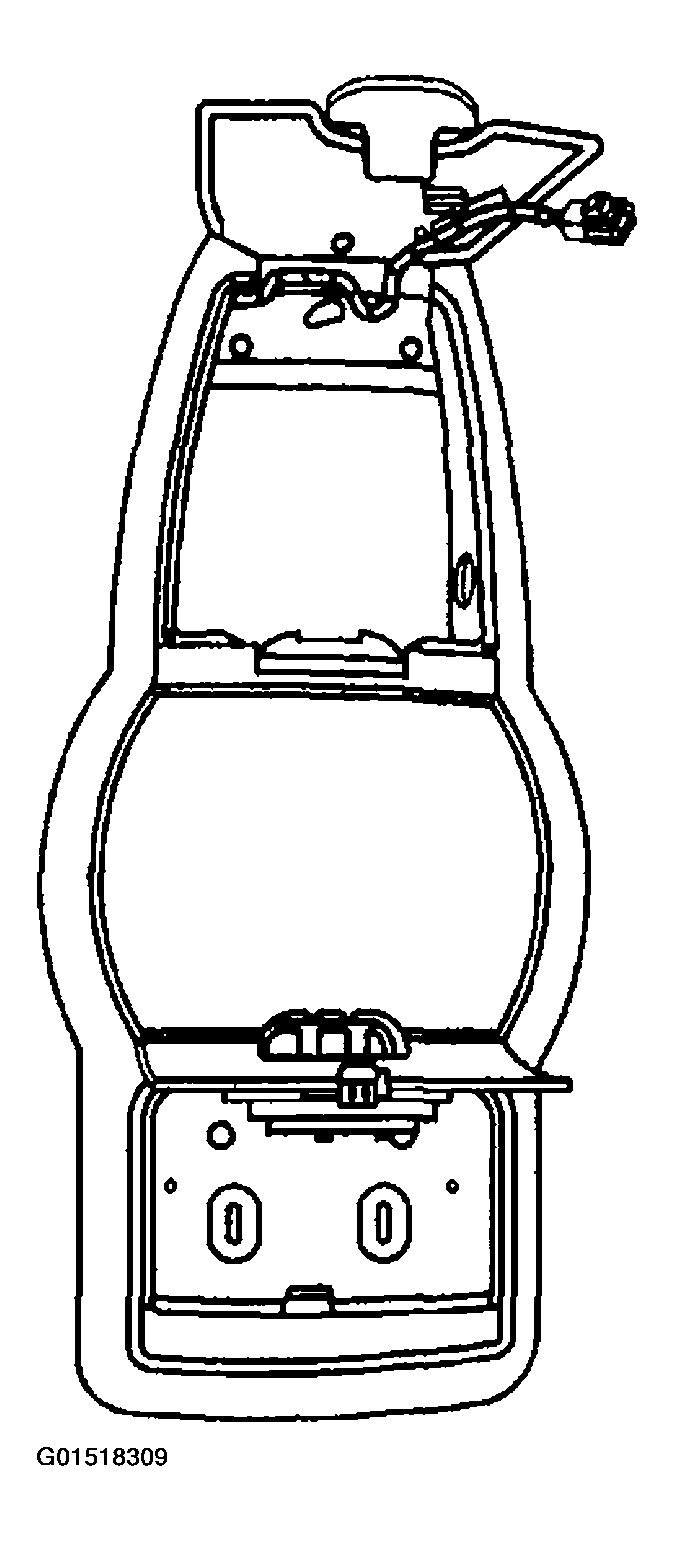

    Fig 1: Installing Procedure Of Console - Overhead (Rendezvous) (1 Of 2)
    G01518309Courtesy of GENERAL MOTORS CORP.
  3. Install the overhead console screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Close the garage door panel and the OnStar® door on the overhead console.

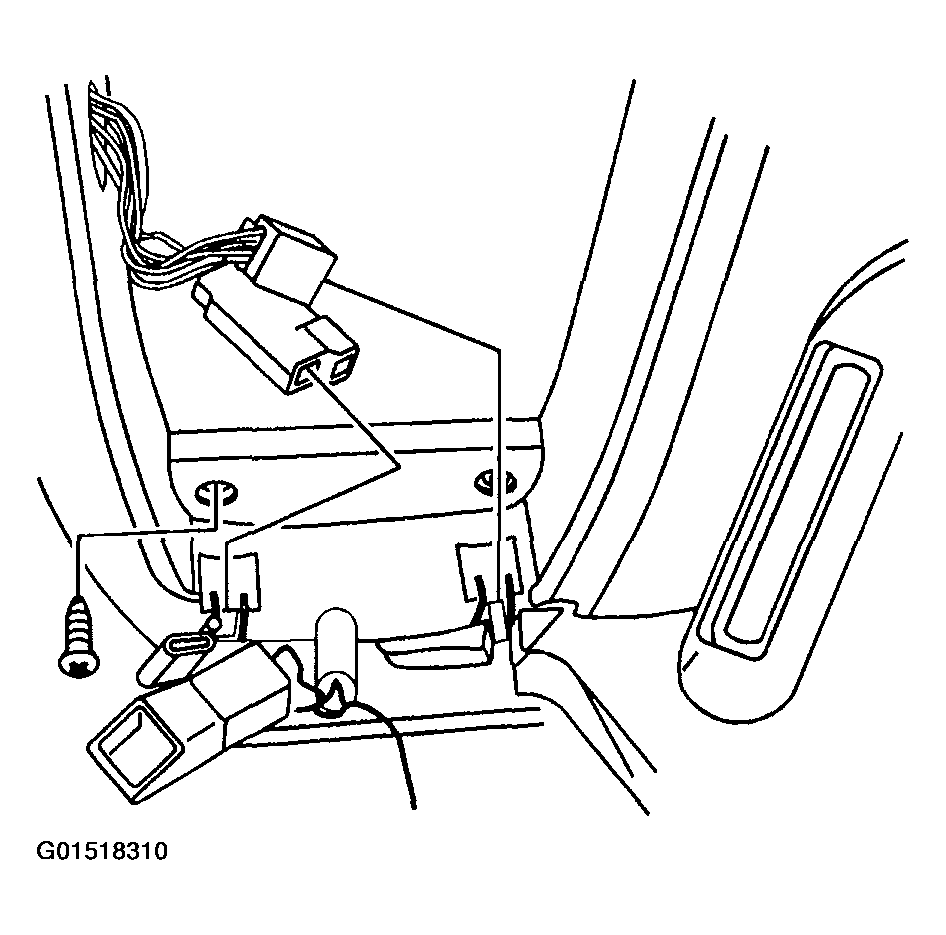

    Fig 2: Installing Procedure Of Console - Overhead (Rendezvous) (2 Of 2)
    G01518310Courtesy of GENERAL MOTORS CORP.
