Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seats. Refer to the following procedures in Seats:
- SEAT REPLACEMENT -- REAR BUCKET .
- SEAT REPLACEMENT -- REAR 50-50 SPLIT .
Release the T-pin retainer in the anchor plate bezel using a small flat-bladed tool.

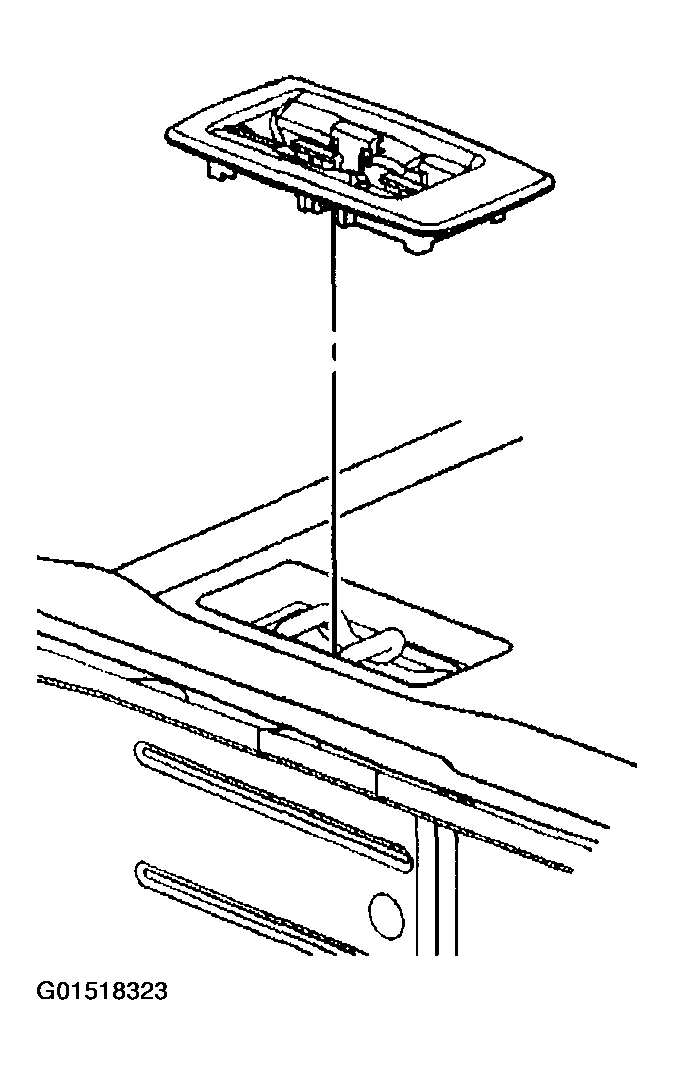

Fig 1: Removing Procedure Of Carpet Trim Plate - Rear Floor (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Remove the anchor plate bezel from the floor.

Fig 2: Removing Procedure Of Carpet Trim Plate - Rear Floor (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
