Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the anchor plate bezel to the floor.

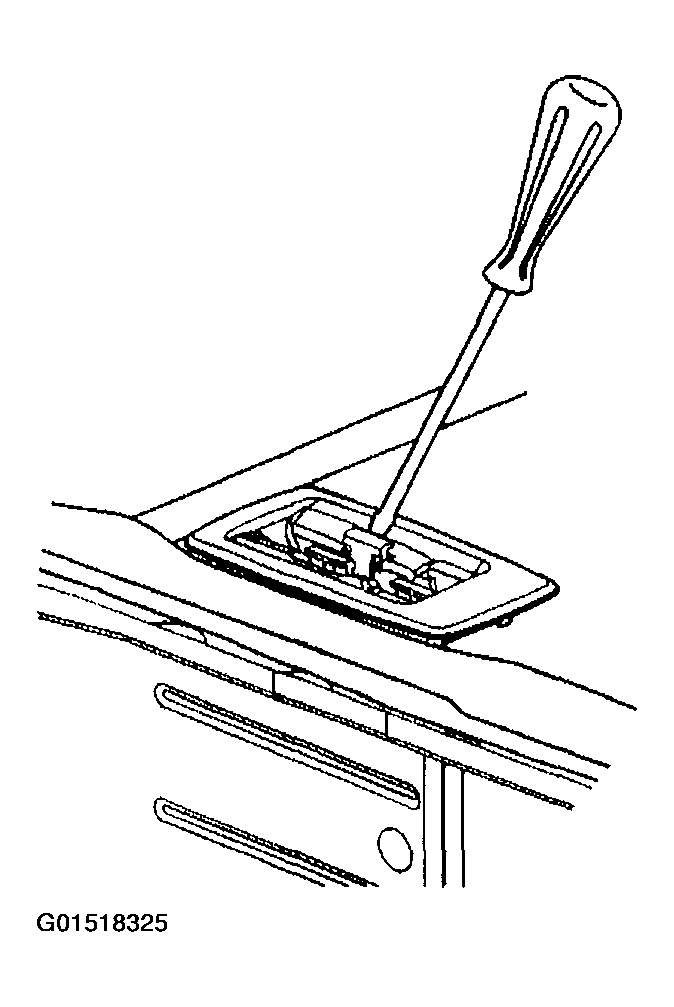

Fig 1: Installing Procedure Of Carpet Trim Plate - Rear Floor (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the T-pin on the anchor plate using a small flat-bladed tool, pressing into place until fully seated.
Install the rear seats. Refer to the following procedures in Seats:
- SEAT REPLACEMENT -- REAR BUCKET .
- SEAT REPLACEMENT -- REAR 50-50 SPLIT .

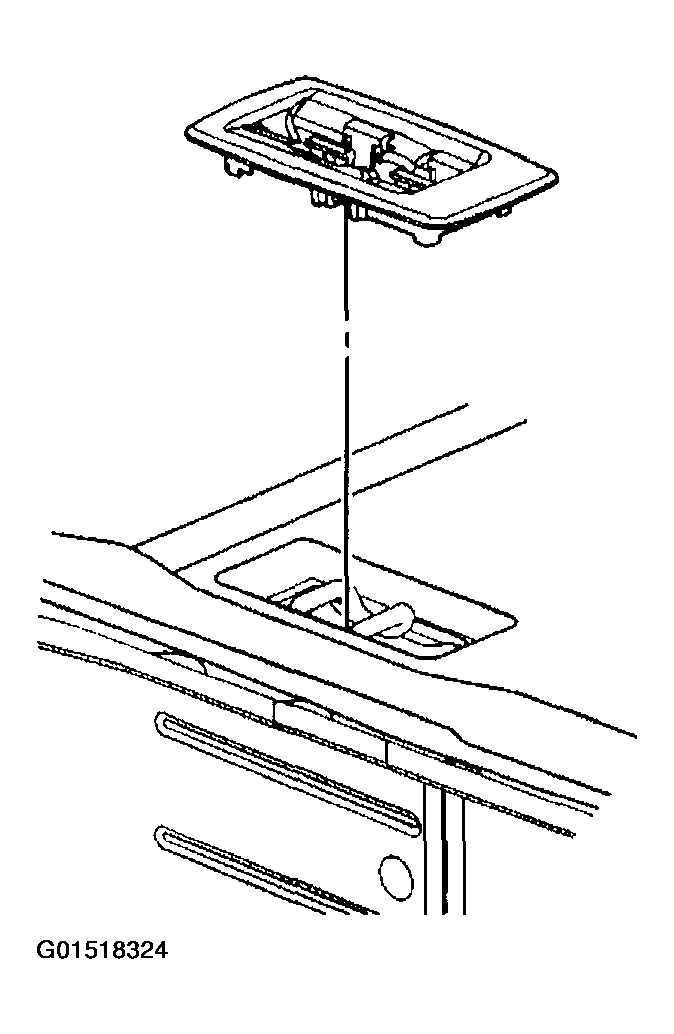

Fig 2: Installing Procedure Of Carpet Trim Plate - Rear Floor (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
