Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

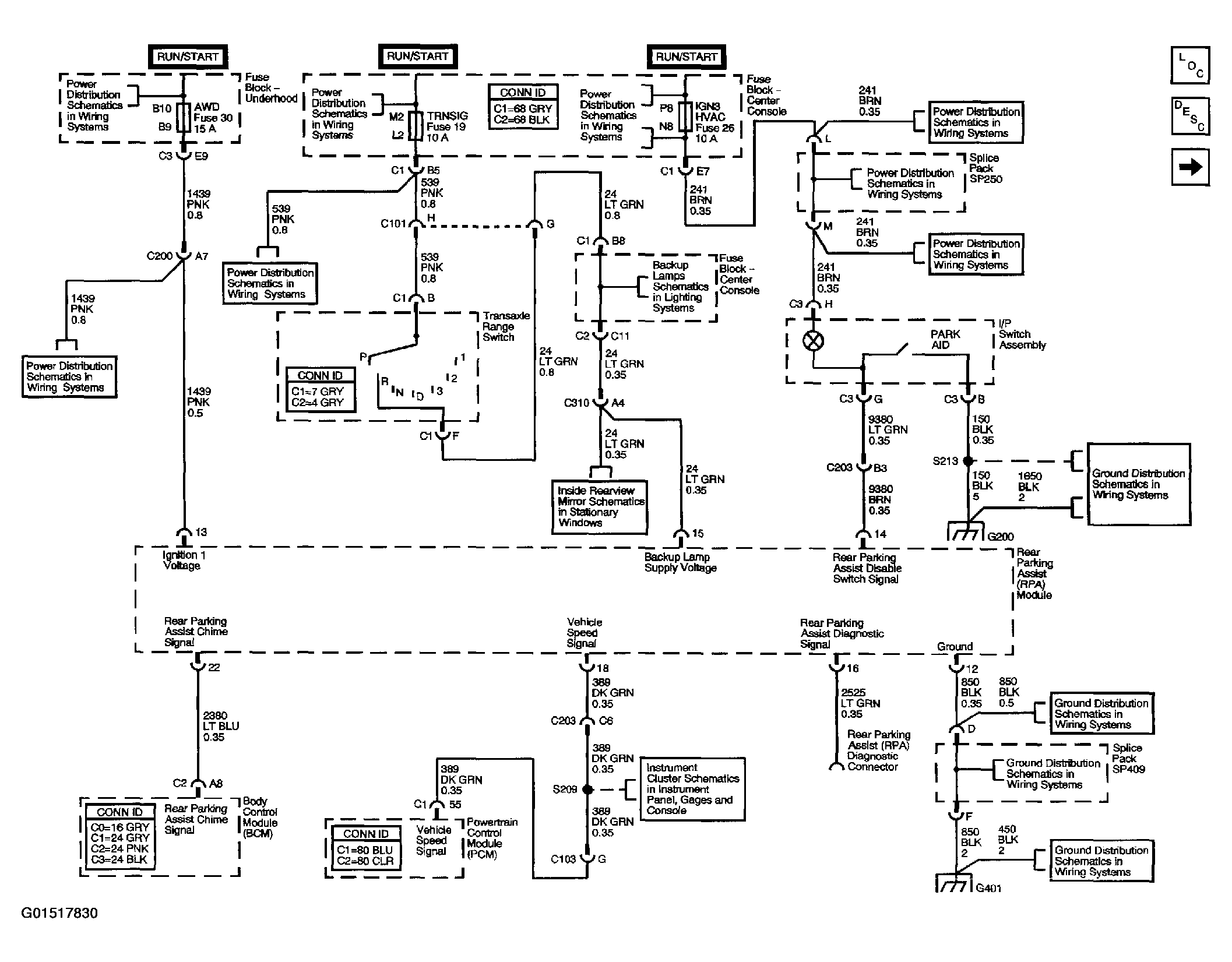

Fig 1: Rear Parking Assist Schematic - Rear Parking Assist Module Power & Ground

Courtesy of GENERAL MOTORS CORP.

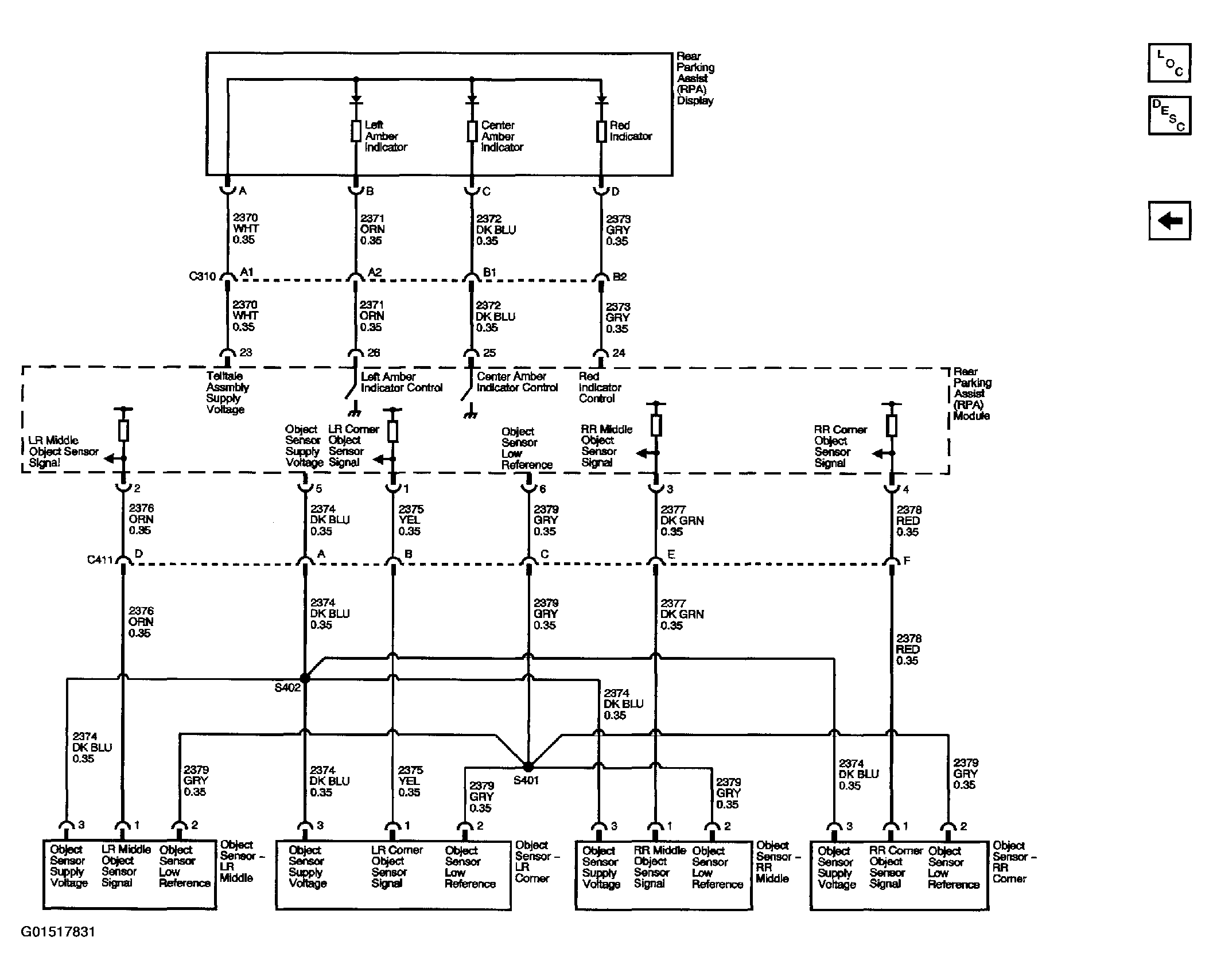

Fig 2: Rear Parking Assist Schematic - Object Sensors

Courtesy of GENERAL MOTORS CORP.
