Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position your fingers between the headliner and the information center telltale assembly bezel and gently pull down to release the display bezel retainers.
    Fig 1: Releasing Display Bezel Retainers
    G01517846Courtesy of GENERAL MOTORS CORP.
  2. Use a small flat-bladed tool to release the locking tab at the rear of the telltale assembly.
    Fig 2: Releasing Locking Tab At Rear Of Telltale Assembly
    G01517847Courtesy of GENERAL MOTORS CORP.
  3. Tilt the information center telltale assembly down and pull down to remove.
  4. Disconnect the electrical connector from the information center telltale assembly.

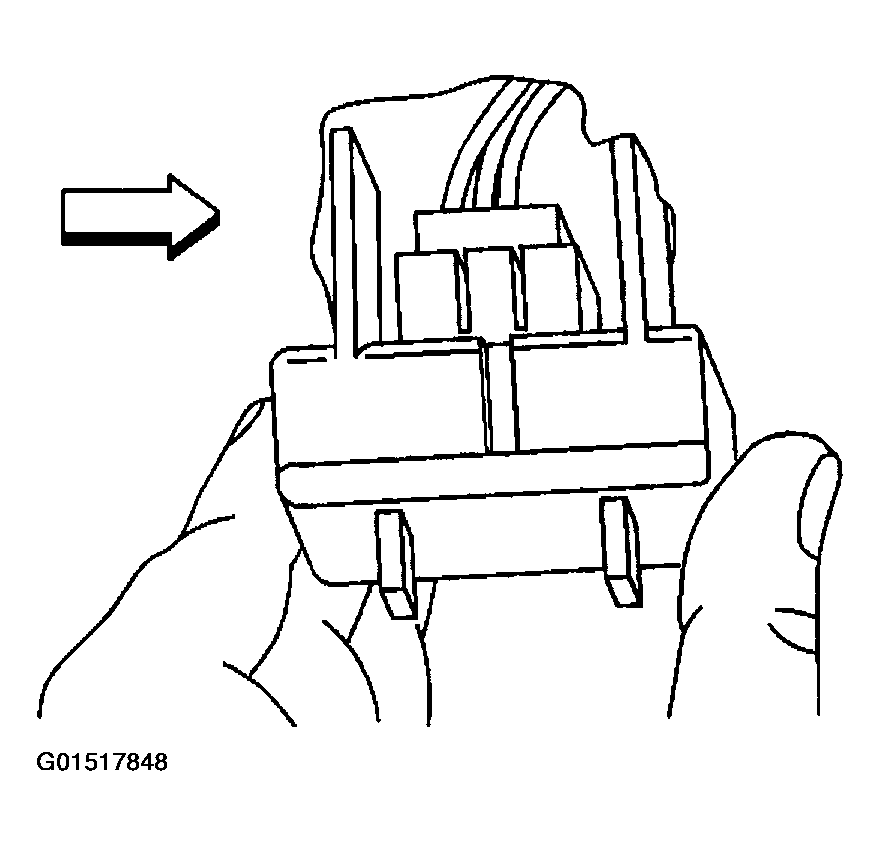

    Fig 3: Disconnecting Electrical Connector From Information Center Telltale Assembly
    G01517848Courtesy of GENERAL MOTORS CORP.
