Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heat shield to the vehicle with new rivets.

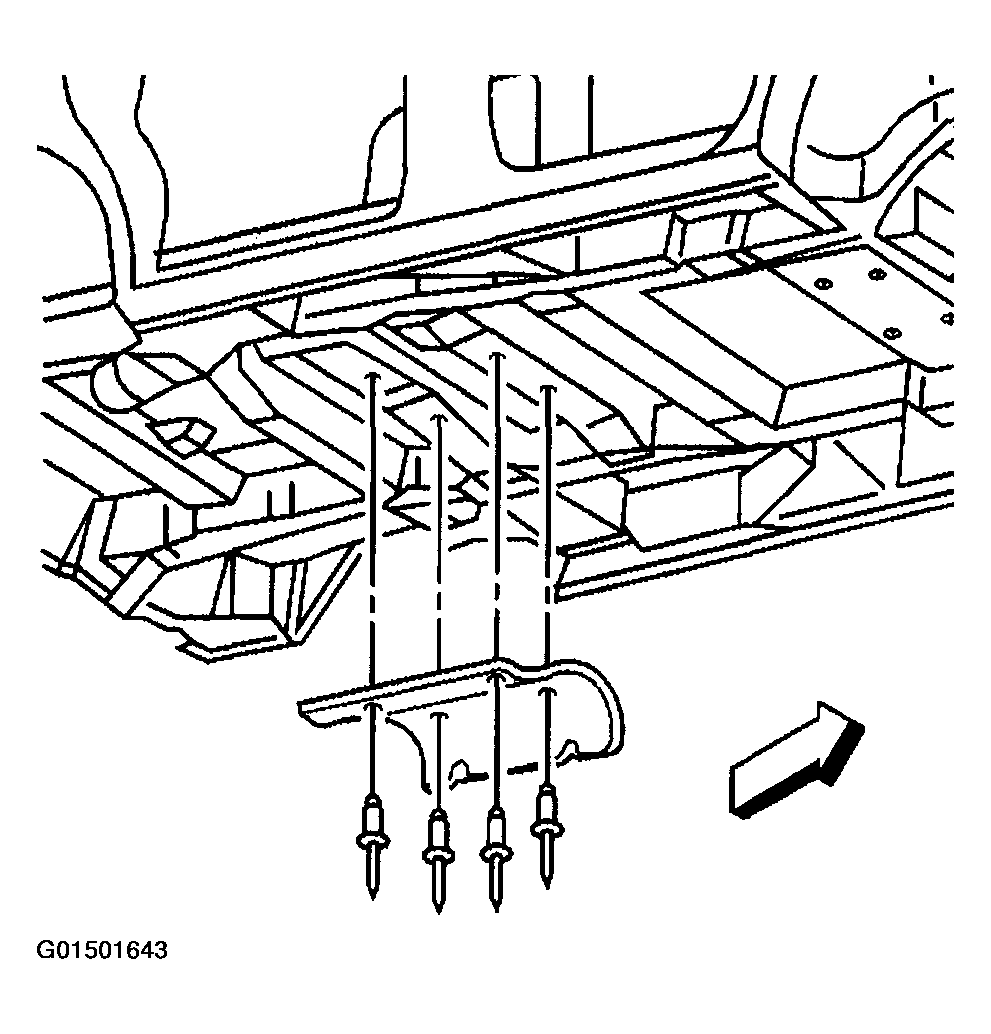

    Fig 1: Installing Heat Shield To Vehicle
    G01501643Courtesy of GENERAL MOTORS CORP.
  2. Connect the muffler to the catalytic converter. Refer to MUFFLER REPLACEMENT  .
  3. Lower the vehicle.
    Fig 2: Connecting Muffler To Catalytic Converter
    G01501644Courtesy of GENERAL MOTORS CORP.
