Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the catalytic converter hanger insulators from the catalytic converter.
  3. Remove the catalytic converter hanger bolts.
  4. Remove the catalytic converter hanger.

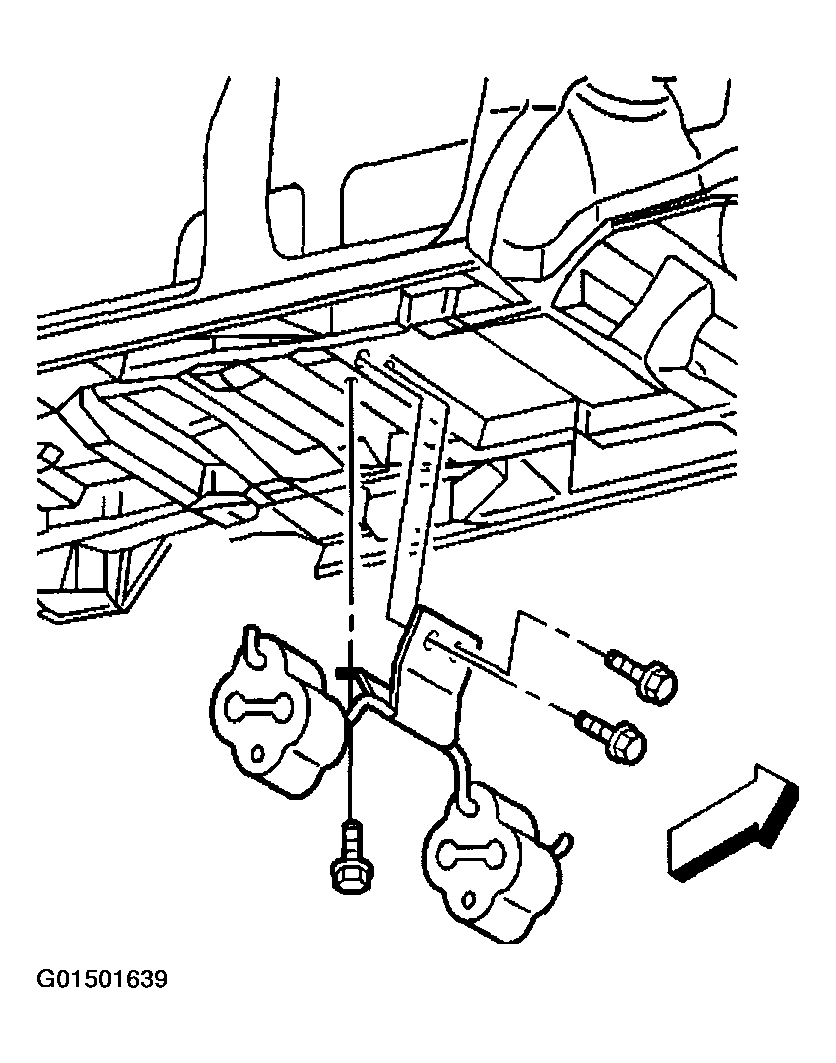

    Fig 1: Removing Catalytic Converter Hanger - Converter Hanger Assembly Replacement
    G01501639Courtesy of GENERAL MOTORS CORP.
