Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT  .
  3. Use a drill to remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

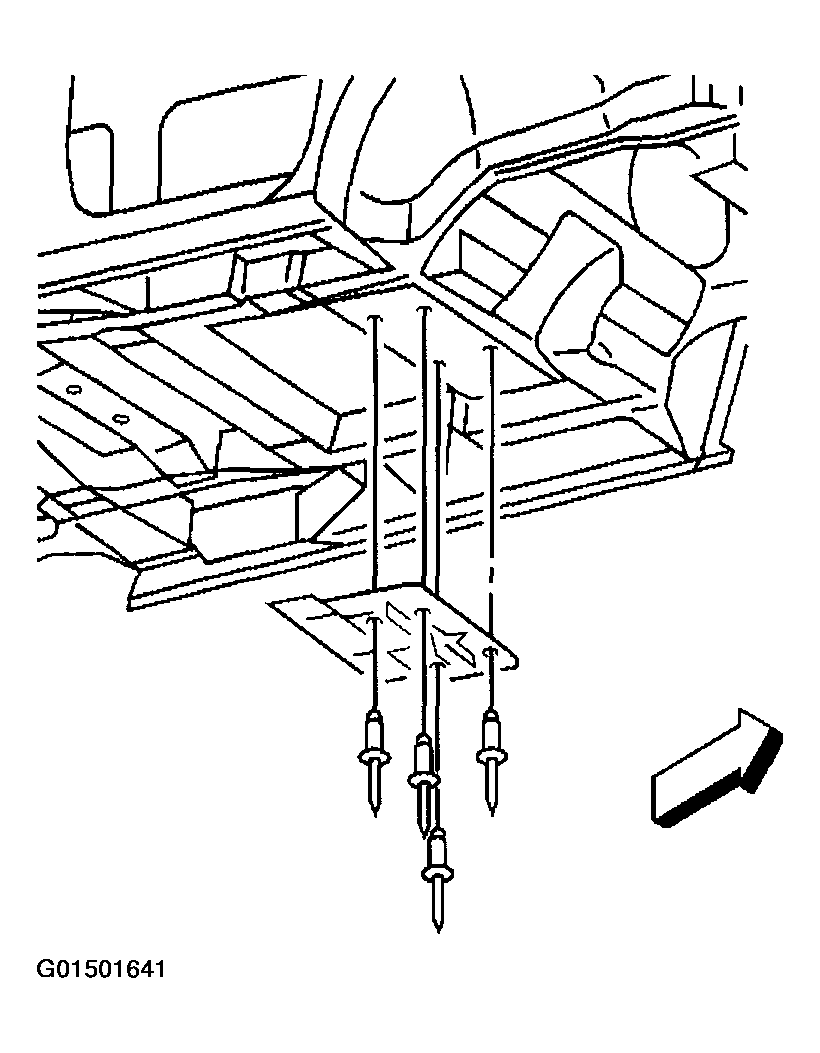

    Fig 1: Removing Catalytic Converter Heat Shield
    G01501641Courtesy of GENERAL MOTORS CORP.
