Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  .
  2. Remove the seal from the wiper motor driveshaft.
  3. Remove the liftgate access trim panel.
  4. Remove the rear wiper motor screws.
  5. Disconnect the rear wiper motor electrical connector.
  6. Remove the rear wiper motor from the liftgate.

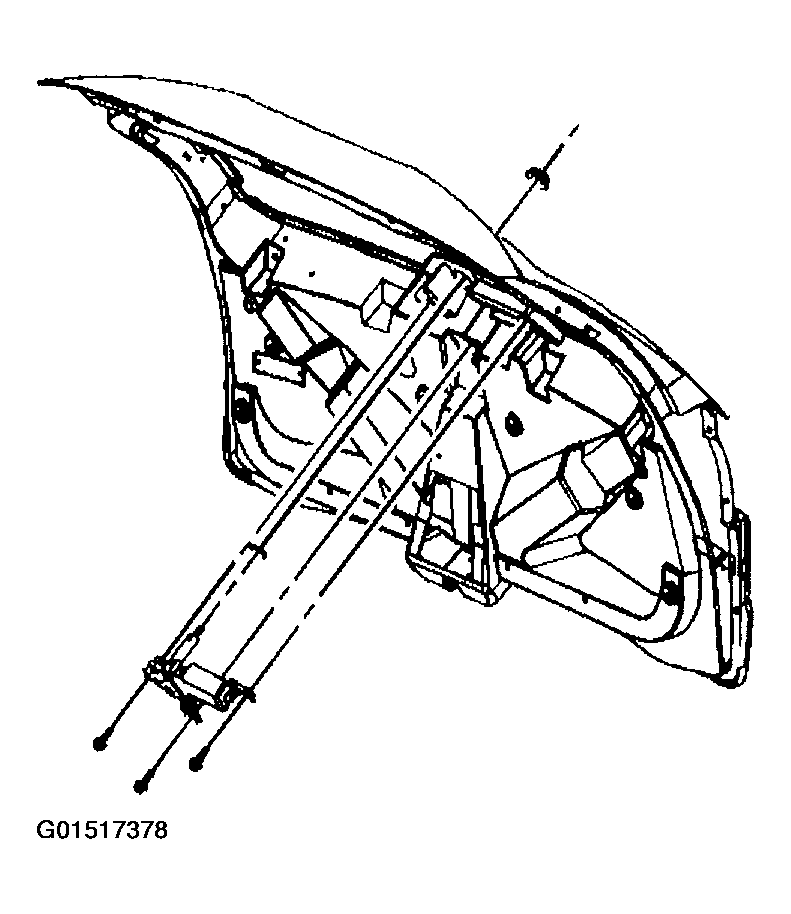

    Fig 1: Removing Rear Wiper Motor From Liftgate
    G01517378Courtesy of GENERAL MOTORS CORP.
