Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the rear wiper motor electrical connector.
  2. Position the rear wiper motor to the liftgate.
  3. Install the rear wiper motor screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Install the liftgate access trim panel.
  5. Install the seal onto the rear wiper motor driveshaft.
  6. Install the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  .

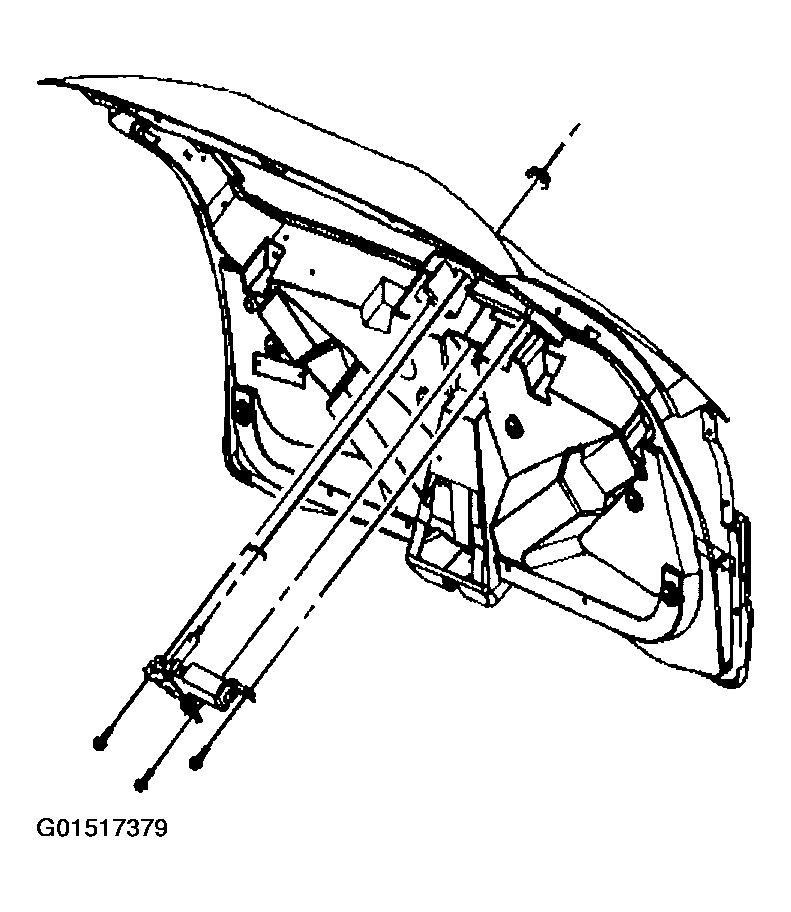

    Fig 1: Positioning Rear Wiper Motor To Liftgate
    G01517379Courtesy of GENERAL MOTORS CORP.
