Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper system drive module. Refer to WIPER MOTOR MODULE REPLACEMENT  .
  2. Remove the wiper motor cover screws.
  3. Remove the wiper motor cover from the wiper motor.

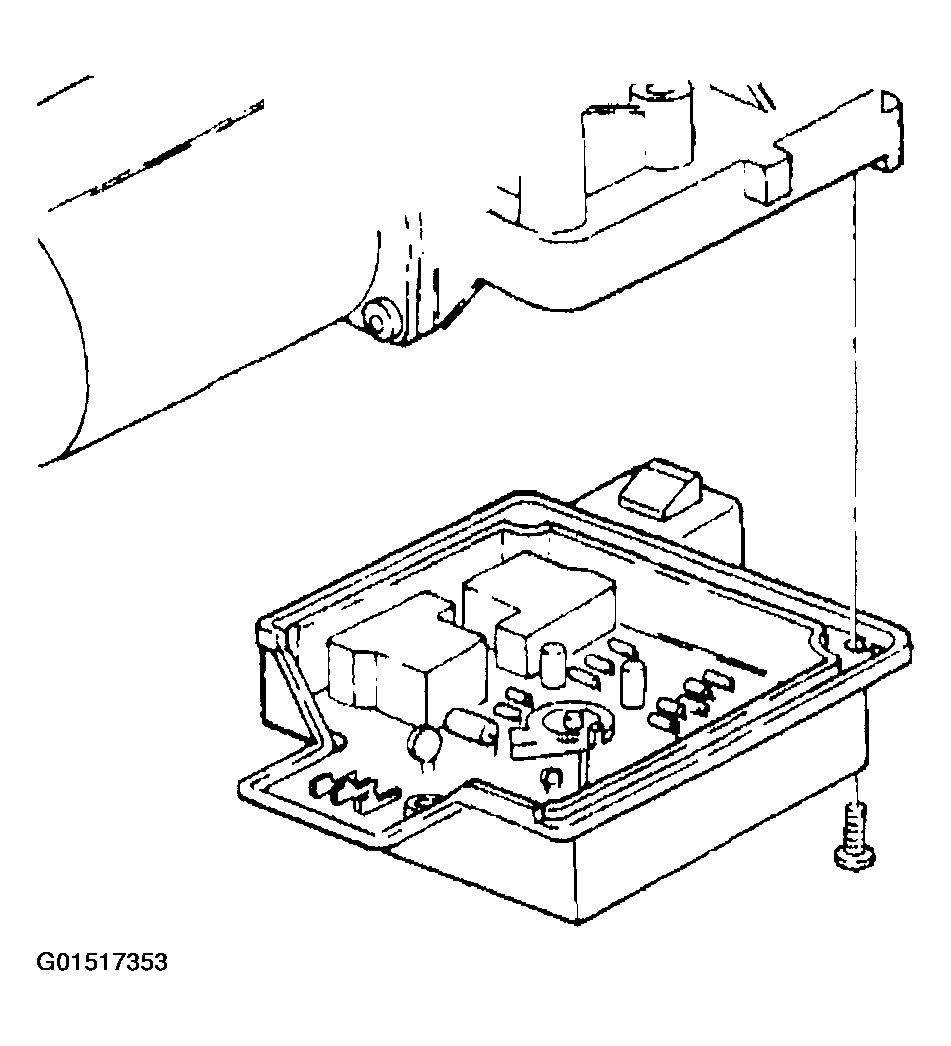

    Fig 1: Removing Wiper Motor Cover From Wiper Motor
    G01517353Courtesy of GENERAL MOTORS CORP.
