Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use tape or an erasable marker to mark position of wiper blade on the rear window.
  2. Remove the cap from the rear wiper arm.
  3. Remove the rear wiper arm nut.
  4. Using J 39822,  remove the rear wiper arm.
  5. Remove the rear wiper blade from the rear wiper arm. Refer to WIPER ARM BLADE REPLACEMENT - REAR  .

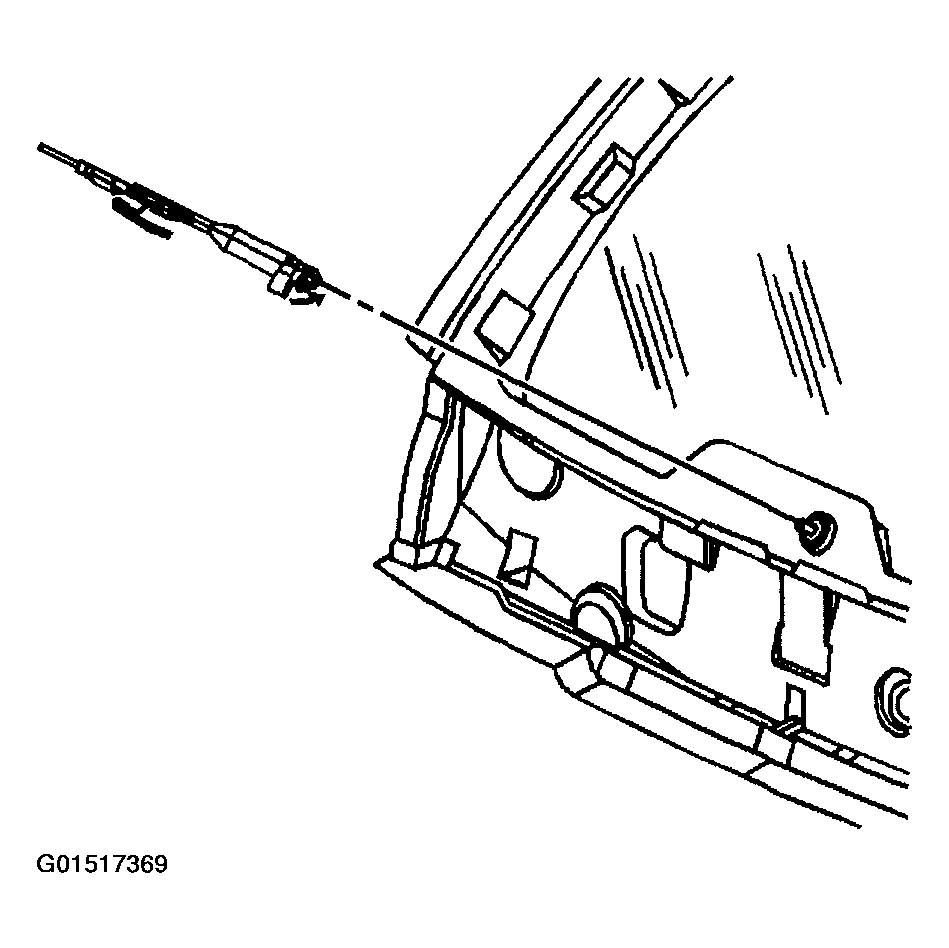

    Fig 1: Removing Rear Wiper Arm
    G01517369Courtesy of GENERAL MOTORS CORP.
