Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery.
Drain the washer solvent from the washer solvent container.
Disconnect the washer solvent container level sensor electrical connector.

Fig 1: Disconnecting Washer Solvent Container Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the rear washer pump electrical connector if equipped.
Disconnect the washer hose from the rear washer pump if equipped.

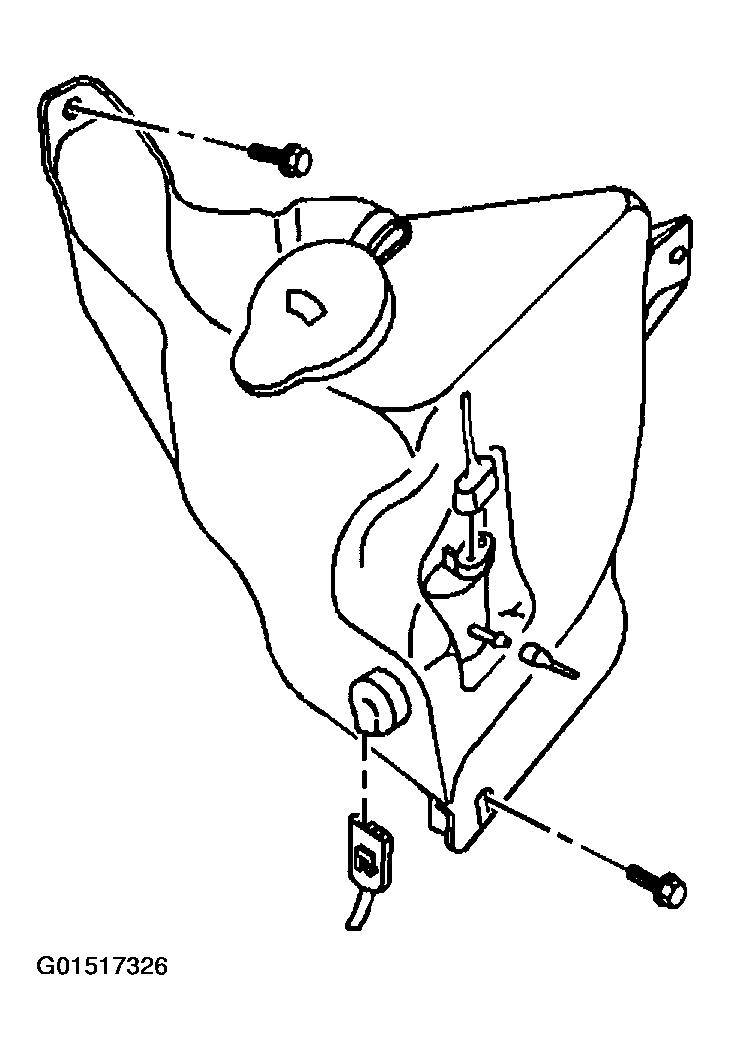

Fig 2: Disconnecting Rear Washer Pump Electrical Connector And Washer Hose
Courtesy of GENERAL MOTORS CORP.
Disconnect the front washer pump electrical connector.
Disconnect the front washer hose from the front washer pump.

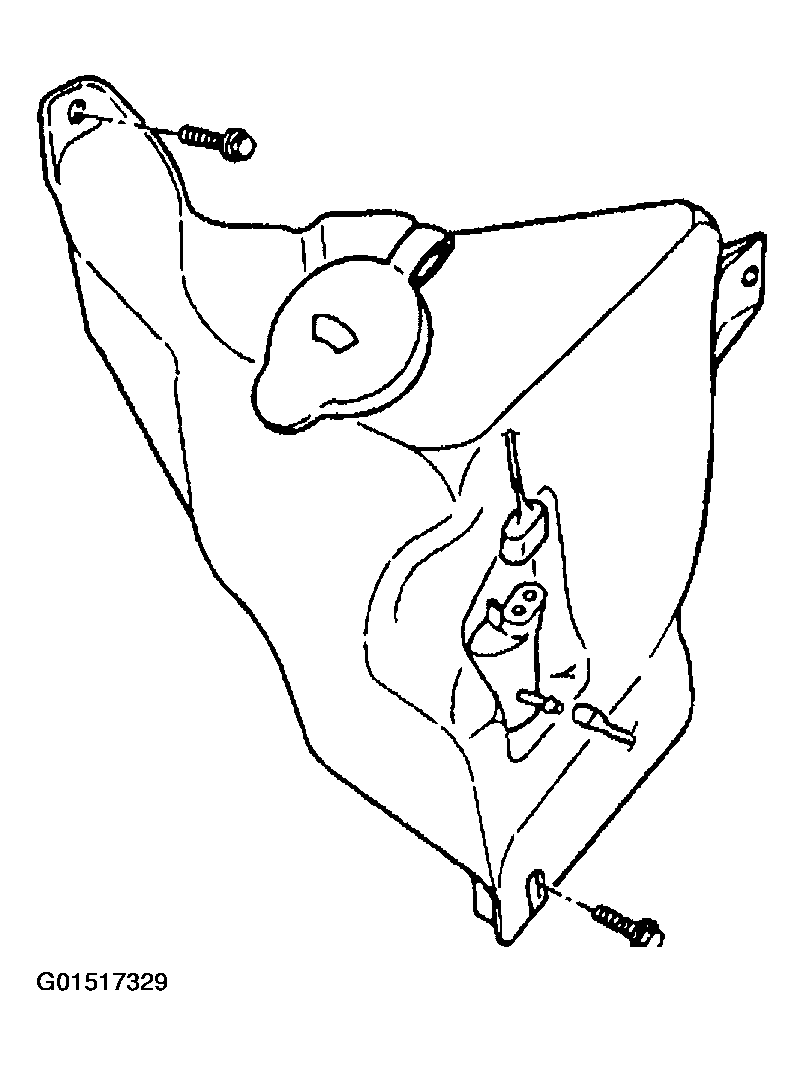

Fig 3: Disconnecting Front Washer Pump Electrical Connector And Front Washer Hose
Courtesy of GENERAL MOTORS CORP.
Remove the washer solvent container screws.
Remove the washer solvent container from the vehicle.

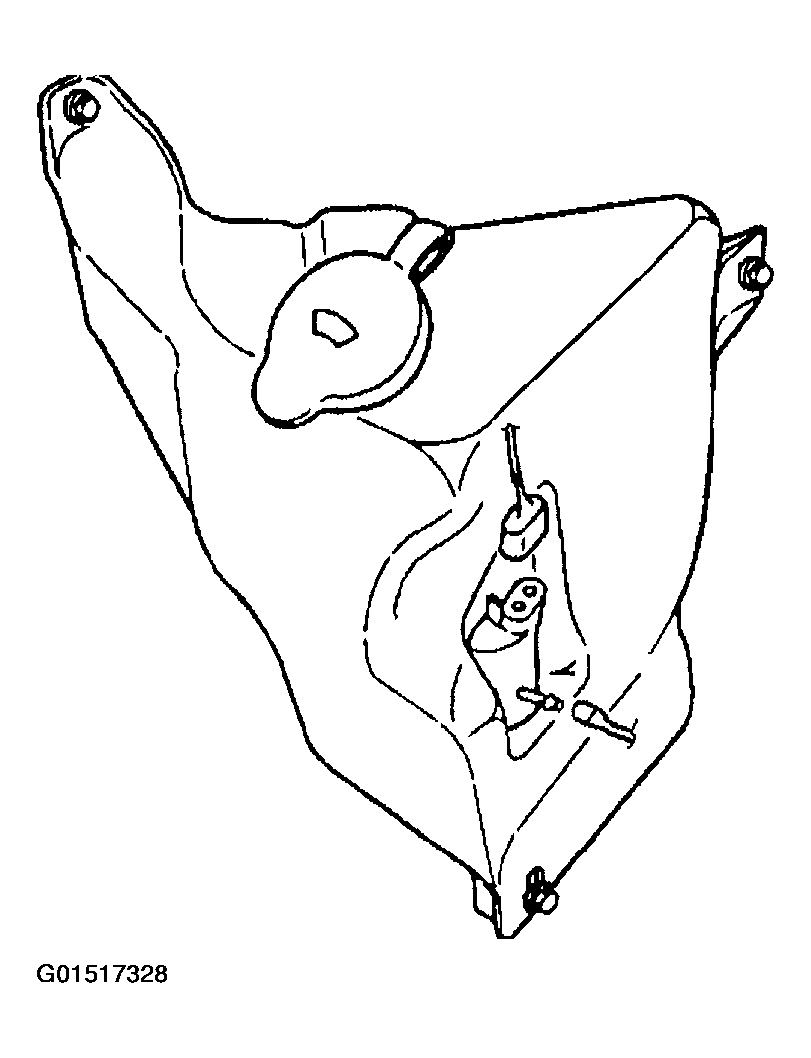

Fig 4: Removing Washer Solvent Container Screws
Courtesy of GENERAL MOTORS CORP.
