Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Drain the washer solvent from the washer solvent container.
Disconnect the front washer pump electrical connector.
Disconnect the front washer hose from the front washer pump.

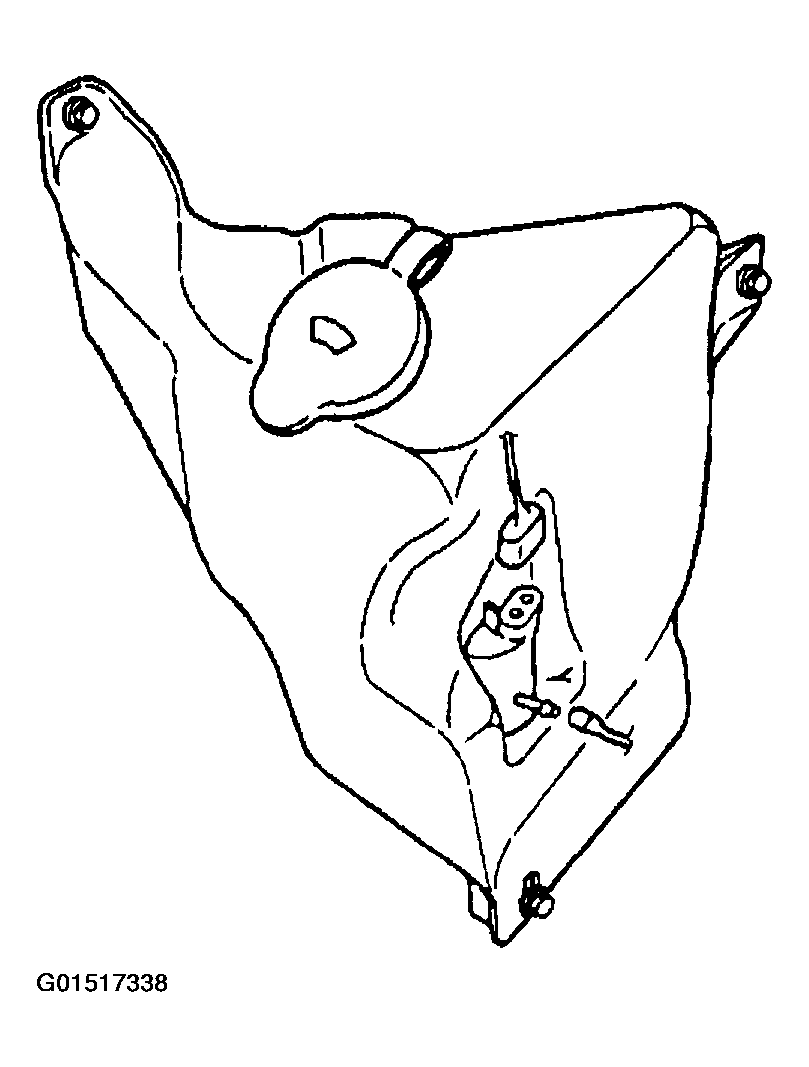

Fig 1: Disconnecting Front Washer Pump Electrical Connector And Front Washer Hose
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the front washer pump from the washer solvent container.

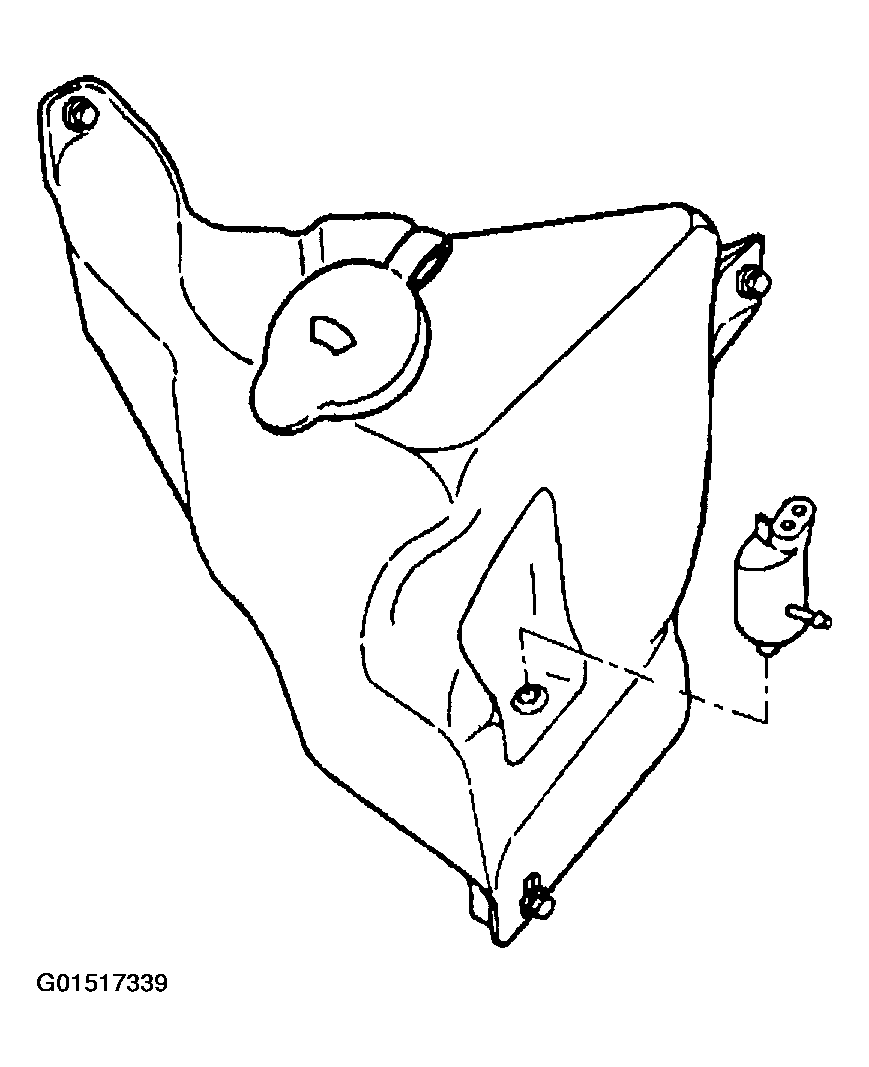

Fig 2: Removing Front Washer Pump
Courtesy of GENERAL MOTORS CORP.
