Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Drain the washer solvent from the washer solvent container.
  3. Disconnect the rear washer pump electrical connector.
  4. Disconnect the rear hose from the rear washer pump.
  5. Using a small flat-bladed tool, remove the rear washer pump from the washer solvent container.

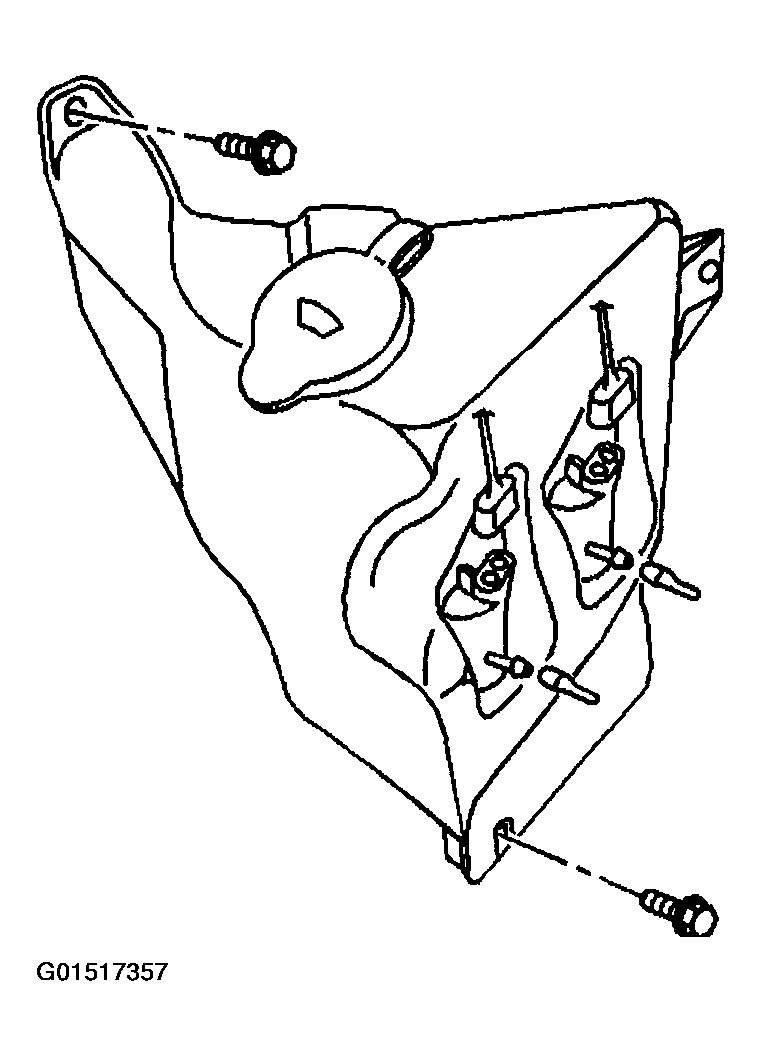

    Fig 1: Disconnecting Rear Washer Pump Electrical Connector And Rear Hose
    G01517357Courtesy of GENERAL MOTORS CORP.
