Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply tape to the area around the rear washer nozzle.
  2. Using a small flat-bladed tool, remove the rear washer nozzle from the liftgate.
  3. Remove the rear washer hose from the rear washer nozzle.
  4. Remove the rear washer nozzle from the liftgate.

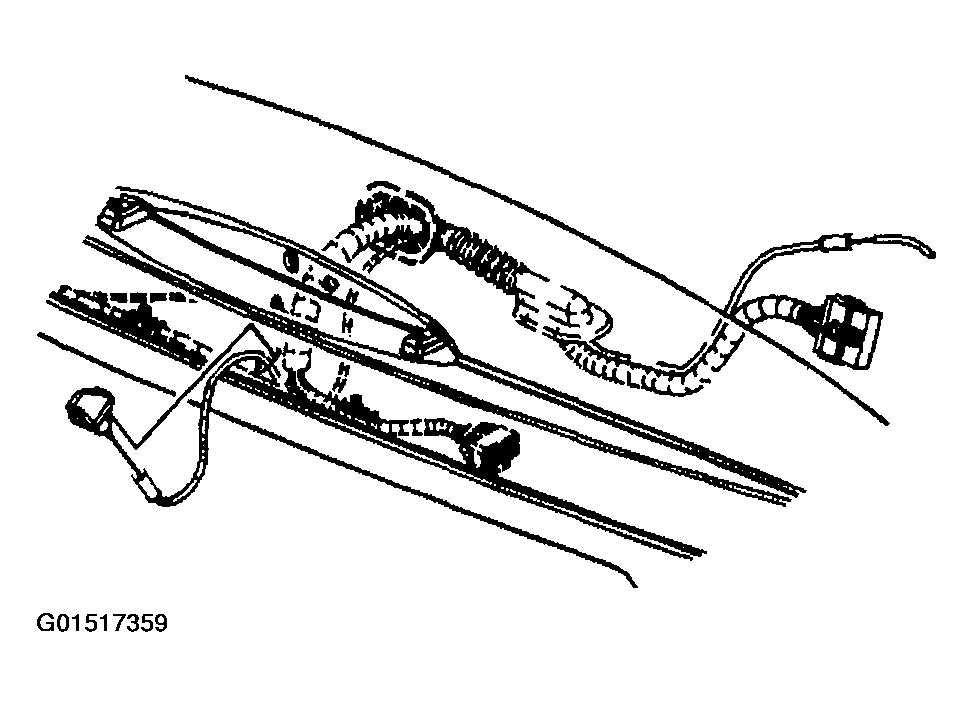

    Fig 1: Removing Rear Washer Nozzle From Liftgate
    G01517359Courtesy of GENERAL MOTORS CORP.
