Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  2. Remove the right cowl trim panel. Refer to TRIM PANEL REPLACEMENT -- COWL SIDE .
  3. Remove the right lower center pillar molding. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  4. Remove the right rear lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .
  5. Disconnect the rear washer hose from the rear washer pump.
  6. Remove the rear washer hose end out through the opening under the right side of the instrument panel.

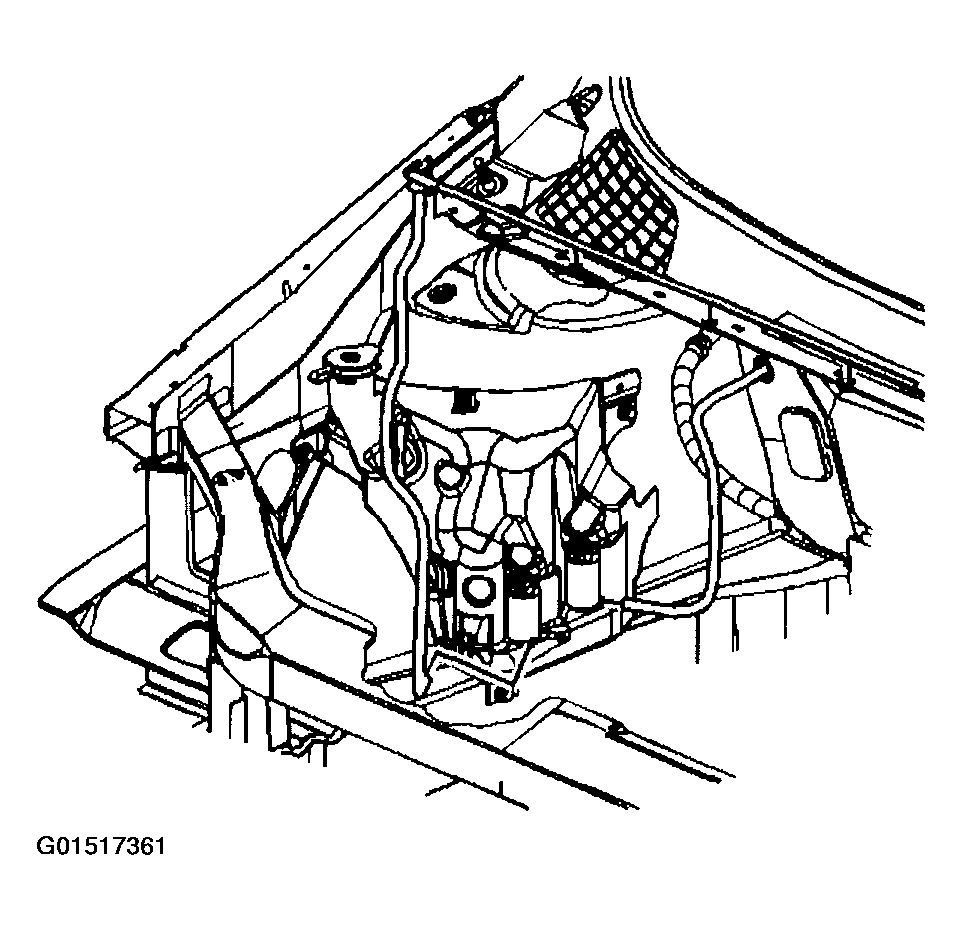

    Fig 1: Disconnecting Rear Washer Hose From Rear Washer Pump
    G01517361Courtesy of GENERAL MOTORS CORP.
  7. Remove the tape that secures the rear washer hose to the right sill area.

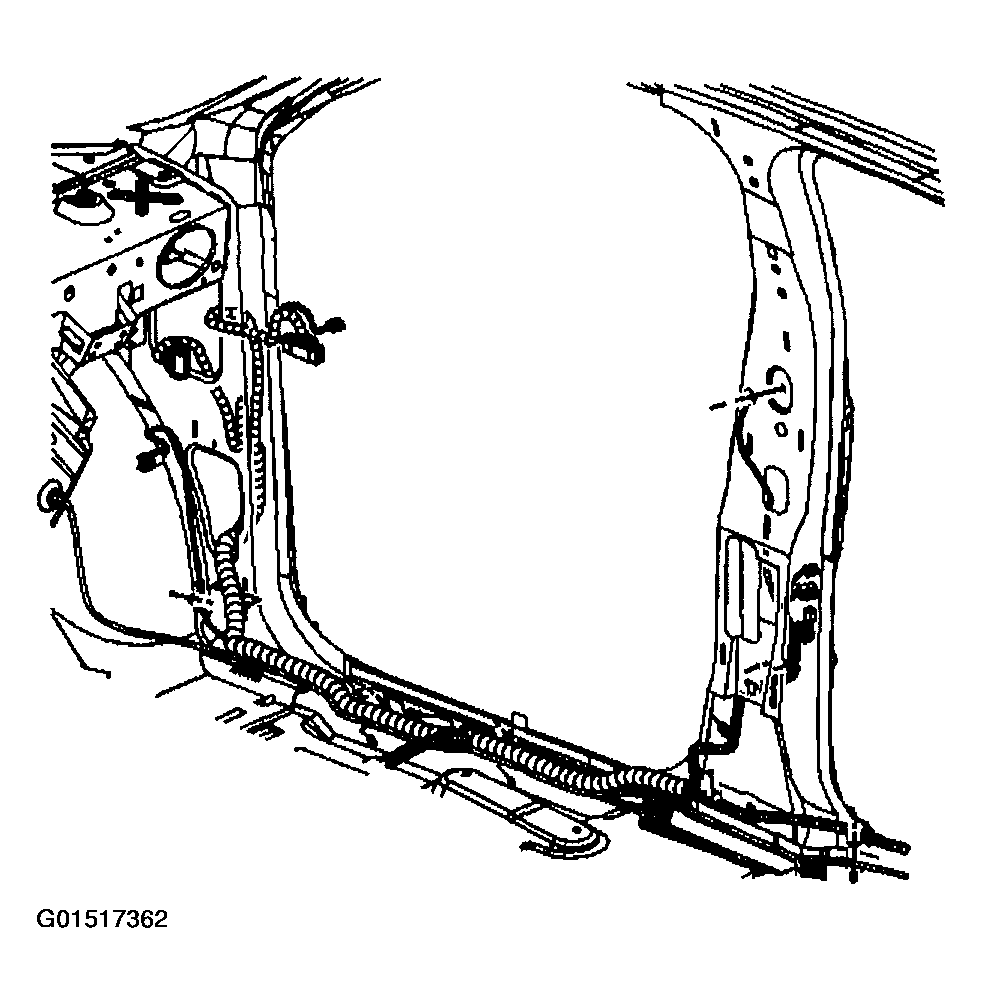

    Fig 2: Removing Rear Washer Hose From Right Sill Area
    G01517362Courtesy of GENERAL MOTORS CORP.
  8. Remove the tape that secures the rear washer hose to the right rear quarter panel area.
  9. Remove the rear washer nozzle. Refer to WASHER NOZZLE REPLACEMENT - REAR  .

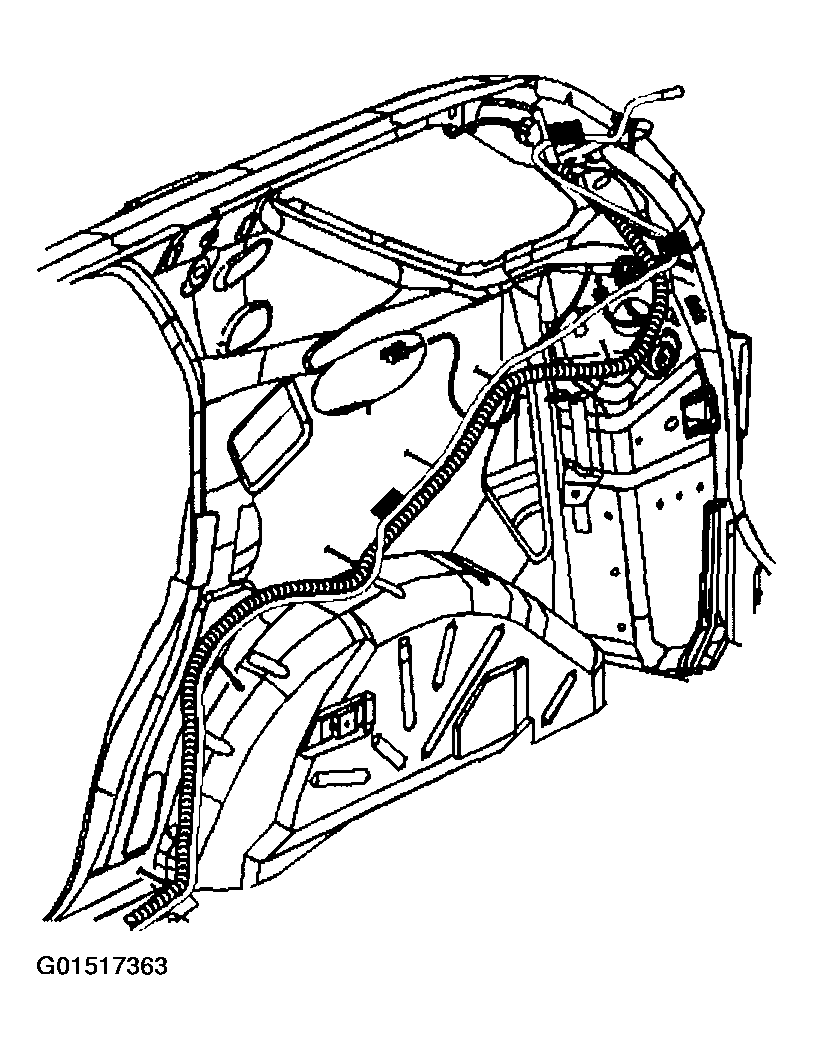

    Fig 3: Removing Rear Washer Hose From Right Rear Quarter Panel Area
    G01517363Courtesy of GENERAL MOTORS CORP.
  10. Pull the rear washer hose end out through the liftgate rubber conduit.
  11. Pull the rear edge of the headliner down to gain access to the rear washer hose.
  12. Remove the rear washer hose from inside of the rear roof panel.
  13. Remove the rear washer hose from the vehicle.

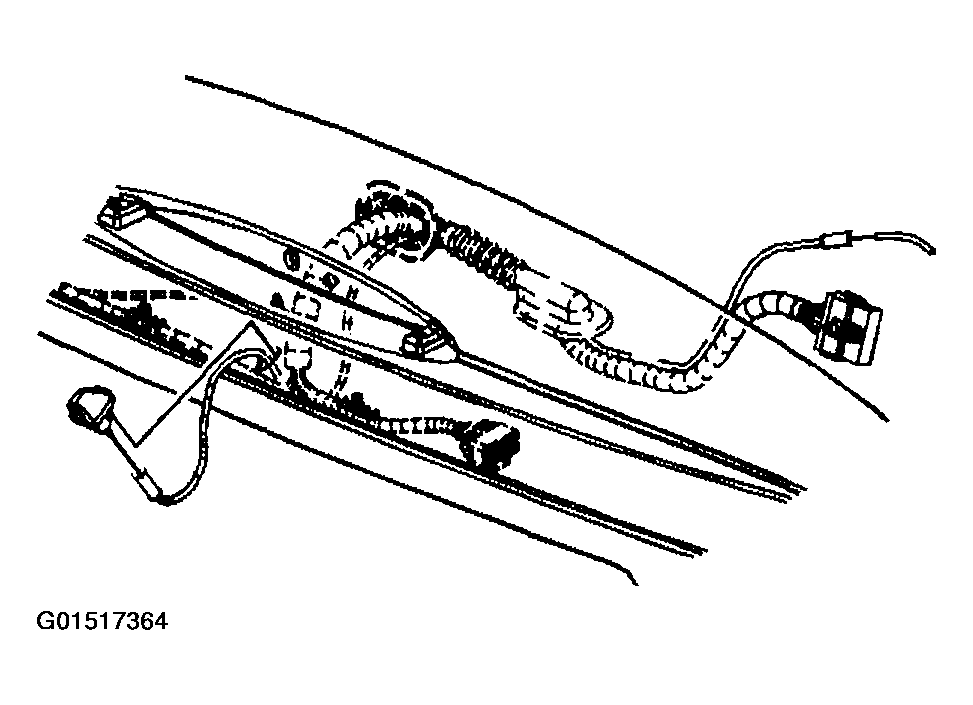

    Fig 4: Removing Rear Washer Hose From Vehicle
    G01517364Courtesy of GENERAL MOTORS CORP.
