Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the washer hose from the wiper arms.
  3. Disconnect the washer hose from the air inlet grille panel.
  4. Remove the washer hose grommet from the grille panel.
  5. Disconnect the washer hose from the washer solvent container neck.
  6. Disconnect the washer hose from the washer pump.
  7. Remove the washer hose from the vehicle.

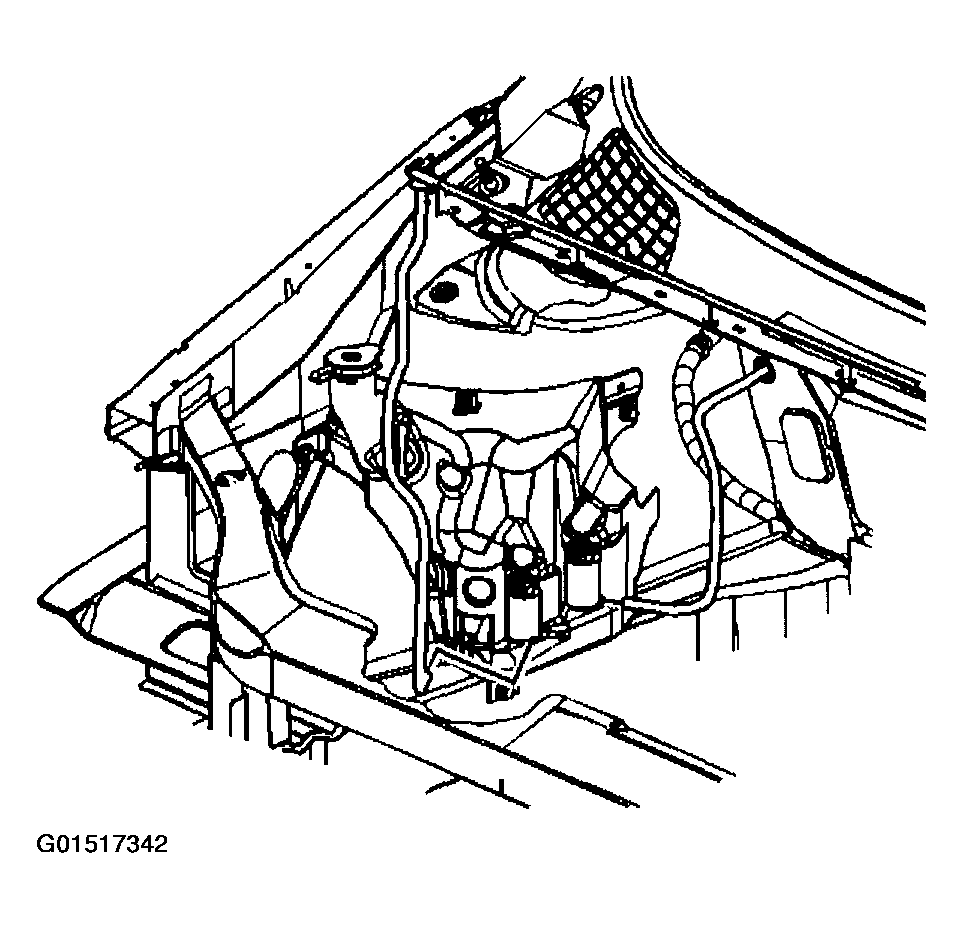

    Fig 1: Removing Windshield Washer Hose
    G01517342Courtesy of GENERAL MOTORS CORP.
