Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper blade from the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  .
  2. Remove the rubber wiper element from the element vertebra.

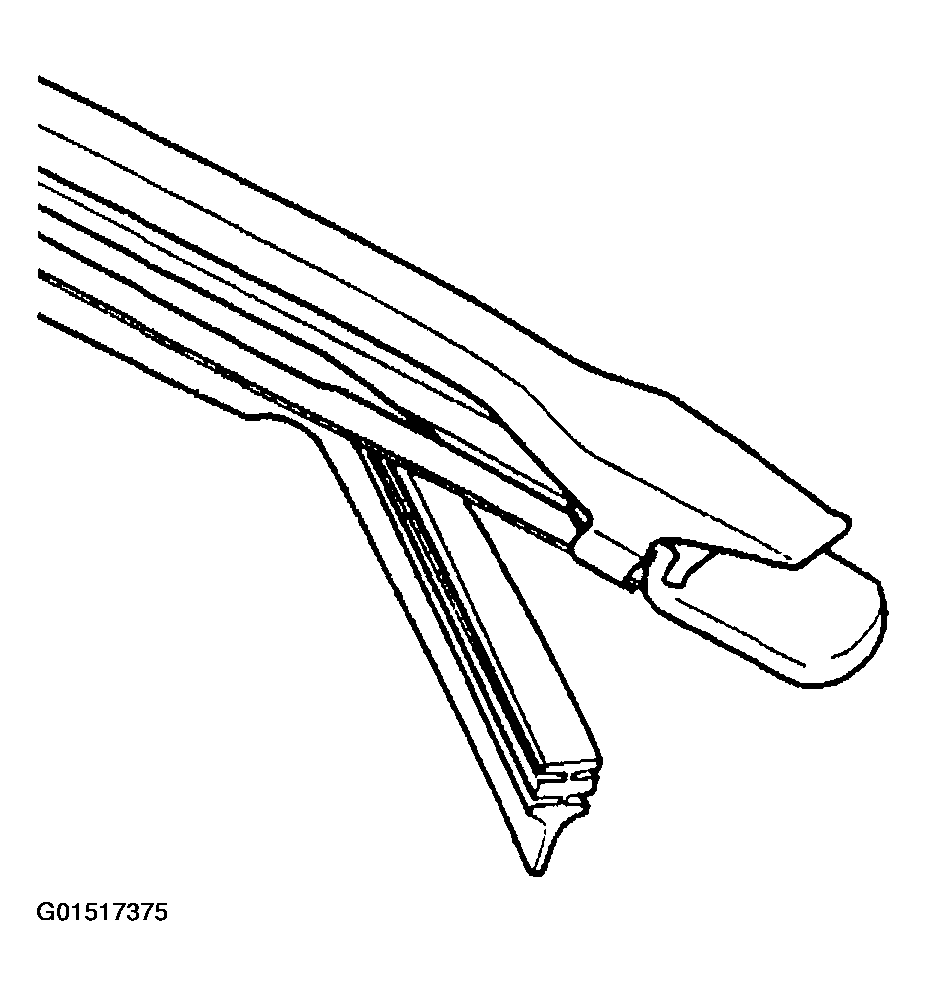

    Fig 1: Removing Rubber Wiper Element From Element Vertebra
    G01517375Courtesy of GENERAL MOTORS CORP.
  3. Remove the element vertebra and end cap from the rear wiper blade.
    Fig 2: Removing Element Vertebra And End Cap From Rear Wiper Blade
    G01517376Courtesy of GENERAL MOTORS CORP.
