Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center of the push-pin retainer from the rear seat back trim panel using a small flat-bladed tool.

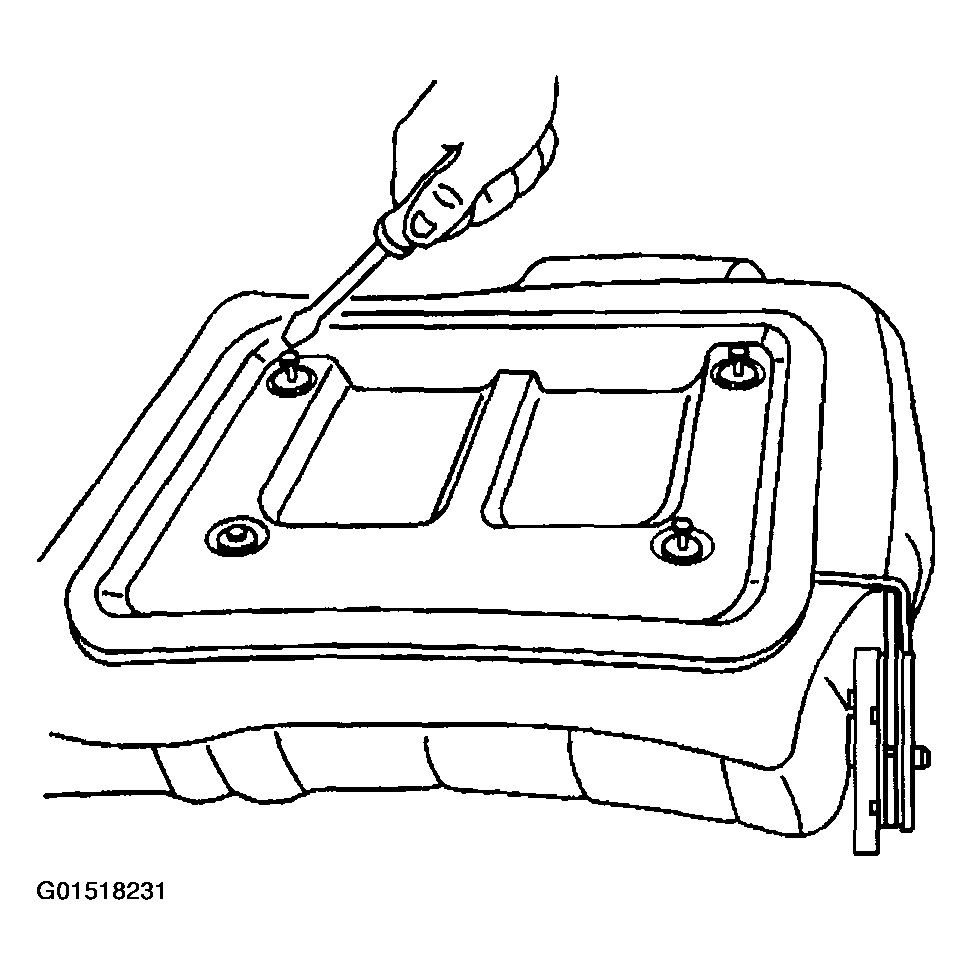

    Fig 1: Removing Center Of Push-Pin Retainer
    G01518231Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-pin retainer from the seat back trim panel.
    Fig 2: Removing Push-Pin Retainer From Seat Back Trim Panel
    G01518232Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat back trim panel from the rear seat back.

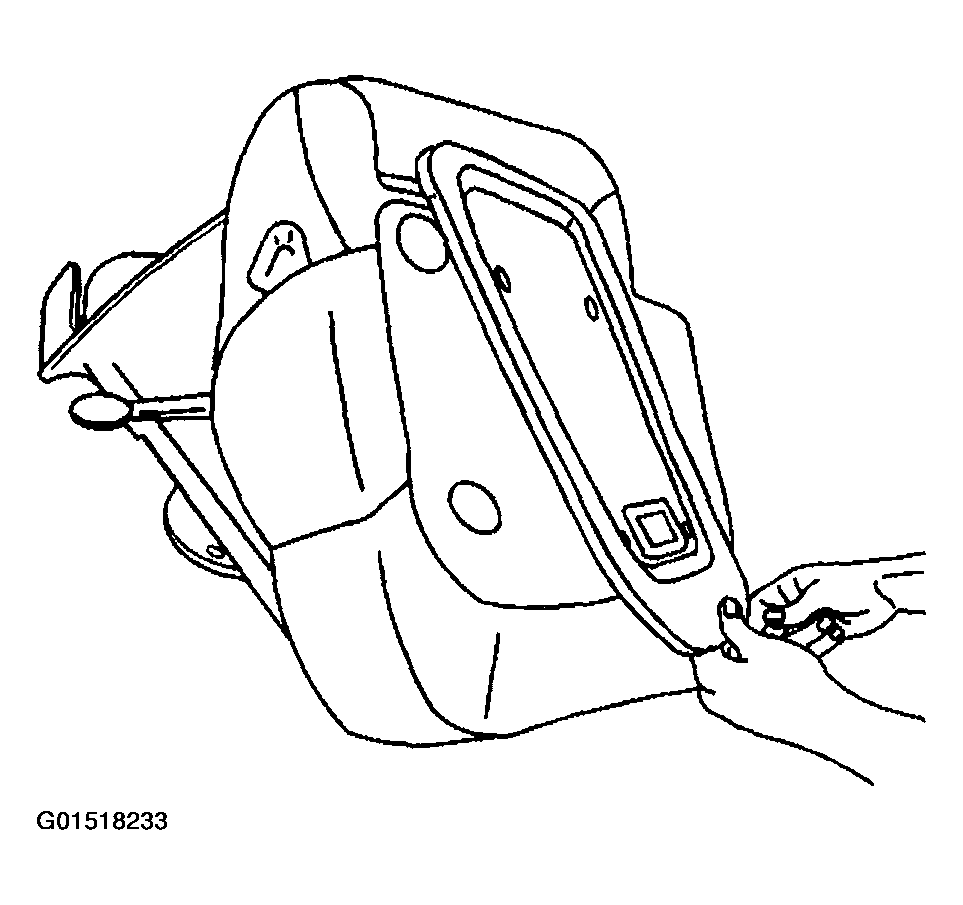

    Fig 3: Removing Seat Back Trim Panel From Rear Seat Back
    G01518233Courtesy of GENERAL MOTORS CORP.
