Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Place the seat back trim panel to the rear seat back.

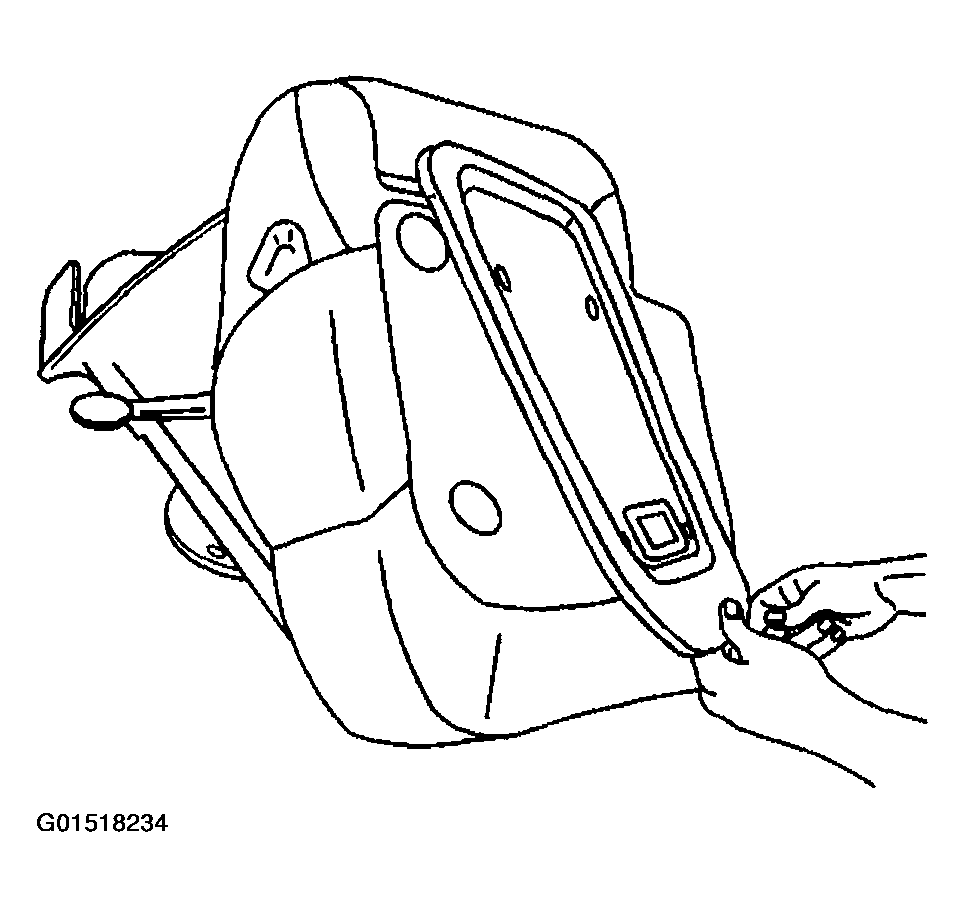

Fig 1: Placing Seat Back Trim Panel To Rear Seat Back
Courtesy of GENERAL MOTORS CORP.
Install the outer portion of the push-pin retainer to the seat back trim panel.

Fig 2: Installing Outer Portion Of Push-Pin Retainer To Seat Back Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the push-pin retainer pressing into place until fully seated.

Fig 3: Installing Push-Pin Retainer
Courtesy of GENERAL MOTORS CORP.
